GH3044 Alloy Description
Gnee Alloy GH3044 Alloy Description
GH3044 is a nickel-chromium-based, solid-solution strengthened superalloy designed for long-term high-temperature service up to 900°C. It offers excellent oxidation resistance, high ductility, and superior thermal fatigue performance, with short-term heat resistance reaching 1000°C.
Its mechanical properties combine moderate high-temperature strength with high ductility, ensuring reliability under extreme thermal cycling conditions. Additionally, it exhibits excellent cold-forming and welding characteristics, facilitating fabrication into complex components. Typical applications span the aerospace sector (aero-engine main combustion chambers, guide vanes, afterburners, and fuel conduits), industrial equipment (high-temperature furnace components and heat treatment equipment), and the nuclear industry (high-temperature structural components requiring corrosion and oxidation resistance).
Available product forms include cold-rolled and hot-rolled sheets/plates, seamless tubing, round bars, and forgings, which can be procured according to specific requirements.
Equivalent grades for GH3044
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| GH3044 | - | - | - | NA 11 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Available forms of GH3044
Contact our experts to recommend the right alloy for your project
high temperature GH3030 Alloy Specification
| Parameter | GH3044 (GH44) |
|---|---|
| Material Type | Ni-Cr based solid-solution strengthened wrought superalloy |
| Product Forms | Cold-rolled sheet, hot-rolled plate, strip, bar, wire, seamless tube, rings |
| Typical Applications | Aero-engine main combustion chambers and afterburner components, heat shields, guide vanes, mounting flanges, ducts |
| Service Temperature | Long-term service up to 900°C |
| Strengthening Mechanism | Solid-solution strengthening (high W content, with minor Al and Ti) |
| Weldability | TIG welding, spot welding, seam welding, brazing; can be welded to 1Cr18Ni9Ti, GH1140, GH3030, GH3039 |
| Magnetic Properties | Non-magnetic |
| Applicable Standards | GJB 1952, GJB 2612, GJB 3020, GJB 3165, GJB 3317, GJB 3318, GB/T 14992 |
Key Properties of GH3030 Alloy
Chemical composition of GH3044 alloy (wt%)
| Element | Content Range (wt%) | Role |
|---|---|---|
| Nickel (Ni) | Balance | Matrix element - provides high-temperature stability |
| Chromium (Cr) | 23.5 – 26.5 | Core oxidation resistance element - forms Cr₂O₃ protective film |
| Tungsten (W) | 13.0 – 16.0 | Core solid-solution strengthening element - enhances high-temperature strength |
| Iron (Fe) | ≤ 4.00 | Limited to maintain nickel-base characteristics |
| Molybdenum (Mo) | ≤ 1.50 | Secondary solid-solution strengthening |
| Aluminum (Al) | ≤ 0.50 | Oxidation resistance |
| Titanium (Ti) | 0.30 – 0.70 | Carbide stabilization |
| Carbon (C) | ≤ 0.10 | Grain boundary strengthening control |
| Manganese (Mn) | ≤ 0.50 | Deoxidation |
| Silicon (Si) | ≤ 0.80 | Deoxidation |
| Phosphorus (P) | ≤ 0.013 | Strictly controlled - ensures toughness and weldability |
| Sulfur (S) | ≤ 0.013 | Strictly controlled - ensures hot workability and weldability |
| Copper (Cu) | ≤ 0.07 | Impurity element control |
Physical Properties of GH3044 Alloy
| Property | Value | Unit |
|---|---|---|
| Density | 8.89 | g/cm³ |
| Melting Range | 1352 – 1375 | °C |
| Thermal Conductivity (100°C) | 11.7 | W/(m·K) |
| Specific Heat (100°C) | 440 | J/(kg·K) |
| Elastic Modulus (RT) | ~203 | GPa |
| CTE (20–100°C) | 12.25 × 10⁻⁶ | /°C |
| Magnetic Properties | Non-magnetic | - |
Click to download the GH3044 alloy PDF file now
High-temperature mechanical properties of GH3044
High-Temperature Tensile Properties (Typical)
| Temperature (°C) | UTS (MPa) | Elongation (%) |
|---|---|---|
| 20 (RT) | ≥ 750 | ≥ 40 |
| 900 | ≥ 190 – 200 | ≥ 30 |
High-Temperature Creep Rupture (900°C)
| Condition | Value |
|---|---|
| Stress σ=70 MPa | Rupture life ≥ 23 hours |
Oxidation Resistance (100h Exposure)
| Temperature (°C) | Oxidation Rate (g/m²·h) | Intergranular Oxidation Depth (mm) |
|---|---|---|
| 900 | 0.0971 | 0.016 |
| 1000 | 0.2050 | 0.080 |
| 1100 | 0.4320 | 0.110 |
| 1200 | 0.7880 | - |
Contact us for information on our GH3044 production process
GH3044 heat treatment process
| Product Form | Heat Treatment Process | Soaking Time |
|---|---|---|
| Hot-rolled plate, cold-rolled sheet, strip | 1120–1160°C / Air Cool (AC) | δ ≤ 3mm: 8–12 min; δ 3–5mm: 12–16 min |
| Bar, ring blank | 1120–1160°C / Air Cool (AC) | - |
| Ring forging | 1120–1160°C / AC or Oil Quench (OQ) | - |
Click to view the GH3044 heat treatment process curve
Three Core GH3044 Product Forms & Full Specifications
GH3044 Round Bar/Rod (Hot-Forged and Hot-Rolled)
Production Manufacturing Process
1. Smelting: VIM + ESR double melting process, ultra-low impurity segregation, uniform microstructure, eliminate internal shrinkage & porosity for high-temperature service safety
2. Hot Working: Two forming routes
3. Hot Rolling: For small & medium diameter bars (10mm–80mm), high production efficiency, uniform grain structure
4. Hot Forging: For large diameter billets over 80mm, optimized for heavy-load mechanical performance
5. Solution Heat Treatment: Solution annealing at 1140°C–1200°C rapid air cooling, fully dissolve alloy elements to maximize ductility & high-temperature strength
6. NDT Non-Destructive Testing: 100% UT ultrasonic inspection, MT magnetic particle testing, standard Class A internal flaw level for aerospace-grade delivery
7. Post-processing: Straightening, cutting to fixed/random length, customized surface treatment
Surface Treatment Options for GH3044 Rod
| Surface Finish | Craft & Feature | Application Scenarios |
|---|---|---|
| Black Rolled/Forged Surface | Hot rolling & forging without pickling, oxide black skin, lowest cost | Rough machining, secondary deep processing for heavy machinery |
| Peeled / Bright Surface | Centerless peeling removes surface oxide & decarburization, Ra ≤1.6μm, easy flaw inspection | General machinery, standard machined parts, mass production |
| Polished / Centerless Ground | Precision grinding on peeled blanks, tolerance up to h8/h9, Ra ≤0.8μm | High-precision CNC auto lathe parts, rotating shaft core components |
Dimensional Range
| Parameter | Specification |
|---|---|
| Diameter | Small bar: Φ10 – 35 mm; Medium bar: Φ40 – 120 mm; Large bar: Φ130 – 500 mm+ (custom forged billets available) |
| Length | Random length: 2000 – 5000 mm; Fixed length cuttable upon request (standard: 3000 mm) |
| Tolerance | Hot rolled: h10 / h11; Ground / polished: h8 / h9 |
Main Application of GH3044 Rod
Aerospace & Defense: Jet engine connecting rings, baffles, flame stabilizers, high-temperature fasteners
Power Gas Turbine: Gas turbine combustion chamber frames, support shafts, components working under 900–1100°C long-term thermal cycle
Industrial Furnace: Furnace roller, heat treatment fixture, high-temperature structural support under repeated heating & cooling
Petrochemical: High-temperature reactor internal parts, corrosion-resistant high-temperature pipeline supports
GH3044 Cold Rolled Sheet & Plate (Core Flat Product)
Production Flow
1. VIM+ESR double smelting to guarantee sheet uniformity, avoid plate cracking during high-temperature service
2. Multi-pass cold rolling: Thin gauge 0.05–3.0mm sheet via repeated cold rolling & intermediate solution annealing to eliminate internal stress
3. Solution Heat Treatment: 1150–1200°C solution treatment + rapid water cooling, deliver ultimate ductility & high-temperature oxidation resistance
4. Leveling & Cutting: Precision leveling to ensure flatness; laser cutting service for customer drawing exact blank shapes
5. Surface finishing & quality inspection
Standard Surface Finishes for GH3044 Sheet
| Surface Grade | Appearance & Craft | Typical Usage |
|---|---|---|
| 2B Finish (Cold Rolled, Annealed & Pickled) | Matte grey uniform surface | Most popular export grade, aerospace combustion liners, easy forming & welding |
| Bright Annealed (BA) | Mirror bright oxide-free surface under inert atmosphere annealing | Precision thin sheet for high-cleanliness aerospace thermal shielding parts |
| No.1 Hot Rolled Annealed & Pickled | Matte dark oxide-free surface | Heavy plate over 4mm, industrial furnace bulk lining, thermal shield panels |
| Sand Blasted / Shot Peened | Uniform matte rough surface | Thermal barrier coating base, increase coating adhesion strength |
GH3044 Plate Dimensions and Specifications
| Parameter | Specification |
|---|---|
| Thickness | Cold rolled thin sheet: 0.05 – 3.0 mm; Hot rolled plate: 4.0 – 12.0 mm |
| Standard Width | 1000 mm / 1219 mm / 1500 mm |
| Compliance Standard | GB/T 14992, ASTM B435 (Hastelloy X equivalent comparison) |
Core Application of GH3044 Sheet
Aerospace Combustion Chamber Liners: Largest end-use market, jet engine flame tubes, afterburner heat shields
Gas Turbine Hot Section Parts: Transition pieces, high-temperature partition shields
Industrial Furnace & Heat Shield: Vacuum furnace lining, heat treatment fixture plates
High-Temp Heat Exchanger: Heat exchange components under continuous high-temperature oxidizing gas environment

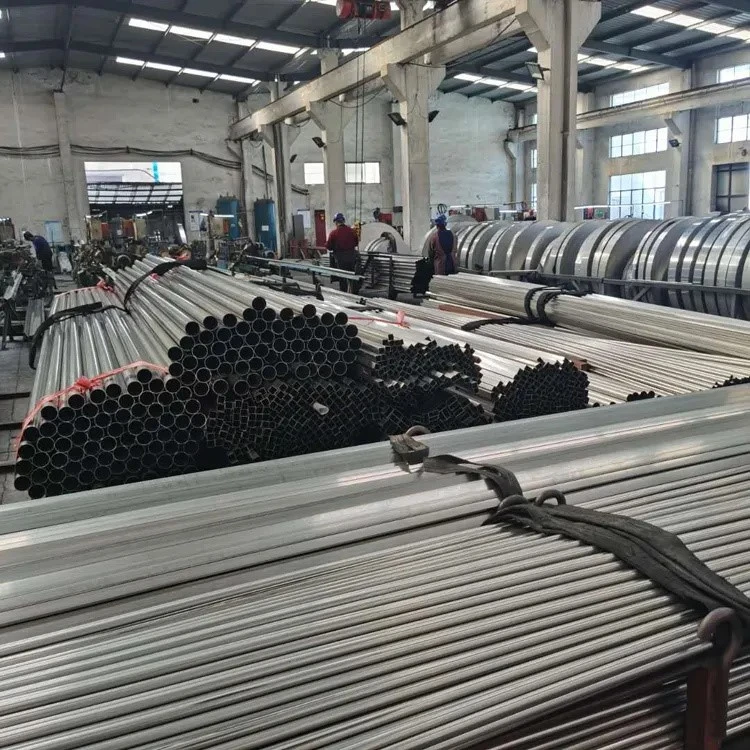

GH3044 Seamless Tube
Manufacturing Process
1. VIM+ESR double melting for consistent tube blank metallurgy, stable performance under 1000°C cyclic heating
2. Cold Working: Cold Pilger + Cold Drawing multi-pass forming, uniform wall thickness & smooth inner/outer surface
3. Solution Heat Treatment: 1120–1200°C annealing + rapid air/water quenching, fully release cold work stress
4. Full NDT Inspection: 100% ultrasonic & eddy current testing for tube wall defects
5. Surface polishing, precision length cutting, customized end processing
GH3044 Seamless Pipe Surface Options
| Surface Finish | Description | Typical Applications |
|---|---|---|
| Bright Annealed (BA) | Mirror finish, no surface oxide | Semiconductor & ultra-clean lab equipment |
| Pickled & Annealed (AP) | Matte grey pickled surface, cost-effective | Furnace & thermal equipment |
| Polished Tube | 180–600 grit mirror polish | Precision instrument outer shell |
GH3044 Seamless Pipe Size Range
| Parameter | Specification |
|---|---|
| Outer Diameter | Capillary tube: Φ10 – 30 mm; Thin wall tube: Φ30 – 140 mm; Heavy wall tube: Φ140 – 320 mm |
| Wall Thickness | 0.5 mm – 25 mm; Custom thin / thick wall available |
| Length & Tolerance | Custom fixed length; Tight dimensional tolerance per customer drawing |
Tube Application Fields
Advanced Furnace Industry: Furnace radiant tubes, heating element protection sleeves, 1200°C thermal shielding tubes
Instrument & Sensors: Thermocouple protection tubes, high-temperature probe casings
Environmental & Waste Treatment: High-temperature flue gas pipeline, thermal decomposition reactor liners
Semiconductor Manufacturing: Ultra-clean high-temperature process piping, diffusion furnace tubes
Automotive Performance Exhaust: High-temperature exhaust manifold & heat shielding pipes
Nickel Based Alloy GH3044 Packaging
GNEE Group Alloy GH3044 Product Packaging
GH3044 alloy Testing
| Test Category | Tube (GB/T 15062-2008) | Plate (GB/T 14995-2010) | Bar (HB 5437-1989) |
|---|---|---|---|
| Chemical Composition Analysis | Spectrometric / Chemical Analysis | Spectrometric / Chemical Analysis | Spectrometric / Chemical Analysis |
| Room-Temperature Tensile Test | GB/T 228.1 | GB/T 228.1 | GB/T 228.1 |
| High-Temperature Tensile Test | GB/T 4338 | GB/T 4338 | HB 5213 |
| Hardness Test | Brinell / Rockwell Hardness | Brinell / Rockwell Hardness | Brinell Hardness |
| Impact Test | - | - | Charpy Impact Test |
| Flattening Test | Mandatory | - | - |
| Flaring Test | Mandatory | - | - |
| Grain Size Examination | Metallographic Method | Metallographic Method | Metallographic Method |
| Intergranular Corrosion Test | Per standard requirement | Per standard requirement | - |
| Macro-Structure Examination | - | - | Mandatory (Acid Etching Test) |
| Ultrasonic Testing (UT) | Mandatory | As specified | As specified |
| Penetrant Testing (PT) | As specified | As specified | As specified |
| Eddy Current Testing (ET) | Tube-specific | - | As specified |
| Dimensional & Shape Inspection | Calipers/Micrometers/Gauges | Calipers/Micrometers | Calipers/Micrometers |
| Surface Quality Inspection | Visual (with magnification as required) | Visual (with magnification as required) | Visual (with magnification as required) |
Click to view actual photos of our GH3044 products
About Gnee Alloy
Fill in the inquiry form below or send your drawing & specification to our sales email for instant support:
Required information for accurate quotation: Product form (rod/sheet/tube), dimension, surface finish, order quantity, end application & target delivery country
Support free sample supply for performance testing before bulk order
Instant digital GH3044 material datasheet delivered after your inquiry submission
Ready to upgrade your high-temperature performance?
Gnee Alloy, a leading expert in GH3044 high-temperature alloys, offers more than just metal; we provide technological solutions and a reliable supply chain.
Fast Delivery: In-stock products ship within 7-10 days.
Quality Assurance: ISO 9001 certified production processes.
Global Logistics: Door-to-door delivery to over 50 countries.
Gnee Alloy GH3030 certificate
FAQ
Q1: Why choose GH3044 over GH4169 (718) for service at 900°C?
A: This is a classic selection error. While 718 is stronger at 600°C, it reaches its over-aging threshold at 750°C and softens rapidly. GH3044 is the "Red Zone Hero" because its strength comes from solid-solution elements (W, Mo) that do not dissolve at extreme heat, providing superior Structural Integrity.
Q2: Is GH3044 easy to weld for complex assemblies?
A: Absolutely. One of its greatest commercial advantages is its Superior Weldability. It is highly ductile and does not require complex post-weld aging heat treatments, significantly reducing your Custom Fabrication time and cost.
Q3: Can GH3044 handle sulfur-containing combustion gases?
A: Yes. Its high Chromium content (23.5-26.5%) provides a robust defense against oxidation and corrosion in various combustion atmospheres, making it ideal for afterburner manifolds.
Q4: Do you offer trial orders for prototype liners?
A: Yes. As a Reliable Supplier, we support aerospace and energy innovation. We offer Flexible MOQs on our in-stock inventory of standard gauges.
