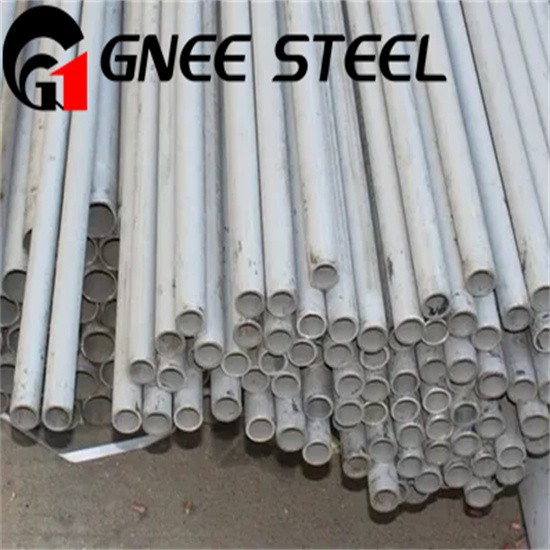

Incoloy Alloy 945X Tube
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of incoloy alloy 945x tube in China. If you're going to wholesale high quality incoloy alloy 945x tube made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Incoloy Alloy 945X alloy tubes have shown irreplaceable advantages in many high-end industrial fields due to their unique chemical composition, excellent physical and mechanical properties, excellent corrosion resistance and high temperature resistance. Through precise manufacturing processes and strict quality control, Incoloy Alloy 945X alloy tubes can meet the application requirements under various harsh conditions, providing important material guarantees for industrial production and scientific and technological progress.
Physical Properties
| Density | g/cm3 | 8.2 | |
|---|---|---|---|
| lb/in.3 | 0.296 | ||
| Melting Range | °F | 2317 - 2510 | |
| °C | 1270 - 1377 | ||
| Electrical Resistivity | ohm circ mil/ft | 663 | |
| μΩ-m | 1.10 | ||
| Permeability at 200 oersted (15.9 kA/m) | 1.003 | ||
| Young's Modulus (70°F) | 103 ksi | 29.1 | |
| GPa | 200.8 | ||
Mechanical Properties
| Typical mechanical properties of annealed and aged round bar of INCOLOY alloy 945X. Impact strength was determined at -75ºF. Impact strength for bar 3.5 inch diameter and larger were determined in the transverse orientation. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rod Size | Yield Strength (0.2% Offset) |
Tensile Strength | Elongation | Reduction of Area | Impact Strength | Hardness | Grain Size | ||||
| in | mm | ksi | MPa | ksi | MPa | % | % | ft•lb | joules | Rc | ASTM # |
| 1.0 | 25 | 143.8 | 992 | 182.8 | 1260 | 29.9 | 56.0 | 94 | 128 | 42 | 3.5 |
| 2.0 | 51 | 146.6 | 1010 | 184.9 | 1275 | 29.9 | 51.0 | 95 | 136 | 40.5 | 3.5 |
| 3.5 | 89 | 146.2 | 1008 | 177.6 | 1224 | 30.6 | 53.7 | 65 | 88 | 40.5 | 3.5 |
| 6.0 | 152 | 148.6 | 1025 | 179.6 | 1238 | 27.1 | 50.1 | 75 | 102 | 40 | 3 |
| 8.5 | 305 | 146.6 | 1011 | 179.5 | 1238 | 29.0 | 51.2 | 103 | 139.8 | 40.5 | 2.5 |
Hot Tags: incoloy alloy 945x tube, China incoloy alloy 945x tube suppliers, alloy piping, incoloy stainless pipe, Inconel alloy material, inconel alloy piping, inconel alloy ss tubing, high temperature alloy
