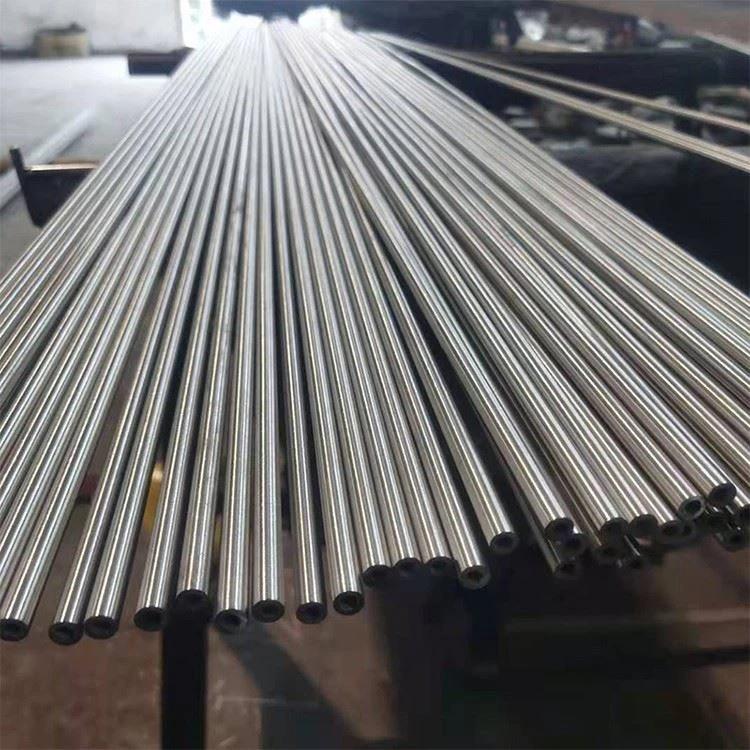

100Cr6 Bearing Steel Tube
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of 100cr6 bearing steel tube in China. If you're going to wholesale high quality 100cr6 bearing steel tube made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Bearing steel pipe refers to hot rolled or cold rolled (cold drawn) seamless steel pipe used for manufacturing ordinary rolling bearing rings. The outer diameter of the steel pipe is 25-180mm, and the wall thickness is 3.5-20mm, which can be divided into two types: ordinary precision and higher precision. Bearing steel is used to make balls, rollers and bearing rings. Bearing works under great pressure and friction, so bearing steel is required to have high and uniform hardness, wear resistance and high elastic limit.
The requirements for the uniformity of chemical composition, the content and distribution of non-metallic inclusions, and the distribution of carbides of bearing steel are very strict. It is one of the most stringent steel grades in all steel production.
Relevant Steel Specification of 100Cr6 Bearing Steel
| Country | USA | German | Japan | British |
| Standard | ASTM A295 | DIN 17230 | JIS G4805 | BS 970 |
| Grades | 52100 | 100Cr6/1.3505 | SUJ2 | 535A99/EN31 |
Chemical Composition of 100Cr6 Bearing Steel and Equivalents
| Standard | Grade | C | Mn | P | S | Si | Ni | Cr | Cu | Mo |
| ASTM A295 | 52100 | 0.93-1.05 | 0.25-0.45 | 0.025 | 0.015 | 0.15-0.35 | 0.25 | 1.35-1.60 | 0.30 | 0.10 |
| DIN 17230 | 100Cr6/1.3505 | 0.90-1.05 | 0.25-0.45 | 0.030 | 0.025 | 0.15-0.35 | 0.30 | 1.35-1.65 | 0.30 | – |
| JIS G4805 | SUJ2 | 0.95-1.10 | 0.50 | 0.025 | 0.025 | 0.15-0.35 | – | 1.30-1.60 | – | – |
| BS 970 | 535A99/EN31 | 0.95-1.10 | 0.40-0.70 | – | – | 0.10-0.35 | – | 1.20-1.60 | – | – |
