Alloy 718 (UNS NO7718) is a high-quality nickel-based superalloy crucial for high-pressure, high-temperature (HPHT) and sulfur-containing (H2S/CO2) oil and gas environments, exhibiting exceptional strength, corrosion resistance, and fatigue resistance. Typically, this alloy achieves a hardness of up to 40 HRC after heat treatment, meeting NACE MRO175/ISO 15156 standards to prevent stress corrosion cracking. It is widely used in downhole tools, wellhead components, valves, and packers.
What are the differences between Inconel 718 and 825 alloys?
These two alloys also differ in their machinability; due to its lower hardness, 718 is easier to machinable than 825. Furthermore, Inconel 718 has a higher tensile strength than 825, making it more suitable for applications requiring high strength under high temperatures or pressures.
In the high-risk field of oil and gas extraction, equipment failure can mean millions of dollars in lost revenue or environmental disaster, so the materials used must be specially designed to withstand extreme conditions. One alloy has become the material of choice for critical components: alloy 718. This high-strength nickel-based superalloy combines excellent mechanical strength, corrosion resistance, and high-temperature performance, making it the dominant material in offshore, subsea, and high-pressure high-temperature (HPHT) oil well applications.
Performance of Alloy 718 in Oil and Gas Applications
Performance of Alloy 718 in Oil and Gas Applications
Excellent resistance to hydrogen sulfide and chloride corrosion
Alloy 718 fully complies with the following standards:
NACE MR0175 / ISO 15156, international standard for materials used in hydrogen sulfide-containing environments.
API 6A CRA (Corrosion-resistant Alloys) standard, suitable for subsea and wellhead applications.
It exhibits excellent corrosion resistance, including resistance to general corrosion, crevice corrosion, and pitting corrosion, and can operate reliably in brine, acidic gas, and chloride-rich environments without the need for protective coatings or frequent maintenance.
For more information or to request a product data sheet, please visit our Alloy 718 product page.
High strength and fatigue resistance
Alloy 718 maintains excellent mechanical properties even at high temperatures.
Key mechanical properties:
Yield strength: Approximately 1030 MPa at room temperature.
Creep fracture strength: Approximately 700 MPa at 650°C.
Fatigue strength: Rotating components reach 500+ MPa after 10⁷ cycles.
This makes it ideal for: Rotating equipment in surface facilities.
Downhole tools subjected to repeated tensile/compressive loads.
Dynamic seals, mandrels, and joints exposed to thermal and mechanical cycles.

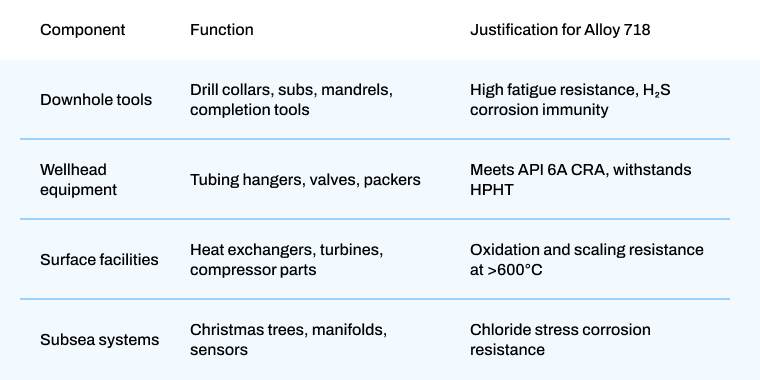

Typical applications of Alloy 718 in the oil and gas industry
Typical applications of Alloy 718 in the oil and gas industry
Conclusion: The Strategic Advantages of Alloy 718
Whether you are designing subsea manifolds, pipeline hangers, or compressor rotors, Gnee Steel's 718 alloy offers the uncompromising performance required in extreme oil and gas environments. Its combination of corrosion resistance, mechanical strength, regulatory compliance, and proven field performance makes it the material of choice for reliability and safety in the energy industry.
