In modern chemical processing, material failure is not merely a matter of operational delays, but also poses significant safety and economic risks. For purchasing managers and reactor designers, the biggest pain point is over-design.
Trap: Specifying top-tier material GH4169 (equivalent to Inconel 718) for every high-temperature nut, bolt, or manifold will unnecessarily drain your project budget. While GH4169's strength is unmatched, GH2132 (equivalent to Alloy A286) offers a perfect balance of industrial durability and cost-effectiveness in environments below 650°C.
At Gnee Steel, we help you match metallurgical specifications to actual stresses, ensuring you get a cost-effective solution without compromising structural integrity.
Obtain volume pricing for GH2132 and GH4169
Comparison of GH4169 and GH2132 (A286) alloy pipes for the chemical industry
Comparison of GH4169 and GH2132 (A286) alloy pipes for the chemical industry
GH4169 alloy tubes (equivalent to Inconel 718) and GH2132 seamless tubes (equivalent to A286) are both high-performance high-temperature alloys used for piping in harsh environments, but their composition, strength, and cost differ significantly, making them suitable for various chemical industry applications. GH4169 round tubes are a nickel-based alloy designed for high-temperature and extremely high-strength applications; while GH2132 tubes are an iron-based alloy, providing a cost-effective solution for high-strength requirements at moderate temperatures.
What is the material GH2132?
GH2132 is a high-temperature alloy with iron (Fe), nickel (Ni) and chromium (Cr) as the main components, and its specific chemical composition is Fe-25Ni-15Cr, which is synthesized and strengthened by the addition of molybdenum (Mo), titanium (Ti), aluminum (Al), vanadium (V), and trace boron (B).
Information on GH4169 and GH2132 (A286) alloy tubes

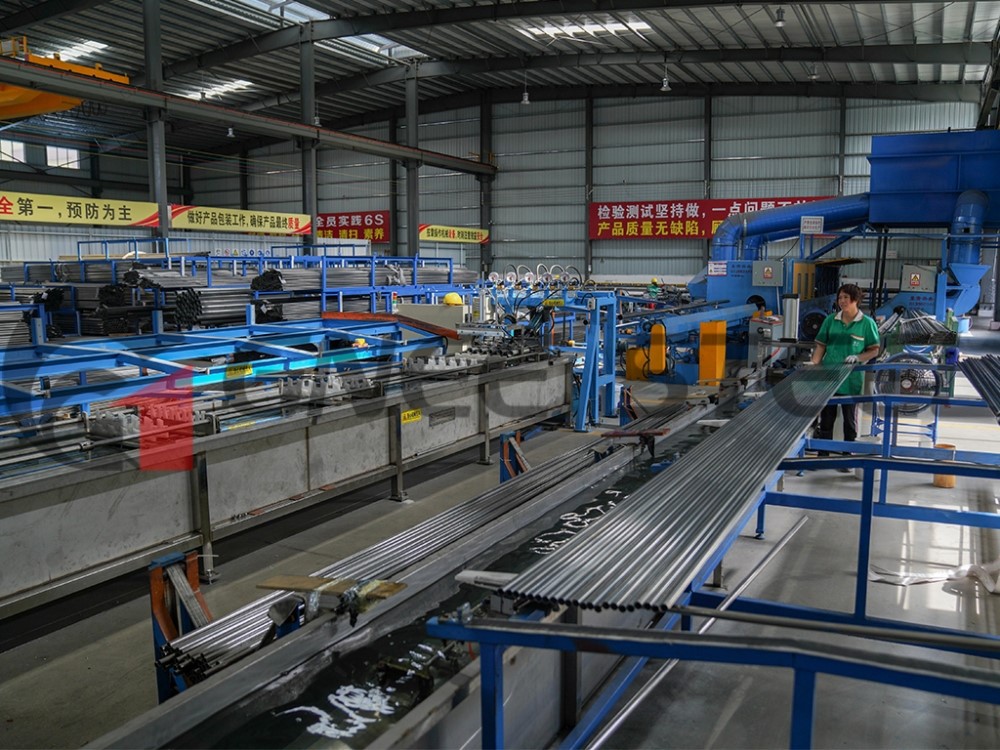

GH2132 (Alloy A286) Alloy Tube
GH2132 is an iron-nickel-chromium based precipitation-hardening superalloy. Because it has a lower nickel content than GH4169, it is significantly more affordable while still delivering elite performance.
Key Advantage: Excellent oxidation resistance and high strength up to 650°C (1200°F).

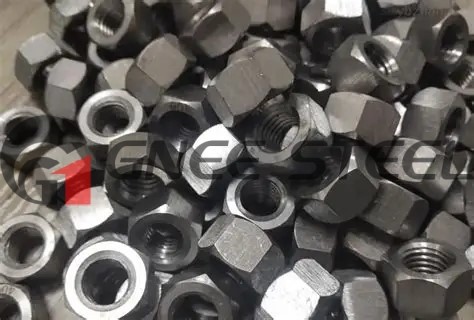

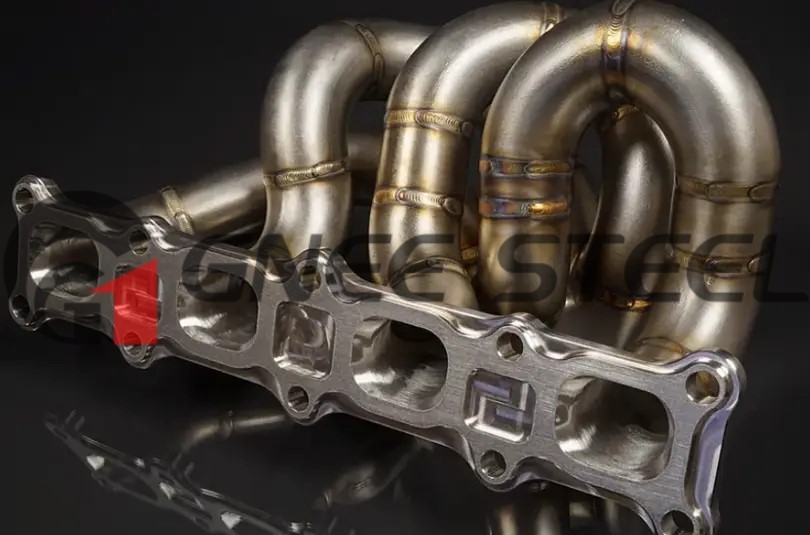

Best For: High-strength fasteners, bolts, nuts, exhaust manifolds, and low-pressure piping systems.
Strengthening: Primarily γ′ (Gamma Prime) phase via Titanium (Ti) additions.
GH4169 (Alloy 718) seamless Pipe
GH4169 is a nickel-chromium superalloy designed for the most punishing high-stress zones.
Key Advantage: Elite yield and creep-rupture strength up to 700°C (1292°F).

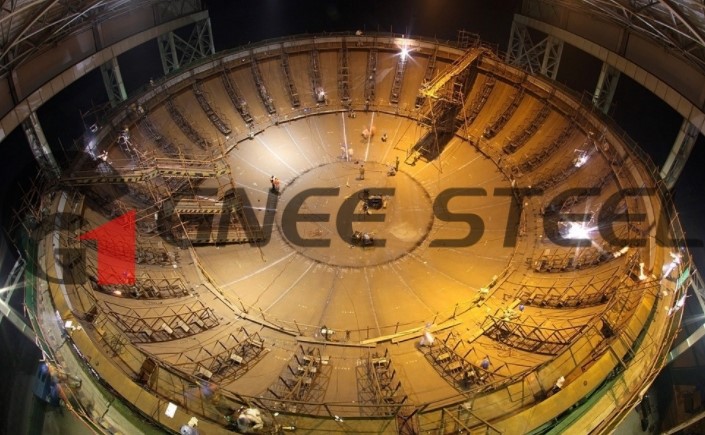

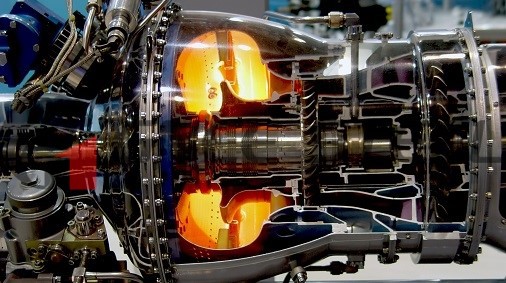

Best For: High-stress reactors, engine shafts, high-pressure fuel lines, and rotating turbine parts.
Strengthening: Primarily γ ′′ (Gamma Double Prime) phase via Niobium (Nb) additions.
3. Material properties and cost analysis of GH4169 and GH2132 pipes
| Feature | GH2132 (Alloy A286) | GH4169 (Alloy 718) | Commercial Impact |
| Matrix Base | Iron-Nickel (Lower Cost) | Nickel-Based (Premium) | GH2132 is 30-40% cheaper. |
| Nickel (Ni) % | 24.0% - 27.0% | 50.0% - 55.0% | Higher Ni = Higher Price. |
| Max Service Temp | 650°C (1200°F) | 700°C (1300°F) | GH4169 for critical heat. |
| Yield Strength | ~ 590 MPa (Aged) | ≥ 1030 MPa (Aged) | GH4169 is nearly 2x stronger. |
| Machinability | Superior | Challenging (Hardens fast) | GH2132 reduces fabrication labor. |
| Best Application | Fasteners & Manifolds | High-Pressure Reactors | Match the alloy to the stress. |
4. Detailed Analysis of GH4169 and GH2132 Chemical Pipelines
1. Corrosion resistance and high temperature resistance of GH4169 and GH2132g
GH4169: Nickel-based alloys provide superior resistance to oxidizing and reducing environments. It is used in petroleum, chemical processing, and nuclear industries due to excellent fatigue and radiation resistance.
GH2132: Being iron-based with lower nickel content, it has excellent oxidation resistance below 650°C. It is highly effective for applications involving stress-rupture, such as piping in moderate-temperature chemical environments and fasteners.
2. Strength and Stress Handling
GH4169: Ranks among the highest-strength deformation alloys below 650°C. It handles very high stress, making it ideal for pipes carrying fluids under high pressure.
GH2132: Offers high yield and tensile strength, often used in places where high strength is required but weight/cost must be managed. It is considered a cost-effective alternative to Inconel 718 (GH4169) when temperatures do not exceed 1300°F (704°C).
3. Welding and Fabrication
GH4169: While it has good welding performance, it can produce Laves phases during solidification, requiring precise heat treatment to maintain corrosion resistance.
GH2132: Possesses good processing plasticity and satisfactory welding properties.
Click to contact us for document selection and review
4. How to choose between GH4169 and GH2132 pipes in the chemical industry
Choose GH4169 Pipes if: The system requires maximum strength at very high temperatures (650°C+), or in highly corrosive environments (e.g., strong acids, sulfur-containing atmospheres).
Choose GH2132 Pipes if: The application involves lower temperatures (<650°C), moderate corrosion, and requires a cost-effective, high-strength solution with good machinability.
Why choose to purchase GH4169 from Gnee Steel, a leading manufacturer of high-temperature alloys?
Whether your project needs the iron-based reliability of A286 or the nickel-based power of 718, we provide total Quality Assurance:
✅️VIM + VAR Melting: Dual vacuum refining ensures ultra-pure materials with zero internal inclusions.
✅️MTC 3.1 Traceability: Full EN 10204 3.1 certificates documenting heat analysis and mechanical verification.
✅️Wholesale Inventory: Large stock of standard schedules (Sch 40, Sch 80) and rods ready for Fast Global Shipping.
✅️Custom Fabrication: We offer precision cutting, centerless grinding (h8-h11), and specialized heat treatment services.
Gnee Steel GH4169(inconel 718) Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Steel GH4169 Product Packing
Contact us for the latest export price quote for GH4169 Alloy
FAQ
Q1: Can GH2132 replace 316L in a chemical plant?
A: Yes, and it is a massive upgrade. While 316L loses its strength above 450°C, GH2132 maintains high strength and oxidation resistance up to 650°C, making it much safer for high-temp fasteners.
Q2: Is GH4169 suitable for Sour Gas (H2S) environments?
A: Absolutely. When properly heat-treated to meet NACE MR0175 requirements, GH4169 is the premier choice for high-pressure valves and tubing in sour chemical processing.
Q3: Which alloy has better weldability?
A: GH4169 is famous for its Superior Weldability due to its slow aging response. GH2132 is also weldable, but requires more precise heat control during the process to avoid localized grain growth.
Q4: Do you offer bulk discounts for petrochemical refinery overhauls?
A: Yes. As a direct manufacturer, we provide attractive Bulk Pricing for large-scale energy and infrastructure projects worldwide.
