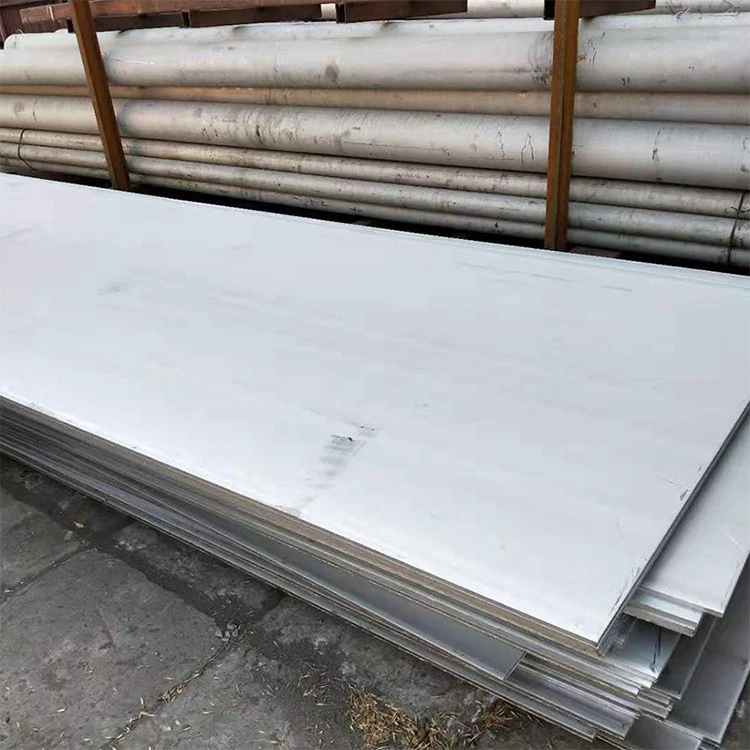

Inconel Alloy 600 Sheet
GNEE Group offers Nickel Alloy Inconel 600 in a variety of forms, including:
Bars
Wires
Sheets
Forgings
Tubes
Flanges
Seamless and Welded Pipes
Welding Rods
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of inconel alloy 600 sheet in China. If you're going to wholesale high quality inconel alloy 600 sheet made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Inconel Alloy 600 mirror Sheet introduce
Inconel 600 Sheets and Plates Specifications
Specification : ASTM B168 / ASME SB168
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Inconel Sheet : thickness range from .008" to .0125"
Inconel Plate : thickness ranges from .0125" to 5.00"
Size : 15NB to 150NB In
Tempers : Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form: Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Inconel Alloy 600 Sheet
Inconel 600 (AMS 5540) is a nickel-chromium alloy designed for use at cryogenic temperatures and elevated temperatures up to 2000°F (1093°C). The high nickel content of alloy 600 provides good resistance to reducing environments, as well as exceptional resistance to chloride stress corrosion cracking, while the chromium content provides resistance to weaker oxidizing conditions. It exhibits high strength and is oxidation resistant, and while it cannot be precipitation hardened, cold working of alloy 600 materials can considerably harden them. This material is often used in the chemical processing, heat treating industry, soap manufacturing, electrical, nuclear and aeronautical fields.
UNS N06600 Inconel 600 Sheet & Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Chemical Composition of Inconel Alloy 600 Sheet & Plate
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6 – 10 | 72.00 min | 14 – 17 |
Mechanical Properties of Inconel 600 Sheet & Plates
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 600 Sheets Sizes in Stock
All Sheets and Plates is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Inconel Gauge Width and Length | Weight Lbs. per Sq. Ft. | Estimated Weight per Sheet |
|---|---|---|
| 7 ga. (.1874") x 48 x 120 | 7.871 | 314.8 |
| 10 ga. (.135") x 48 x 120 | 5.670 | 226.8 |
| 11 ga. (.120") x 36 x 120 | 5.040 | 151.2 |
| 11 ga. (.120") x 48 x 96 | 5.040 | 161.3 |
| 11 ga. (.120") x 48 x 120 | 5.040 | 201.6 |
| 11 ga. (.120") x 48 x 144 | 5.040 | 241.9 |
| 11 ga. (.120") x 60 x 96 | 5.040 | 252.0 |
| 12 ga. (.105") x 36 x 120 | 4.410 | 132.3 |
| 12 ga. (.105") x 48 x 120 | 4.410 | 176.4 |
| 12 ga. (.105") x 60 x 120 | 4.410 | 220.5 |
| 14 ga. (.075") x 36 x 120 | 3.150 | 94.50 |
| 14 ga. (.075") x 48 x 120 | 3.150 | 126.0 |
| 16 ga. (.060") x 36 x 120 | 2.520 | 75.60 |
| 16 ga. (.060") x 48 x 96 | 2.520 | 80.64 |
| 16 ga. (.060") x 48 x 120 | 2.520 | 100.8 |
| 16 ga. (.060") x 60 x 120 | 2.520 | 126.0 |
| 18 ga. (.048") x 36 x 120 | 2.016 | 60.48 |
| 18 ga. (.048") x 48 x 120 | 2.016 | 80.64 |
| 20 ga. (.036") x 36 x 120 | 1.512 | 45.36 |
| 20 ga. (.036") x 48 x 120 | 1.512 | 60.48 |
| 22 ga. (.030") x 36 x 120 | 1.260 | 37.80 |
| 22 ga. (.030") x 48 x 96 | 1.260 | 40.32 |
| 22 ga. (.030") x 48 x 120 | 1.260 | 50.40 |
| 24 ga. (.024") x 36 x 120 | 1.008 | 30.24 |
| 24 ga. (.024") x 48 x 120 | 1.008 | 40.32 |
| 26 ga. (.018") x 36 x 120 | .7560 | 22.68 |
| 26 ga. (.018") x 48 x 120 | .7560 | 30.24 |
| 28 ga. (.015") x 36 x 120 | .6300 | 18.90 |
GNEE Group Factory Environment
Inconel composite plate
GNEE Group Product Testing
Inconel sheet
FAQ
Q. What are your company's main products ?
A: Our main products are stainless steel , carbon steel , galvanized steel, aluminium products , etc.
Q. How do you control quality ?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS Verified.
Q.What is the difference between Inconel 625 and 718?
A:Alloy 625 is primarily nickel-based, while alloy 718 is nickel + cobalt (Ni+Co)-based. Alloy 625 has higher levels of chromium and molybdenum, making it more corrosion resistant.
