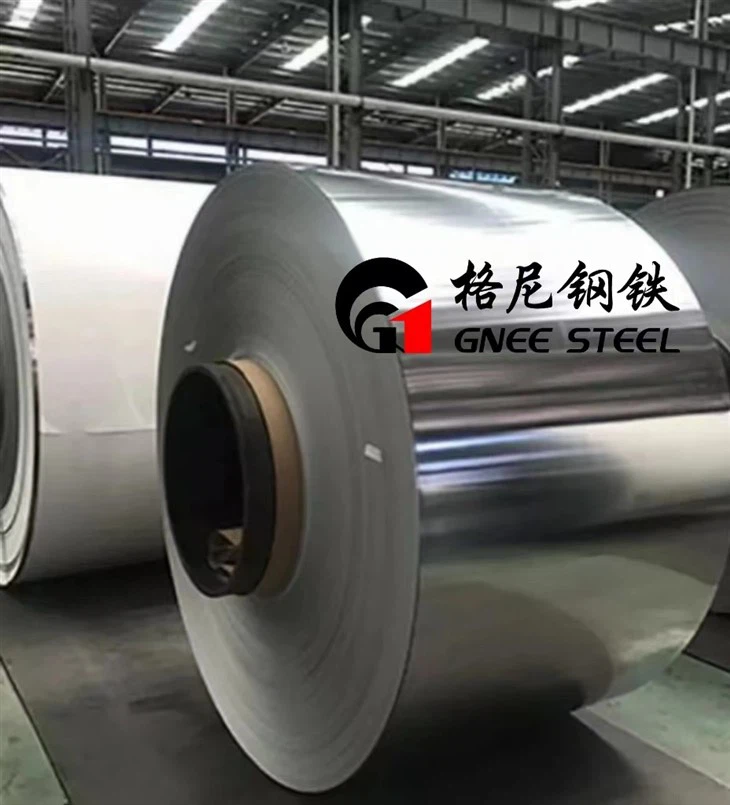

Inconel 783 Alloy Coils
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Mechanical Properties
The following table shows mechanical properties of INCONEL 783.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1194 MPa | 171 ksi |
| Yield strength | 779 MPa | 113 ksi |
| Poisson's ratio | 0.31 | 0.31 |
| Elastic modulus | 177.3 GPA | 25.72 ksi |
| Elongation at break | 24% | 24% |
Thermal Properties
The thermal properties of INCONEL 783 are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@93°C/200°F) | 10.08 µm/m°C | 5.60 µin/in°F |
| Thermal conductivity (@21°C/70°F) | 10.1 W/m-°C | 71 BTU in/hr.ft².°F |
Fabrication And Heat Treatment
INCONEL 783 has good fabricability and can be formed, machined, and welded using all the traditional procedures for nickel alloys. This alloy's reactions are similar to that of INCONEL 718.
Machinability
INCONEL 783 can be readily machined using the conventional practices for high-strength nickel alloys. In case of rough machining, the material has to be machined in the annealed condition.
Heat Treatment
To heat treat this super alloy, the material has to solution annealed at 1121°C (2050°F) for 1 h, and air cooled. This should be followed by beta aging at 845°C (1550°F) for 4 h and air cooled to room temperature. Next the material is age hardened at 720°C (1325°F) for 8 h, furnace cooled at 55°C (100°F) for 1 hr to 620°C (1150°F) for 8 h and air cooled.
FAQ
Q1: Can I order a sample quantity ?
A1: Yes, we have no MOQ.
Q2: Can I add my logo on the boxes/cartons?
A2: Yes,OEM and ODM are available from us.
Q3: What are the benefits of being a distributor ?
A3: Special discount Marketing protection.
