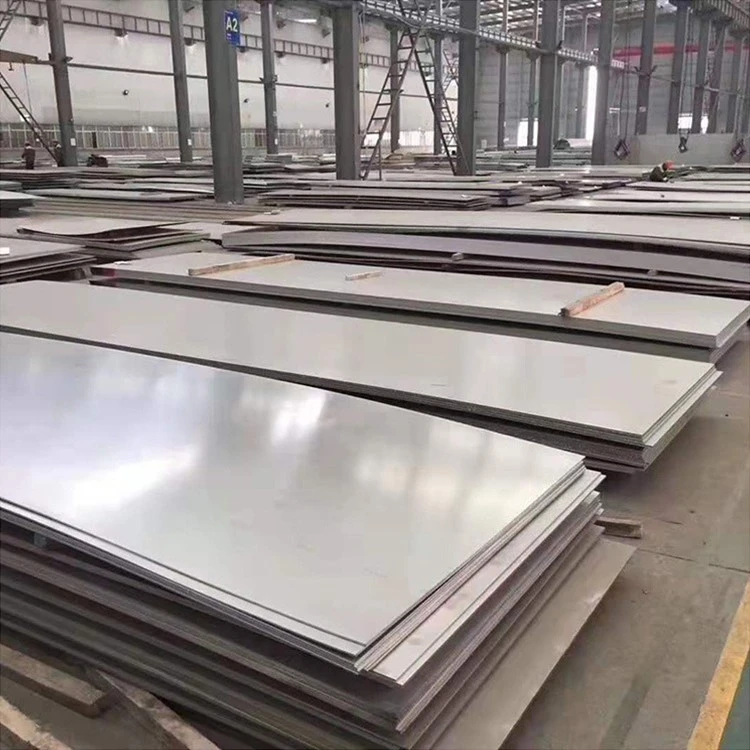

Nickel Alloy 20 Steel Plate
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of nickel alloy 20 steel plate in China. If you're going to wholesale high quality nickel alloy 20 steel plate made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Alloy 20 is an excellent corrosion-resistant austenitic stainless steel. The Alloy 20 Plate is produced with a good concentration of chromium, nickel, and molybdenum. These plates are designed with special resistance against attacks from sulphuric acids. They are also known as Carpenter 20 Cb-3 Plates, which are very strong and can suffice in extreme conditions.
These plates possess excellent mechanical properties. They have a tensile strength of a minimum of 551Mpa and a yield strength of a minimum 241Mpa. The SB 463 UNS N08020 Plate can be elongated easily by 30% and have a melting point of 1443 degrees C. These plates are widely used in oil and gas refineries, marine systems, food processing, process piping, and petrochemical industries.
The ASTM B463 UNS N08020 Sheet can be formed via the hot or cold-rolling processes. These sheets possess superior strength and can suffice in high temperatures and pressures. The 2.4660 Alloy 20 Sheet is very reliable and has a long service life. These sheets are available in sizes between 1.6mm to 76.2mm, which can be customized at the request of our customers. The Alloy 20 Stainless Steel Strips have excellent resistance against intergranular corrosion and acid-induced cracking. These strips are available in different hardness and sizes. We belong to a group of few Alloy 20 Sheet suppliers who can customize all our products as per your requirements in different chemical compositions and sizes.
| Material Specification | ASTM B463/ ASME SB463 |
|---|---|
| Grade | B463 UNS N08020, Incoloy Alloy 20, Carpenter 20, 20Cb-3, CARPENTER alloy 20Cb-3 |
| Thickness | 7 gauge to 28 gauge or 3.664mm to .321mm |
| Width Range | 30" to 240" |
| Length Range | Up to144" Non-Standard or Longer Lengths Available Upon Request |
| Finishes | 2D, 2B, 4Pol, BA, X10, XL, Buff, XL Blend S, SATIN (Met with Plastic Coated), NO(8), Hairline, NO.1, NO.4, Mirror Finish |
| Processing | Shearing to Custom Sizes |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Delivery | 15-20 days |
| Additional Options | Several colors, thicknesses and opacity options are available., Mill TC EN 10204 3.1, Third Party Inspection, NDT/DT Test Reports. |
The Alloy 20 Steel Coil is produced with a density of 8.1 g/cm3. These coils are known for their excellent post-weld carburization resistance properties. They are easy to clean and maintain. UNS N08020 Sheet Coil possesses excellent workability and is available in lengths up to 6000mm.
