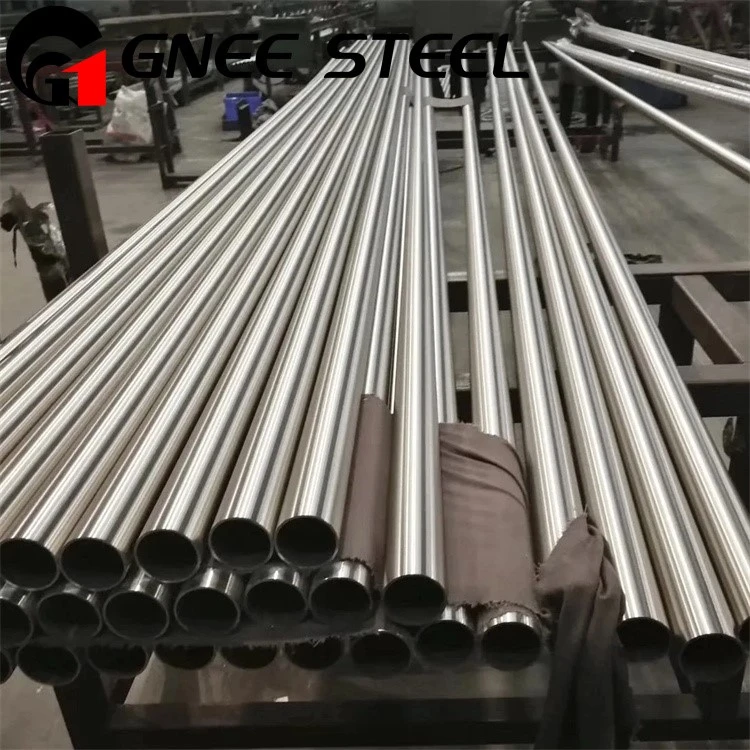

Monel K500 Nickel Alloy Thin Wall Pipe
Composition: Mainly composed of nickel and copper, with aluminum and titanium added to promote precipitation hardening, thereby improving its strength and hardness.
Corrosion resistance: Excellent resistance to a variety of corrosive media (including seawater, acids and alkalis).
Mechanical properties: High strength, good fatigue resistance, and can still maintain its mechanical properties at high temperatures from minus to around 480 degrees Celsius.
Weldability and formability: Easy to weld and form, suitable for various manufacturing processes.
Application: Widely used in marine, aerospace, chemical processing and oil and gas industries, including pump shafts, valve components and drilling equipment.
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of monel k500 nickel alloy thin wall pipe in China. If you're going to wholesale high quality monel k500 nickel alloy thin wall pipe made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
K500 Nickel Alloy Thin Wall Pipe Description
Monel K500 Thin Wall Tube is a nickel-copper alloy tube known for its excellent corrosion resistance, high strength and durability for a wide range of demanding applications. The alloy's properties are enhanced by a precipitation hardening process that involves the addition of aluminum and titanium. This process increases strength and hardness compared to Monel 400.
Monel K500 Tube has the same corrosion resistance as Alloy 400 with the additional addition of titanium and aluminum. Monel K500 Tube is also known as Monel K500 Seamless Tube, Monel K500 Alloy Tube and Nickel Alloy K500 Tube. K500 Alloy Seamless Tube is widely used in industries such as Oil & Gas, Chemical, Petrochemical and Refinery. K500 Alloy Tube has excellent corrosion resistance in a wide range of environments: from pure water to non-oxidizing mineral acids, salts and alkalis.
Nickel-Copper Alloy K500 Pipes specifications
Chemical Compatibility of Monel Alloy K500 Pipe
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Mechanical Analysis of Monel K500 Pipe
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Pressure Rating of Nickel Alloy K500 Pipe
|
Tube O.D. |
Wall Thickness of Tube (inches) | |||||||
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Corrosion Resistant Monel K500 pipe Surface Treatments
Gnee Steel offers four surface treatments for Acid Resistant Monel Alloy K500 Seamless Pipes: Pickling, Mirror Polishing, Polishing and Shot Blasting.
Monel Alloy K500 Tube production process
Gnee Steel offers the following heat treatments for monel alloy K500 seamless pipes: Annealing, Solution + Aging. In addition, Gnee Steel also offers hot working and cold working, i.e. hot rolling and cold drawing.
About Gnee Steel
Gnee Steel is a company specializing in the production of various nickel-based alloys, nickel 201, nickel202, hastelloy c-276, hastelloy c-22, hastelloy b, hastelloy c-4, Inconel alloy 600, Inconel 625, Inconel 718, Inconel x-750, incoloy alloy 800, incoloy 800H/HT, incoloy 825, monel alloy 400, monel k500 and high temperature alloy materials. It specializes in the production and sales of alloy materials. Gnee Steel's products are widely used in aerospace, chemical, electric power, automobile, nuclear energy and other fields, and can provide customized alloy material solutions according to customer needs. If you need to know the alloy material price consultation or provide customized alloy material solutions, you are welcome to contact us at any time to get a quote at ss@gneesteel.com
