GH4049 3600 3625 High Heat Stainless Steel Pipe
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
GH4049 3600 3625 High Heat Stainless Steel Pipe suppliers introduce
GH4098 4169 5188 high temp alloys Pipe video
GNEE STEEL GROUP supplies GH4049 3600 3625 High Heat Stainless Steel Pipe for you
GH4049 Size Availability
| Steel Grade | Specification | Processing range(mm) |
| GH4049 Stainless Steels | Round Bar and Hollow Bar | Φ1 to Φ2000 |
| Square and Flat Steel | Φ10 to Φ100 | |
| Plate and Sheet | 0.08-800(Thickness)*10-1500(Width)*Length | |
| Tube or Pipe | OD:Φ4-410; WT:1-35 mm; Lenght:10-12000 | |
| Coil and Strip Steel | THK:0.1mm Width:1500mm | |
| Forged | Ring/Cylindrical/Disk |
|
Grade |
GH3600 |
|
Size |
Ф 0.1~20mm |
|
MOQ |
50 Kgs |
|
Condition |
Soft/ Hard; Bright/ Oxidized |
GH3625 Size
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
GH4049 3600 3625 High Heat Stainless Steel Pipe chemical composition
GH4049 High Heat Stainless Steel Pipe chemical composition
| Elements | Min.(≥) | Max.(≤) | Similar | Remarks |
|---|---|---|---|---|
| C | - | 0.10 | ||
| Cr | 9.50 | 11.0 | ||
| Mo | 4.50 | 5.50 | ||
| Ni | - | Remainder | ||
| W | 5.00 | 6.00 | ||
| Al | 3.70 | 4.40 | ||
| Ti | 1.40 | 1.90 | ||
| Fe | - | 1.5 | ||
| Si | - | 0.50 | ||
| Mn | - | 0.50 | ||
| P | - | 0.010 | ||
| S | - | 0.010 | ||
| B | - | 0.015 | ||
| Ce | - | 0.02 | ||
| V | 0.20 | 0.50 |
GH3600 High Heat Stainless Steel Pipe chemical composition
|
Grade |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Cu |
Fe |
|
GH3600 |
≤0.15 |
≤0.5 |
≤ 1 |
≤0.015 |
≤0.015 |
72 |
14~17 |
≤0.5 |
6~7 |
GH3625 High Heat Stainless Steel Pipe chemical composition
|
Ni |
Cr |
Fe |
Mo |
Nb+Ta |
C |
Mn |
Si |
Ph |
S |
Al |
Ti |
Co |
|
|
Min |
Bal |
20 |
- |
8 |
3.15 |
- |
- |
- |
- |
- |
- |
- |
- |
|
Max |
- |
23 |
5 |
10 |
4.15 |
0.10 |
0.50 |
0.50 |
0.015 |
0.015 |
0.40 |
0.40 |
1.0 |
GH4098 4169 5188 heat resistant metals Pipe
GH4049 is a Ni-Co-Cr-based deposition hardening deformed high-temperature alloy with an application temperature below 950°C. The alloy has good oxidation resistance below 1000°C and high high-temperature compressive strength below 950°C, and is suitable for the production of natural gas turbocharger blades with operating temperatures of 850°C to 950°C. Key equipment includes hot-rolled and forged bar stock and free-forged turbine blades.
GH600 is an early-developed nickel-chromium-iron-based solid solution strengthened alloy. It has good high-temperature corrosion resistance and oxidation resistance, excellent hot and cold processing and welding process performance, and has satisfactory thermal strength and high resistance below 700°C. Plasticity.
GH3625 is a solid solution strengthened nickel-based deformed superalloy with molybdenum and niobium as the main strengthening elements. It has excellent corrosion resistance and oxidation resistance, good tensile properties and fatigue properties from low temperature to 980°C, and is salt resistant. Stress corrosion in fog atmosphere. Therefore, it can be widely used in manufacturing aerospace engine parts, aerospace structural components and chemical equipment.

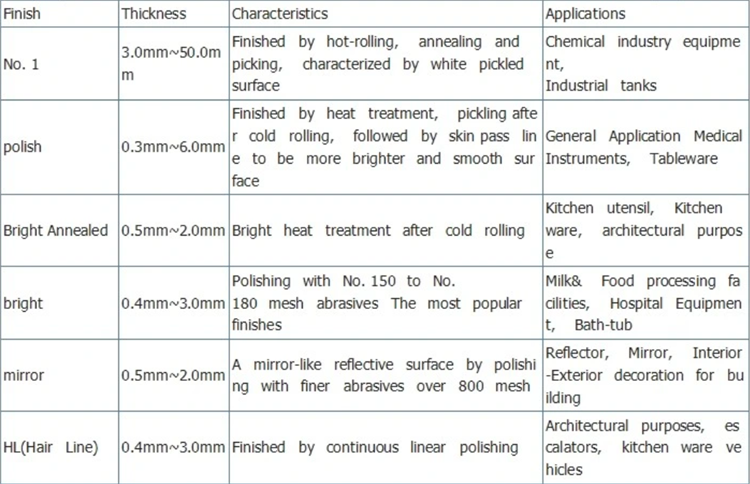

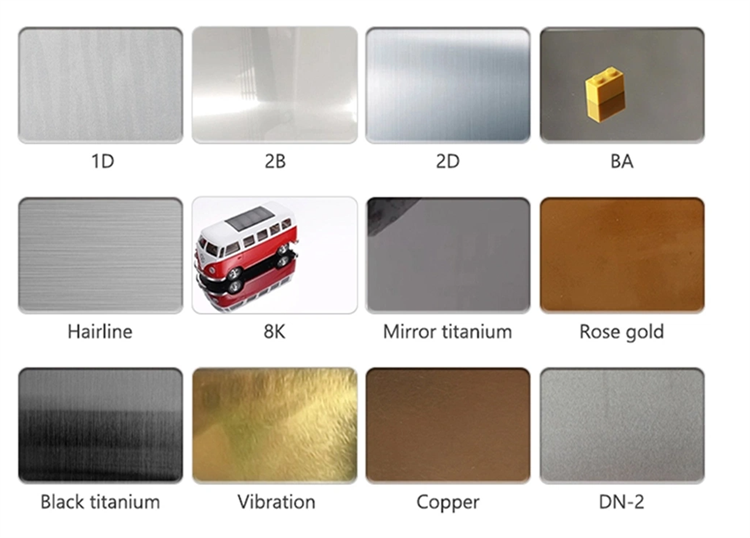

GH4049 3600 3625 High Heat Stainless Steel Pipe technology
Customer Case
customer visit
FAQ
Q: Can you provide us samples, is it free or does it require payment?
A: If you don't need to print your logo or other artwork on the product, we won't charge any fee, just tell us your freight collect account, such as Fedex, DHL, TNT. If you don't have it, we need to charge the express fee appropriately.
Q: Can I get your best price?
A: Our goal is to provide you with the best price and excellent quality assurance in the long run. Please leave your contact information to get the best quote, we will provide you with the best solution as soon as possible.
Q: About the product price of GH4098 4169 5188 high heat stainless steel?
A: Due to cyclical changes in raw material prices, prices vary in different periods.
