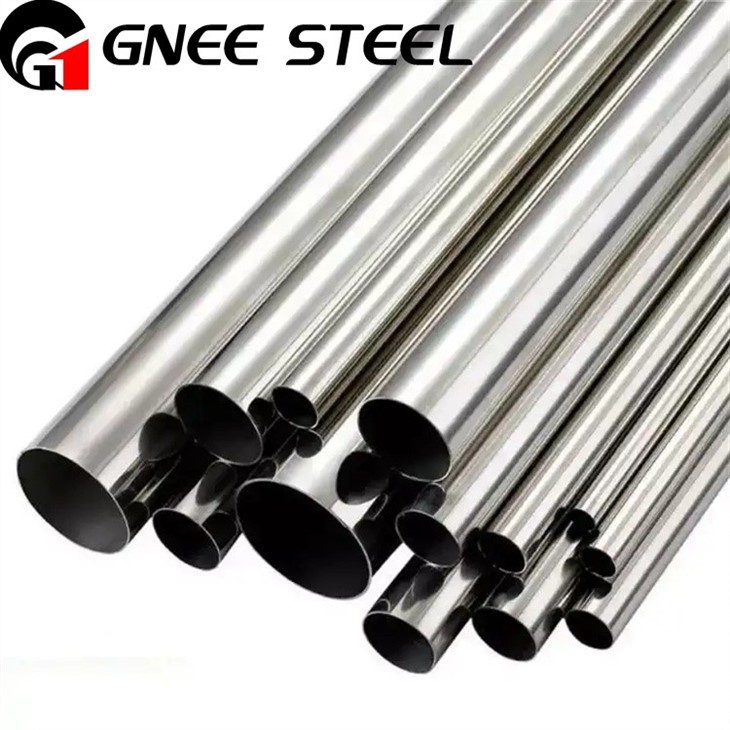

GH3039 3044 High Heat Stainless Steel Pipe

Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of gh3039 3044 high heat stainless steel pipe in China. If you're going to wholesale high quality gh3039 3044 high heat stainless steel pipe made in China, welcome to get free sample from our factory. Good service and reasonable price are available.



GH3039 3044 high temperature metal alloys pipe video

GNEE STEEL GROUP supplies GH3039 3044 High Heat Stainless Steel Pipe for you



GH3039 High Heat Stainless Steel Pipe

Same grade: ЭИ602, XH75MБГЮ



Standard: GJB3165-98,GJB1952-94,GJB3318-98,GB/T15062-94



Common supply form: Rod, plate, strip, pipe

Nickel GH3030 Superalloy Pipe GH3030 High Temperature Alloy Tube
Outside Diameter	10.3-426mm
Wall Thickness	1.24-40.49mm
Length	Up to 25m
Standard	ASTM B163, ASTM B167, ASTM B407, ASTM B444, ASTM B622, ASTM B677, ASTM B829,etc.



Specifications : GB/T 14994

Grade: GH3044

Length : Required Length

Round Bar Diameter : 4.00 mm to 400 mm

Bright Bar : 4mm – 150mm,

Surface Finish : Black, Bright, Polished

Form : Round, Billet, Ingot, Forging Etc.

GH3039 Thermal Properties
(1),GH3039 Thermal Conductivity :
θ/ºC				100	200	300	400	500	600	700	800	900
λ/(W/(m · ºC))				13.8	15.5	17.2	18.8	20.5	21.8	23.4	25.1	26.8
(2),GH3039 Specific Heat Capacity:
θ/ºC					150	200	300	400	500	600	700	800
c/(J/(kg.K))					544	574	636	645	762	779	921	1047
(3),GH3039 Coefficient of Linear Thermal Expansion:
θ/ºC			20-100	20-200	20-300	20-400	20-500	20-600	20-700	20-800	20-900	20-1000
a/10-6ºC-1			11.5	12.4	13.2	13.5	13.8	14.3	14.9	15.3	15.8	16.4



GH3044 Chemical Composition and Mechanical properties:

Grade	C	Mn	P	S	Si	Cr	Fe	Al	Mo	Ti	W
GH3044	0.10 max	0.50 max	0.013 max	0.013 max	0.80 max	23.5 – 26.5	4.0 max	0.5 max	1.5 max	0.3 – 0.7	13.0 – 16.0

GH3039 3044 high temperature nickel alloys pipe

GH3039 is an iron-nickel alloy composed of nickel, chromium, molybdenum, iron, cobalt, copper, manganese and silicon. This alloy has excellent mechanical and thermal properties, making it ideal for use in high temperature, pressure and corrosive environments. GH3039 is widely used in aerospace, chemical industry, energy, nuclear industry and other fields.
GH3044 is a Ni-Cr-based solid solution strengthened deformed high-temperature alloy with a service temperature below 900 degrees Celsius. The alloy contains large amounts of tungsten and small amounts of aluminum and titanium. The alloy has high plasticity and moderate thermal strength, and has excellent oxidation resistance and good new functions in stamping and welding processes.











customer visit

Q: How many countries have you exported to?
A: Exported to more than 50 countries, mainly from the United States, Russia, the United Kingdom, Kuwait, Egypt, Turkey, Jordan, India, etc.

Q: Can you provide samples?
Answer: Yes. As long as you contact us, we can provide free small samples in stock. Customized samples will take about 5-7 days.
Q: About the product price of GH3039 3044 high heat stainless steel pipe?
A: Due to cyclical changes in raw material prices, prices vary in different periods.
