Chronifer Stainless Steel Bar 500mm M13 AISI 420 Hardenable
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445

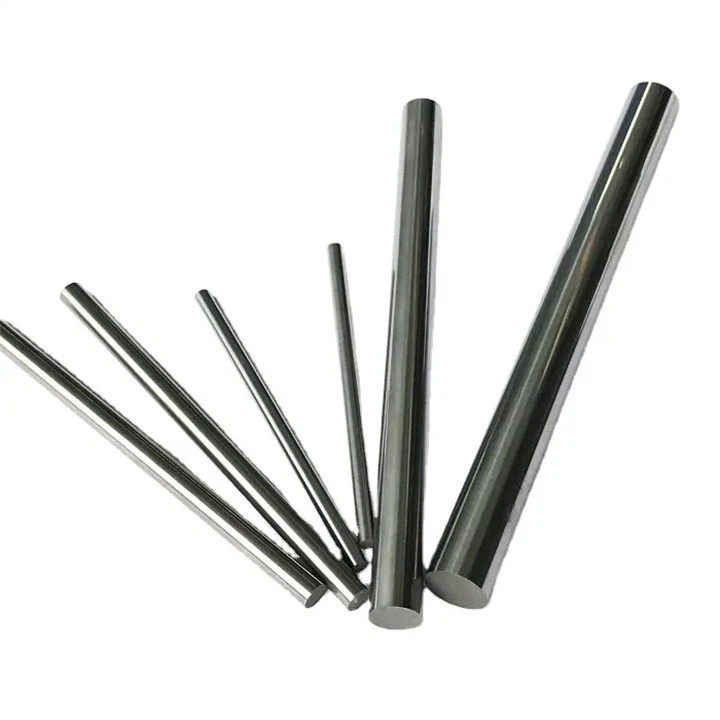

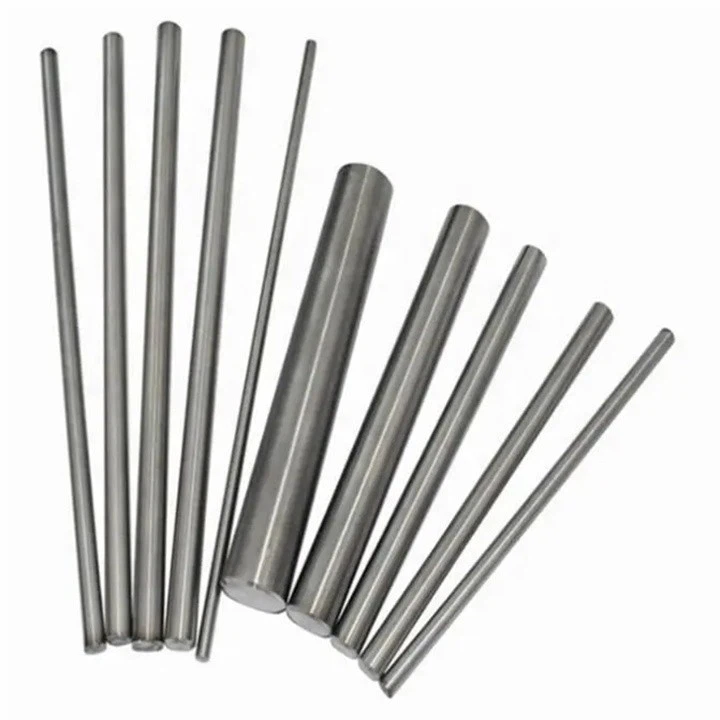

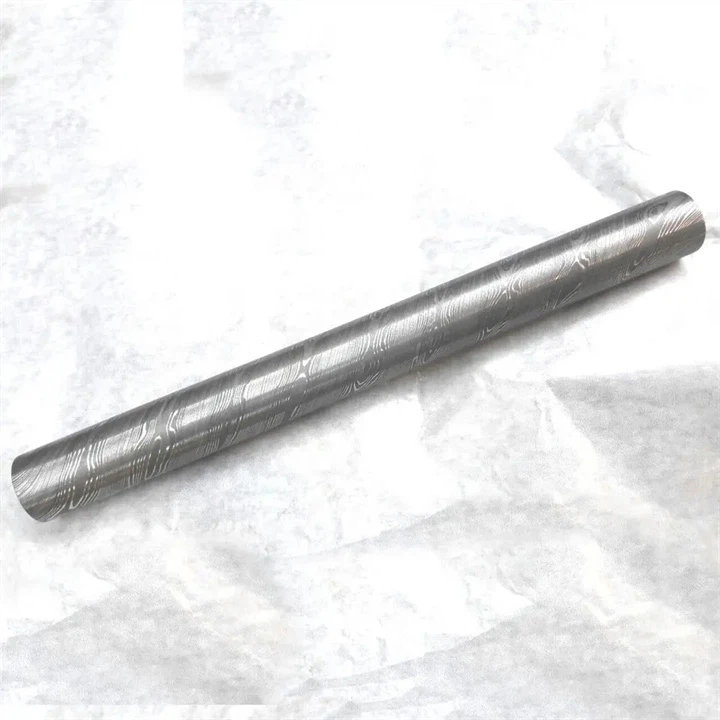

Chronifer Stainless Steel Bar 500mm M13 AISI 420 Hardenable
Description
| Type: | Round | Application: | Construction,decoration,Industry,Mechineal,shipbuilding |
|---|---|---|---|
| Standard: | DIN,ASTM,AISI,JIS | Grade: | 420 |
| Shape: | Round | Dimensions: | 5.5mm-500mm |
| Surface: | Bright,Polished | Technique: | Cold Drawn |
| Length: | Customers' Requirements,or As Required.,5.8m | Packing: | Standard Seaworthy Package |
| Price Term: | CIF CFR FOB Ex-Work | ||
| High Light: |
Hardenable Stainless Steel Bar,500mm Stainless Steel Bar,Chronifer Stainless Steel Bar |
||
Chronifer M13 AISI 420/420C EN 10088-3, ASTM F-899 Hardenable Stainless Steel Bar ROHS conformed
420 Stainless Steel Strip, Coil, Foil, Wire, AMS 5506, ASTM A240
APPLICATIONS
Cutlery
surgical and dental instruments
scissors
tapes
straight edges
fasteners
firearms
DESCRIPTION
Type 420 is a martensitic stainless steel that provides good corrosion resistance similar to 410 plus increased strength and hardness. It is magnetic in both the annealed and hardened conditions. Maximum corrosion resistance is attained only in the fully hardened condition. It is never used in the annealed condition.
CHEMISTRY TYPICAL
Carbon: 0.20-0.25
Manganese: 1.00 max
Silicon: 1.00 max
Chromium: 12.00-14.00
Nickel: 0.50 max
Molybdenum: 0.50 max
Phosphorus: 0.040 max
Sulfur: 0.030 max
Copper: 0.50 max
Aluminum: 0.15 max
Tin: 0.050 max
Iron: Balance
PHYSICAL PROPERTIES
Density: 0.28 lbs/in3 7.74 g/cm3 Electrical Resistivity: microhm-in (microhm-cm): 68 °F (20 °C): 21.71 (55.0)
Specific Heat: BTU/lb/° F (kJ/kg•K):
32 - 212 ° F (0 - 100 °C): 0.11 (0.46)
Thermal Conductivity: BTU/hr/ft2/ft/° F (W/m•K):
At 212 ° F (100 °C): 14.4 (24.9)
At 932 ° F (500 °C): 16.6 (28.7)
Mean Coefficient of Thermal Expansion: in/in/° F (µm/m•K)
32 - 212 ° F (0 - 100 °C): 5.7 x 10·6 (10.2)
32 - 1200 ° F (0- 649 °C): 6.8 x 10·6 (12.1)
Modulus of Elasticity: ksi (MPa)
29 x 103 (200 x 103) in tension
Magnetic Permeability: Magnetic
Melting Range: 2723 ° F (1495 °C)
FORMS
Coil - Strip, Foil, Ribbon
Wire - Profile, Round, Flat, Square
MECHANICAL PROPERTIES AT ROOM TEMPERATURE
PROPERTIES: ANNEALED
Ultimate Tensile Strength: 100 KSI max (690 MPa max)
Elongation: 15% min
Hardness: B 96 max
PROPERTIES: TEMPERED
Type 420 can be cold rolled to various tempers. Please consult Ulbrich Technical Services for additional information.
ADDITIONAL PROPERTIES
CORROSION RESISTANCE
Type 420 provides full corrosion resistance only in the hardened or hardened and tempered. In these conditions, its corrosion resistance is similar to type 410. Refer to NACE (National Association of Corrosion Engineers) for recommendations.
FINISHES
# 1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.
# 2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process. # 2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
#BA- Bright annealed cold rolled and bright annealed
#CBA- Course bright annealed cold rolled matte finish and bright anneal
#2 - Cold Rolled
# 2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part. Polished - Various grit finish for specific polish finished requirements.
* Not all finishes are available in all alloys - Contact Ulbrich Sales for more information.
WIRE FINISHES
XC - Extra clean bright annealed or bright annealed and cold rolled Grease - Ultra-bright finish (for decorative applications) Soap - Soap is not removed from tempered wire to act as a lubricant. * Contact Ulbrich Wire for custom wire finishes.
COLD FORMING
Type 420 can be moderately drawn and formed in the annealed condition.
HEAT TREATMENT
Alloy 420 can be hardened by cold working and by heat treating. Please refer to Ulbrich Technical Services Department for more information. Alloy 420 is capable of being heat treated to a hardness of HRC 51 minimum.
WELDING
The martensitic class of stainless steels has limited weldability due to its hardenability. For best results refer to: SSINA's "Welding of Stainless Steels and Other Joining Methods" .
Hot Tags: chronifer stainless steel bar 500mm m13 aisi 420 hardenable, China chronifer stainless steel bar 500mm m13 aisi 420 hardenable suppliers, high nickel corrosion alloys, , , hastelloy material piping alloy, incoloy alloy seamless pipe
