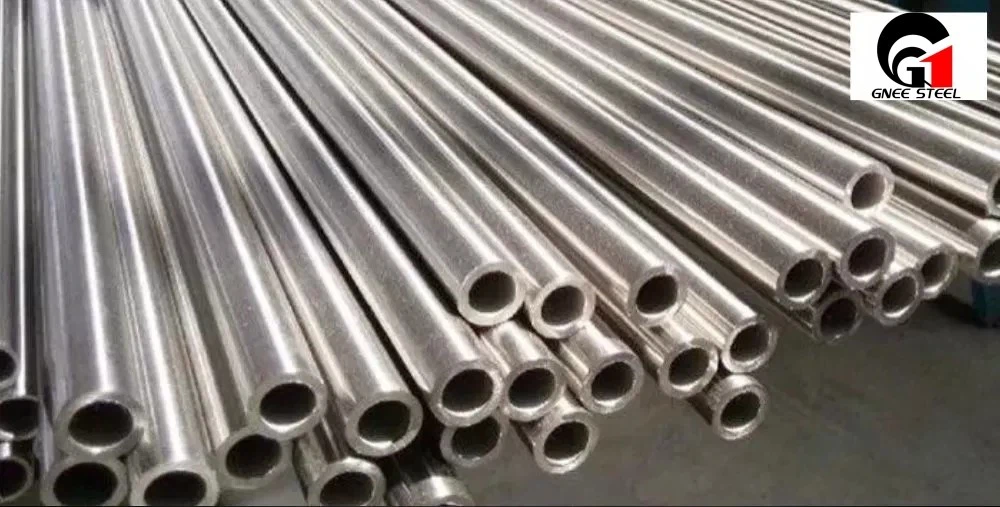

UNS N02200 Nickel Alloy Seamless Bright Surface Tube
UNS N02200 Nickel Alloy Seamless Bright Surface Tube
UNS N02200 alloy seamless bright finish tubing is a high-quality, seamless tubing made from pure commercial nickel (Nickel 200) with a bright, reflective finish. This tubing typically meets standards such as ASTM B163 and offers excellent corrosion resistance, particularly against alkaline solutions and distilled water. Due to its mechanical strength and durability, it is widely used in industries such as chemical processing, heat exchangers, and food processing.
What is the annealing temperature for Nickel 200 alloy?
1300°F
Nickel 200 alloy can be formed using a variety of hot and cold working processes. The alloy can be hot worked between 649°C (1200°F) and 1232°C (2250°F), with heavy forming temperatures exceeding 871°C (1600°F). Annealing temperatures range from 704°C (1300°F) to 871°C (1600°F).
Nickel 200 Seamless pipe Material Specification
| ASTM Specification | UNS N02200/ ASTM B161 ASME SB161, ASME SB-163 |
|---|---|
| International Specification |
BS 3073, BS 3072, Werkstoff Nr. 2.4060, BS 3075, BS 3074, BS 3076, NA11 DIN 17750, 17740, 17752, 17751,17754, 17753 |
| Standard | DIN, ASME, EN, JIS, GB, AISI, NF, DS, SAE, DTD, ASTM, AMS, TOCT, |
| Size of Seamless Pipe | Wall thickness.: 0.05- 20 milimeter, 4 - 219 milimeter |
| Size of Welded Pipe | 5.0 to 1219.02 milimeter |
| size of EFW Pipe | 5.0 to 1219.02 milimeter |
| Seamless Tube Size | 3.35 milimeter To 101.6 milimeter OD |
| Welded Tube Size | 6.35 milimeter To 152 milimeter OD |
| Bwg & Swg | 18 Swg., 14 20 Swg., Swg. Swg., 12 16 Swg., 10 Swg. |
| Tubing wall thickness | 0.020" –0.220", (custom wall thicknesses available) |
| Pipe Schedule | SCH160, SCH40S, SCH30, SCH120, SCH20, SCH80, SCH60, SCH5, SCH10S, SCH40, SCH80, XXS, XS, SCH10, STD, SCH140, |
| Length | Standard & Cut length , Single Random, Double Random Pipe |
| Finish | AP (Annealed & Pickled), BA (Bright & Annealed), NO.1, 2B, Polished, MF, HL, NO.4, Mirror finish, BA, 8K etc |
| End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
Nickel Chemical Composition
| Nickel 200 | Ni | P | C | Cu | Mn | Fe | Cr | Mo | Si | S |
| 99.00 minimum | – | 0.015 maximum | 0.025 maximum | 0.035 maximum | 0.04 maximum | – | – | 0.01 maximum | 0.001 maximum |
Nickel 200 Mechanical Properties
| Material And Condition | Tensile Strength Min. Ksi(MPa) | Yield Strength(0.2% Offset)Min,Psi(MPa) | Elongation In 2in. Or 50mm(Or 4D)Min. % | Rockwell Hardness(Or Equivalent) For Annealed Ends |
|---|---|---|---|---|
| Annealed | 55(379) | 15(103) | 40 | … |
| Stress-Relieved | 65(448) | 40(276) | 15 | B65 max |
Key Features and Properties
Material: This alloy is pure commercial nickel, designated UNS N02200 or Nickel 200.
Construction: Seamless tubing, meaning it is manufactured without welds, enhancing its pressure resistance and leak resistance.
Surface Finish: "Bright finish" refers to the bright annealing or polishing achieved after the manufacturing process, resulting in a smooth, corrosion-resistant, and aesthetically pleasing surface.
Corrosion Resistance: It is highly resistant to reducing chemicals, dry fluorine, and especially alkaline substances, making it ideal for handling corrosive materials such as caustic soda.
Mechanical Properties: It exhibits excellent tensile strength, ductility, good thermal and electrical conductivity, and magnetostrictive properties.
Applications
Chemical Processing: It handles varying concentrations of caustic soda, dry chlorine, and other chemicals.
Heat Exchangers and Condensers: Its corrosion resistance and thermal properties make it an ideal choice for these components.
Food Processing: Due to its durability and inertness, it can be used in food processing equipment.
Other Industries: It can also be used in electronics, fiber production, and warehousing and transportation.
Gnee Steel specializes in the production and sale of various nickel-based alloys, including Nickel 201, Nickel 202, Hastelloy C-276, Hastelloy C-22, Hastelloy B, Hastelloy C-4, Inconel Alloy 600, Inconel 625, Inconel 718, Inconel X-750, Incoloy Alloy 800, Incoloy 800H/HT, Incoloy 825, Monel Alloy 400, Monel K500, and high-temperature alloys. Gnee Steel's products are widely used in aerospace, chemical, electric power, automotive, and nuclear energy applications. We also offer customized alloy solutions tailored to customer needs. For alloy pricing inquiries or customized alloy solutions, please contact us for a quote at ss@gneesteel.com.
