Inconel 625 is the preferred material for deep-sea underwater fasteners due to its ultra-high tensile strength and excellent resistance to chloride pitting, crevice corrosion, and stress cracking. Its PREN value generally exceeds 45, far surpassing the 19 of 304 stainless steel and the 25 of 316 stainless steel, making it virtually immune to seawater corrosion. Furthermore, this alloy conforms to NACE MR0175/ISO 15156 standards, exhibiting excellent resistance to acidic environments containing H₂S. Its H₂S partial pressure tolerance can reach 10 kPa, far superior to 316L (0.5 kPa), and it effectively resists sulfide stress cracking and hydrogen embrittlement. In terms of mechanical properties, Inconel 625 annealed bars have a tensile strength ≥760–830MPa, a yield strength ≥345–414MPa, an elongation ≥30%, and a solution hardness ≤220HB. They maintain high yield strength over a wide temperature range from low temperature to 980°C, while effectively coping with continuous vibration and pressure fluctuations thanks to their excellent fatigue resistance.
Extreme Challenges Faced by Deepwater Subsea Fasteners
Before evaluating any alloy, it is essential to understand the harsh operating conditions that subsea fasteners must withstand-typically exceeding a design life of 18 years:
Chloride-rich seawater immersion: Continuous exposure to high chloride content can lead to pitting corrosion, crevice corrosion, and stress corrosion cracking (SCC), especially at bolted connections.
Extremely high hydrostatic pressure: At depths of 1000-3000 meters and beyond, fasteners are subjected to continuous high pressure and tensile forces.
Crevice environment: Closed, low-oxygen crevices form at bolt heads, nut interfaces, and flange connections, where localized corrosion accelerates rapidly.
Acidic environment risks: Many deepwater oil fields contain hydrogen sulfide (H₂S) and carbon dioxide (CO₂), thus requiring resistance to sulfide stress cracking (SSC).
Cyclic Loading and Vibration: Wave motion, flow-induced vibration, and thermal cycling subject fasteners to repeated fatigue loads.
Low-Temperature Toughness: Seabed temperatures approach 0–4°C, requiring a certain degree of ductility to avoid brittle fracture.
Therefore, standard stainless steel, and even most duplex stainless steels, cannot provide the required long-term reliability. This is why Inconel 625 has become the industry's preferred material.
Inconel 625 Deep Water Fastener Application Selection Overview
| Parameter | Inconel 625 (UNS N06625) |
|---|---|
| Applicable Standards | ASTM F467 (Nuts) / ASTM F468 (Bolts & Studs) |
| Material | Ni-Cr-Mo-Nb Solid-Solution Strengthened Alloy |
| Product Form | Bolts, studs, nuts, washers, screws |
| Typical Deepwater Applications | - Subsea Christmas tree connector bolts - Subsea manifold flange fasteners - Wellhead & X-mas tree component studs - Subsea actuator mounting fasteners - Deepwater HPHT manifold connections |
| Supply Condition | Solution Annealed (Grade 1) - Mandatory for deepwater sour service |
| Melting Process | VIM + VAR (mandatory for high cleanliness) |
| NACE MR0175 Compliance | Mandatory - Hardness ≤ 35 HRC |
| Certification Requirements | EN 10204 Type 3.2 + NACE Certificate + Hardness Log + Impact Test Report |
Gnee Alloy Inconel 625 Deep Water Fasteners Melting & Manufacturing Requirements
| Parameter | Standard Requirement | Deepwater Actual Practice |
|---|---|---|
| Melting Process | VIM + ESR or VIM + VAR | VIM + VAR - Mandated by major OEM specifications |
| Hot Working | Hot forged / rolled bar | Controlled reduction ratio (≥ 3:1) - ensures grain refinement and centerline soundness |
| Heat Treatment | Solution annealed (≥ 871°C) | Solution annealed is the only permitted condition - cold work or aging may raise hardness > 35 HRC |
| Grain Size | ASTM 5 or coarser (typical) | ASTM 6 or finer - improves fatigue resistance |
| Micro-cleanliness | ≤ 2.0 (ASTM E45, typical) | ≤ 1.5 (by agreement) |
| Bar Ultrasonic Testing | As specified | 100% mandatory - ensures no internal defects in raw material |
Contact us to learn about our Inconel 625 manufacturing process information
Inconel 625 Deepwater Fastener Chemical Composition (wt%)
| Element | UNS N06625 (ASTM F467/F468) | Engineering Significance for Deepwater | |
|---|---|---|---|
|
|
Nickel (Ni) | ≥ 58.0 (Balance) | Austenitic matrix stability - ensures toughness from cryogenic to elevated temperatures; fundamental to chloride SCC immunity |
| Chromium (Cr) | 20.0 – 23.0 | Forms stable passive film - provides seawater and high-temperature oxidation resistance | |
| Molybdenum (Mo) | 8.0 – 10.0 | Critical element - provides pitting and crevice corrosion resistance; major contributor to PREN | |
| Niobium+Tantalum (Nb+Ta) | 3.15 – 4.15 | Core strengthening element - provides high strength without heat treatment; NbC precipitation prevents intergranular corrosion | |
| Iron (Fe) | ≤ 5.0 | Limited to maintain nickel-base alloy characteristics | |
| Carbon (C) | ≤ 0.10 | Deepwater applications typically require ≤ 0.03 - optimizes weldability and resistance to sensitization | |
| Cobalt (Co) | ≤ 1.00 | Controlled to minimize neutron activation (nuclear-related applications) | |
| Phosphorus (P) | ≤ 0.015% | Deepwater supplements typically tighten to ≤ 0.010% | |
| Sulfur (S) | ≤ 0.015% | Deepwater supplements typically tighten to ≤ 1.0% |
Gnee Alloy In-Stock Nickel-Based Alloy Product PMI Test Image
Inconel 625 Deep Water Fasteners Mechanical Properties(Annealed Condition)
| Property | ASTM F467/F468 Requirement | NACE MR0175 Requirement | Typical Engineering Value |
|---|---|---|---|
| Tensile Strength (UTS) | ≥ 827 MPa (120 ksi) | Same | 900 – 1000 MPa (typical) |
| Yield Strength (YS, 0.2% Offset) | ≥ 414 MPa (60 ksi) | Same | 450 – 550 MPa (typical) |
| Elongation at Break | ≥ 30% | ≥ 30% | 35 – 45% (typical) |
| Reduction of Area (RA) | Not specified | ≥ 35% - often required by deepwater purchasers | 40 – 50% (typical) |
| Hardness | 85 HRB – 35 HRC | ≤ 35 HRC (mandatory) | ~ 200 HB (annealed) |
| Impact Toughness (Charpy V, -40°C) | Not specified | ≥ 27 J - NORSOK / deepwater specifications require | 80 – 120 J (typical) |
| Modulus of Elasticity | ~207 GPa | Same | Same |
Click to download the Inconel 625 alloy PDF file now
Gnee Alloy provides Inconel 625 dimensional tolerances and thread requirements
1. Gnee Alloy manufactures and stocks Inconel 625 round bars conforming to ASTM B446 standards. These bars are optimized for fastener production to meet the needs of a wide range of subsea hardware:
Subsea bolts, hex bolts, and heavy-duty hex bolts
Threaded studs, studs, and stud bolts
Nuts, washers, and threaded rods
U-bolts, clamping fasteners, and flange fasteners
Custom-machined fasteners and special bolts for subsea Christmas trees, manifolds, and risers
| Parameter | Standard Requirement | Deepwater Actual Practice |
|---|---|---|
| Diameter Tolerance | ASME B18.2.2 Class 2A | Class 3A - precision fit for subsea tooling interface reliability |
| Thread Inspection | GO/NO-GO gauges | GO/NO-GO + 100% PT on thread roots + full profile report |
| Bolt Length | Standard | Extended design - must accommodate subsea bolt tensioner (hydraulic stretching tool) operating envelope |
2. Gnee Alloy Inconel 625 Fastener Manufacturing Rod Specifications
| Parameter | Details |
|---|---|
| Diameter Range | 5 mm – 110 mm (Custom sizes up to 200 mm available upon request) |
| Surface Finish | Annealed, Cold Drawn, Rough Turned, Centerless Ground |
| Standard Length | 3000 – 4200 mm; Custom lengths available |
| Compliance Standards | ASTM B446, UNS N06625, NACE MR0175 / ISO 15156 (available upon request) |
Whether you are a fastener manufacturer producing submarine bolts or a offshore operations company that sources directly, we can supply bar stock or finished fasteners to your specific specifications.
Contact us to customize Inconel 625 products to fit your project dimensions
Inconel 625 Round Bar Pitting Equivalent Number (PREN)
Inconel 625 PREN: 40.8
This pitting equivalent number is estimated using the alloy's chemical composition to assess its resistance to pitting corrosion. You need to check the chromium content; molybdenum alloys contain tungsten and nitrogen. These elements help ensure the steel's safety. The most commonly used formula is:
PREN = CR% + 3.3 x (MO% + 0.5 x W%) + 16 x N%
Uns N06625 Alloy Non-Destructive Testing (NDT) & Quality Control
| Test Item | Standard Requirement | Deepwater Actual Practice |
|---|---|---|
| Ultrasonic Testing (UT) | Not typical for fasteners (bar only) | 100% UT on raw bar stock - per ASTM B594 or purchaser specification |
| Liquid Penetrant Testing (PT) | As specified | 100% mandatory on finished threads and heads - detects thread root surface cracks |
| Hardness Testing | Per lot sampling | 100% individual or frequency × 10 - NACE mandatory; records HRC value for each fastener |
| Proof Load Test | Per ASTM F606 | Mandatory + additional elongation/stretch monitoring |
| Visual Inspection | 100% | 100% - with 10× magnification on thread roots |
Click to view our Inconel 625 product test images
UNS N06625 Alloy Bars (for Deep-Water Fasteners) – Practical Application Scenarios
| Application Scenario | Inconel 625 Advantage | Typical Specification Requirements |
|---|---|---|
| Subsea oil well connector bolts | Seawater pitting resistance + sour H₂S + high preload retention | ASTM F468 + NACE MR0175 + 100% PT |
| Subsea Manifold Flange Studs | Thermal cycling tolerance + marine fouling resistance | ASTM F467 + API 6A + UT |
| Wellhead Hanger Fasteners | High strength + SSC (Sulfide Stress Cracking) resistance | NACE MR0175 + individual hardness testing |
| Subsea Actuator Mounting Bolts | Long-term seawater immersion + maintenance-free | ASTM F468 + Helium leak test (some) |
| Marine Instrument Mounting | Non-magnetic + biofouling resistance | ASTM F467 + Class 3A dimensional tolerance |
Inconel 625 vs Alternative Alloys for Deepwater Fasteners
| Parameter | Inconel 625 | 316L Stainless Steel | 2205 Duplex | Super Duplex 2507 | Inconel 718 |
|---|---|---|---|---|---|
| UNS Number | N06625 | S31603 | S31803 / S32205 | S32750 | N07718 |
| Material Type | Ni-Cr-Mo-Nb Solid-Solution Strengthened Alloy | Austenitic Stainless Steel (Cr-Ni-Mo) | Duplex Stainless Steel (Austenitic-Ferritic) | Super Duplex Stainless Steel (Austenitic-Ferritic) | Ni-Cr-Fe-Nb Precipitation-Hardening Alloy |
| Strengthening Mechanism | Solid Solution (Mo + Nb) | Cold Work | Cold Work + Ferrite Phase | Cold Work + Ferrite Phase | Precipitation Hardening (γ" + γ' phases) |
| Typical Deepwater Applications | Subsea tree connectors, manifold flange bolts, subsea actuator fasteners, HPHT equipment | Shallow water / low-corrosion environments, temporary facilities, non-critical components | Moderate-depth piping, moderate corrosion service, structural components | Deepwater manifolds, seawater lift pumps, high-chloride environments | Ultra-high-strength fasteners, shear bolts, high-strength connectors |
| NACE MR0175 Sour Service Compliance | Yes (annealed, hardness ≤ 35 HRC) | No – SCC risk | Limited – hardness sensitive, often restricted | Limited – hardness sensitive, often restricted | Limited – requires special heat treatment for hardness control |
| Relative Cost | High | Low | Medium | Medium-High | Very High |
| Maximum Continuous Service Temperature | ~ 980°C | ~ 425°C | ~ 280°C | ~ 280°C | ~ 650°C |
Contact our professionals to recommend the right alloy for your project
Gnee Alloy Inconel 625 Alloy Value-Added Services

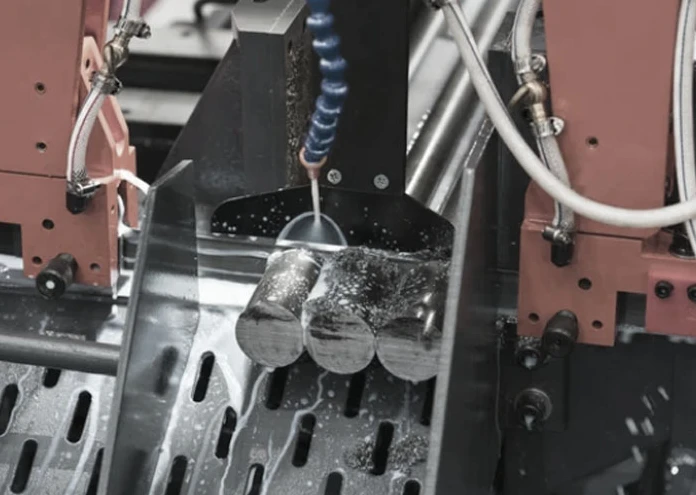

Metal Cutting Services
Custom Metal Cutting Services for Every Industry

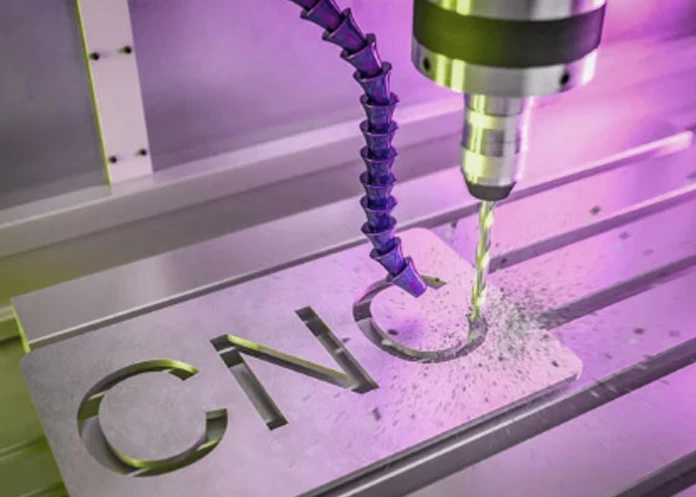

CNC Machining Services
Custom CNC Machining of Nickel Alloy Parts, Delivered in as Fast as 3 Days

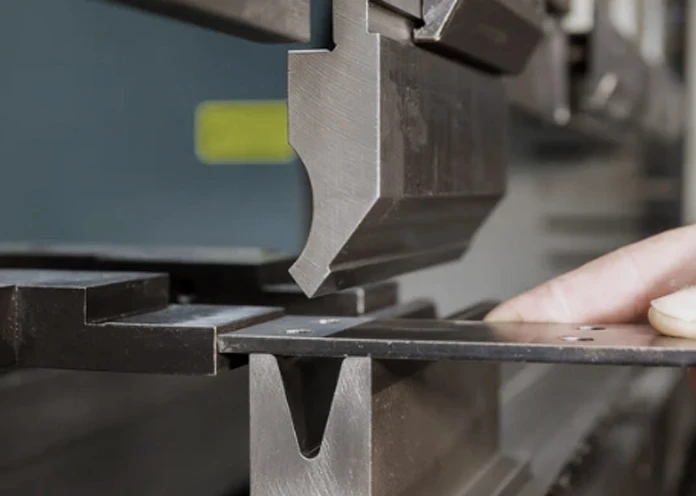

Sheet Metal Fabrication
Gnee Alloy's custom sheet metal fabrication services provide fast and cost-effective solutions for your projects
Metal Welding Services
Gnee Alloy offers a wide range of premium solutions, including custom metal welding and related services
Contact us for special processing services
Why Choose Gnee as Your Nickel-Based Alloy Supplier
✅️Manufactured according to ASTM B446 and UNS N06625 standards
✅️ISO 9001 quality management system certified
✅️Acidic environment suitable products conforming to NACE MR0175 / ISO 15156 standards are available
✅️Optional ultrasonic testing (UT), PMI certification, and intergranular corrosion testing (ASTM G28)
✅️Third-party inspection accepted: SGS, TÜV, BV, DNV, and other major certification bodies.
Gnee Alloy inconel 625 Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Alloy 625 Alloy Product Packing
Contact us for the latest export price quote for 625 Alloy
FAQ
Q: Can Inconel 625 be used for long-term deep-sea immersion?
A: Yes. Inconel 625 is widely specified for long-term subsea operations at depths of 3000 meters and above and has proven its resistance to pitting and crevice corrosion in seawater over extended periods.
Q: Can Inconel 625 resist sulfide stress cracking in acidic subsea oil fields?
A: With controlled chemical composition and hardness, Inconel 625 meets NACE MR0175 / ISO 15156 standards under many acidic environmental conditions. Please be sure to confirm your specific hydrogen sulfide partial pressure with our technical team.
Q: Why not use Super Duplex Stainless Steel for subsea fasteners to save costs?
A: Super Duplex Stainless Steel has good strength, but it has a higher risk of crevice corrosion in tight bolted connections and is more prone to hydrogen embrittlement and stress cracking at high temperatures. For products designed for a lifespan exceeding 20 years, Inconel 625 has a much lower lifecycle risk.
Q: Which ASTM standard applies to Inconel 625 fastener bars?
A: ASTM B446 is the standard specification for nickel alloy bars, including UNS N06625. It is the specification for the raw materials used in the manufacture of Inconel 625 underwater fasteners.
Q: Do you supply finished Inconel 625 underwater bolts and studs?
A: Yes. We supply both raw material bars required by fastener manufacturers and finished machined/threaded fasteners according to customer drawings. Please contact us with your specific requirements so we can provide you with a customized quote.
