Monel 400 Pipe Fitting
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of monel 400 pipe fitting in China. If you're going to wholesale high quality monel 400 pipe fitting made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Monel 400 Pipe Fitting description
Gnee Steel is a well-known Chinese supplier in the foreign trade sector, renowned globally for its high-quality Monel 400 pipe fittings. Gnee Steel manufactures these fittings using premium Monel alloy. Monel 400 is a high-performance alloy composed of copper and nickel, possessing high strength. It exhibits good alkali resistance, acid resistance, ductility, and thermal conductivity, and can be easily hardened through cold working. This alloy is suitable for a wide range of applications from -0°C to 538°C.
GNEE Monel 400 Pipe Fitting
Monel 400 fittings are made of an extremely high-strength alloy capable of withstanding heavy loads and working stresses. The manufacturing process requires extremely high pressure, resulting in exceptionally high strength and tensile strength. It exhibits excellent fatigue resistance. Even with continuous exposure to harmful acids and compounds, it does not experience wear or corrosion. It possesses strong resistance to crevice corrosion, pitting, and surface deformation. Monel 400 is manufactured using a solid solution process, involving heat treatment and rapid annealing.
Monel 400 fittings have a high melting point, enabling them to operate in high-temperature environments. They maintain good performance in marine applications and are resistant to oxidation. Furthermore, these fittings are widely used in power generation, oil and gas processing, and heat exchangers. They also possess good formability.
At Gnee Steel, we offer high-quality monel 400 Fitting in various sizes and thicknesses, and provide custom cutting, surface treatment, and global delivery services to meet your specific project needs.
Monel 400 Pipe Fitting Specification
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
Monel 400 Pipe Fitting Specification
Alloy 400 Pipes Fitting Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel 400 Pipes Fitting Chemical Composition
| Grade | C | Mn | Si | Cu | S | Ti | Ni | Al | Fe |
| Monel 400 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.02 max | - | 63.0 min | 0.50 max | 1.0 – 2.5 |
Alloy 400 Pipes Fitting Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
400 Monel Pipe Fittings Manufacturing Process
400 Monel Pipe Fittings Manufacturing Process
Monel 400 Pipe Fitting Technical Data Sheet
Monel Metal 400 Alloy Tee Dimension
| NPS Of Equal Tee | Outside Daimeter (O.D.) at bevel |
Center-to-End | |
|---|---|---|---|
| (C) Run | (M) Outlet | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
Monel 400 Alloy Elbow Dimensions
| Normal Size Of Pipe | Outside Dai Of (D) | 90 degree (Long Radius) Center-to-End (A) |
45 degree (Long Radius) Center-to-End (B) |
90 degree (3D) Center-to-End (A) |
45 degree (3D) Center-to-End (B) |
| 1/2 | 21.3 | 38 | 16 | – | – |
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1¼ | 42.2 | 48 | 25 | 95 | 39 |
| 1½ | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2½ | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3½ | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
| 18 | 457 | 686 | 286 | 1372 | 568 |
| 20 | 508 | 762 | 318 | 1524 | 632 |
| 22 | 559 | 838 | 343 | 1676 | 694 |
| 24 | 610 | 914 | 381 | 1829 | 757 |
| 26 | 660 | 991 | 406 | 1981 | 821 |
| 28 | 711 | 1067 | 438 | 2134 | 883 |
| 30 | 762 | 1143 | 470 | 2286 | 964 |
| 32 | 813 | 1219 | 502 | 2438 | 1010 |
| 34 | 864 | 1295 | 533 | 2591 | 1073 |
| 36 | 914 | 1372 | 565 | 2743 | 1135 |
| 38 | 965 | 1448 | 600 | 2896 | 1200 |
| 40 | 1016 | 1524 | 632 | 3048 | 1264 |
| 42 | 1067 | 1600 | 660 | 3200 | 1326 |
| 44 | 1118 | 1676 | 695 | 3353 | 1389 |
| 46 | 1168 | 1753 | 727 | 3505 | 1453 |
| 48 | 1219 | 1829 | 759 | 3658 | 1516 |
Monel 400 Pipe Fittings Dimensions
| Normal Pipe Size For (NPS) | Outside Daimeter For (O.D.) | Buttweld 90 Deg Elbow | Buttweld 45 Deg Elbow | Buttweld Return 180 Deg Elbow | ||||
|---|---|---|---|---|---|---|---|---|
| (In Inches) | Buttweld LR Elbow | Buttweld SR Elbow | Buttweld LR Elbow | Buttweld LR Elbow | ||||
| (MM/ millimeter) | (Inches/ inch.) | Center to Face (In Inch) |
Center to Face (In Inch) |
Center to Face (In Inch) |
Radius (In Inch) |
Center to Center (In Inch) |
Back to face (In Inch) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
The delivery time for Monel 400 Pipe Fitting varies depending on the location
| Cost Changes 5 % extra | |
|---|---|
| Export to | Delivery Time |
| UAE | 5 days |
| Qatar | 7 |
| France | 30 |
| Kuwait | 10 |
| USA | 40-60 |
| Saudi Arabia | 7 |
| Oman | 5 |
| Italy | 30 |
| Uk | 30 |
Monel 400 Pipe Fitting are in stock and available for immediate shipment to meet urgent needs

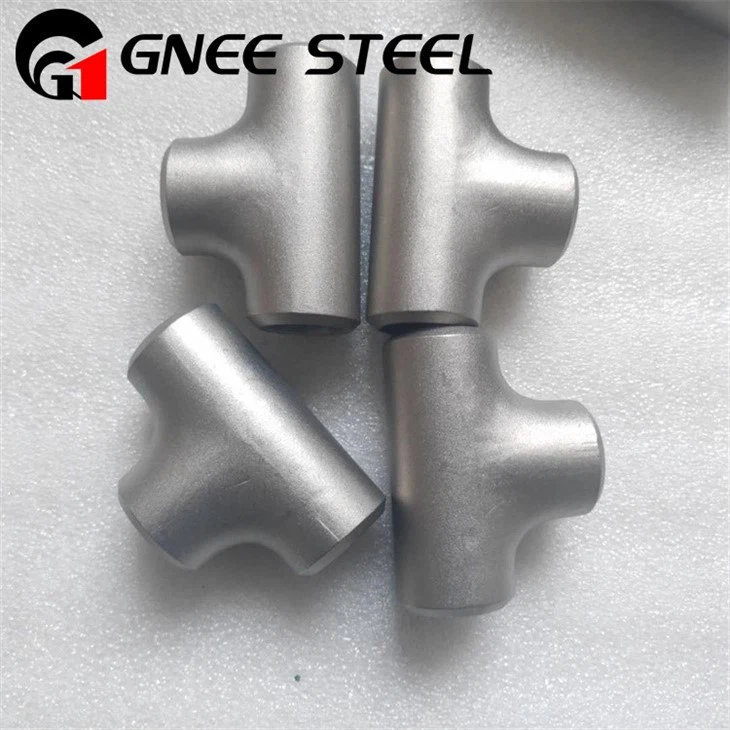

Nickel 400 Equal Tee
Nickel Alloy 400 45° Long Radius Elbow

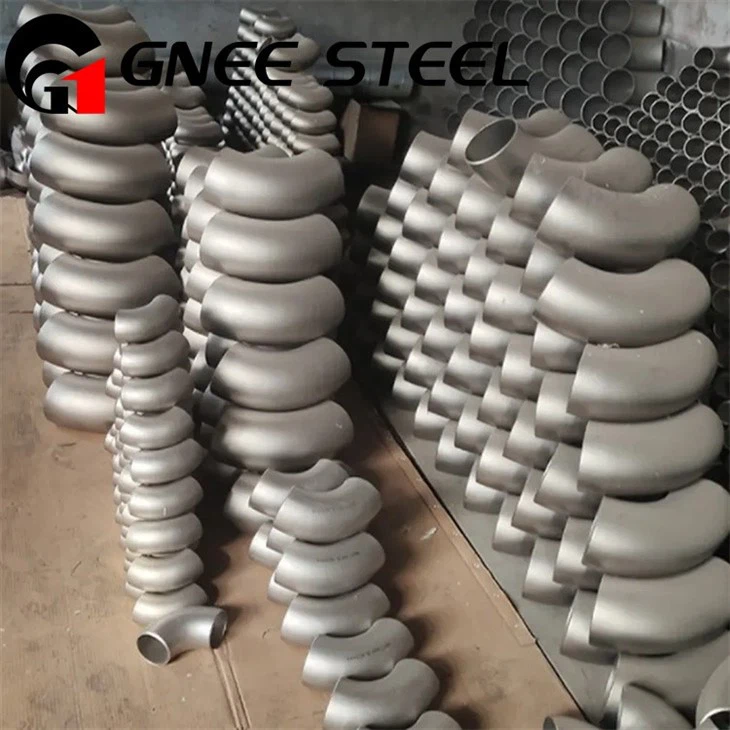

Nickel 400 90° Long Radius Elbow
Alloy 400 Reducers

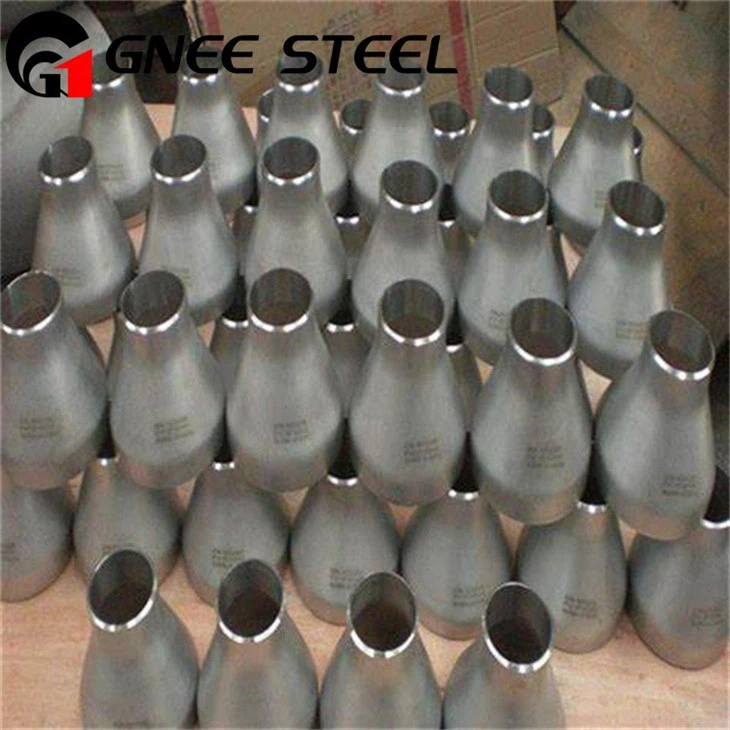

Monel 2.4360 Concentric Reducer
Monel 400 Alloy Eccentric Reducer
Monel 400 End Cap
Monel Alloy 400 Stub End
Alloy 400 Straight Tees and Crosses
Products and services offered by Gnee Steel
Applications of Monel 400 Fitting
Petrochemical Industry
Chemical Industry
Oil and Gas Industry
Pulp and Paper Industry
Power Plant Industry
Food Processing Industry
Pharmaceutical Industry
Energy Industry
Aerospace Industry
Packaging method for Alloy 400 Fitting
Gnee Steel uses the safest and most effective packaging methods for all types of cargo transportation. Our packaging methods include:
Wooden crates
Wooden pallets
Shrink wrap packaging
Cardboard boxes
Wooden crates (slatted)
Alloy 400 Pipe Fittings Price List
| Price List of Monel 400 Pipe Fittings | Alloy 400 Pipe Fittings Price in India (INR) | Monel Alloy 400 Pipe Fittings Price in USD | Monel 400 Pipe Fittings Price in UAE (Dirham) |
|---|---|---|---|
| Price of Monel 400 90 Deg Elbow | ₹ 1742 | $ 36.78 USD | 75.30 AED |
| Nickel Alloy 400 Reducer Price Per Kg | ₹ 484 | $ 4.85 USD | 24.50 AED |
| Monel Alloy 400 Pipe Fittings Price List | ₹ 2420 | $ 22.21 USD | 132.27 AED |
| Monel 400 Elbow Price | ₹ 421 | $ 4.85 USD | 26.50 AED |
| Monel 400 45 Degree Elbow Price | ₹ 5204 | $ 65.17 USD | 256.30 AED |
| 400 Monel Weld Fittings Prices | ₹ 1257 | $ 14.00 USD | 64.44 AED |
| Monel 400 Elbow Price List | ₹ 931 | $ 17.33 USD | 49.61 AED |
| Monel 400 Bend Price | ₹ 1324 | $ 14.82 USD | 54.11 AED |
About Gnee Steel
Request the latest Monel 400 Fitting price list. Please call +8615824687445 or email ss@gneesteel.com for information on available stock and the latest price list for Nickel 400 Fitting.
Please contact us to get a quick quote for the Monel 400 Fitting you need
We supply these Monel 400 Fitting and tubes according to DIN, ISO, JIS, or ANSI/ASME standards.
FAQ
Q: What are the applications of Monel 400 pipe fittings?
A: Due to the excellent corrosion resistance of Monel 400 pipe fittings, their applications in various corrosive environments are listed below:
For example, they are widely used in the pharmaceutical industry.
Heat exchangers typically use Monel 400 concentric reducers.
Seawater environment equipment also requires Monel 400 pipe fittings.
Nickel 400 eccentric reducers are used in the following industries: offshore oil drilling, natural gas processing, and power generation.
Q: What specifications and standards do Monel 400 pipe fittings comply with?
A: The specifications for Monel 400 short pipes are ASTM B 366/ASME SB 366.
In addition, ASME/ANSI B16.9, ASME B16.28, and MSS SP 43 are also standards for this type of pipe fitting. These standards cover testing, ratings, tolerances, and dimensions for pipe fittings with nominal sizes from NPS ½ to NPS 48.
Q: What are the machining conditions for Monel 400 pipe fittings in high and low temperature environments?
A: In high-temperature environments, precise temperature selection is required. Ideally, the typical temperature range is between 1200-21500°F.
On the other hand, in low-temperature environments, we need to use softer materials to improve the smoothness of the machined surface.
