In the field of high-performance materials, engineers are often drawn to novel specialty alloys. However, for purchasing managers and senior designers, the biggest challenge lies in balancing risk and performance.
The challenge is that choosing niche alloys often means dealing with limited supply chains, extremely high processing difficulty, and unpredictable weld failures. This is why GH4169 (equivalent to Inconel 718) is hailed as the "dominant gene" among high-temperature alloys. It is the only material that can solve 80% of high-temperature engineering problems with zero risk.
At Gnee Steel, we leverage this global leadership to provide the most cost-effective solutions for your high-risk projects.
Check today's GH4169 inventory and wholesale price
Why Inconel 718 (GH4169) superalloy dominates the market?
Why Inconel 718 (GH4169) superalloy dominates the market?
Inconel 718 (also known as GH4169) dominates the high-temperature alloy market, holding over 50% market share in the aerospace high-temperature alloy sector, thanks to its unparalleled strength, excellent corrosion resistance, and superior weldability at temperatures up to 650–700°C. Its market dominance stems from its ability to maintain structural integrity under extreme high-stress environments, while also being more cost-effective and easier to process than other high-performance alloys.
Is Inconel 718 a high-temperature alloy?
Inconel 718 is a high-strength, corrosion-resistant nickel-based high-temperature alloy. It possesses excellent mechanical properties, high-temperature strength, and resistance to oxidation and corrosion.
1. Chemical composition (wt%) of GH4169 and other key alloys
| Element | GH4169 (Inconel 718) | Inconel 625 | René 41 | Key Differences |
|---|---|---|---|---|
| Nickel (Ni) | 50.0 – 55.0 | 58.0 min (Balance) | Balance (~55-60) | René 41 ≈ Inconel 625 > GH4169 |
| Chromium (Cr) | 17.0 – 21.0 | 20.0 – 23.0 | 18.0 – 20.0 | Inconel 625 highest |
| Iron (Fe) | Balance (~18-20) | ≤ 5.0 | ≤ 2.0 | GH4169 has much higher Fe |
| Molybdenum (Mo) | 2.80 – 3.30 | 8.0 – 10.0 | 9.0 – 10.5 | René 41 ≈ Inconel 625 (3× GH4169) |
| Niobium (Nb) | 4.75 – 5.50 | 3.15 – 4.15 | – | GH4169 unique (γ″ former) |
| Titanium (Ti) | 0.65 – 1.15 | ≤ 0.40 | 3.0 – 3.3 | René 41 has highest Ti |
| Aluminum (Al) | 0.20 – 0.80 | ≤ 0.40 | 1.4 – 1.8 | René 41 has highest Al |
| Cobalt (Co) | ≤ 1.00 | ≤ 1.0 | 10.0 – 12.0 | René 41 contains significant Co |
| Carbon (C) | ≤ 0.08 | ≤ 0.10 | 0.06 – 0.12 | Similar |
| Manganese (Mn) | ≤ 0.35 | ≤ 0.50 | ≤ 0.10 | Similar |
| Silicon (Si) | ≤ 0.35 | ≤ 0.50 | ≤ 0.50 | Similar |
| Phosphorus (P) | ≤ 0.015 | ≤ 0.015 | – | Similar |
| Sulfur (S) | ≤ 0.015 | ≤ 0.015 | – | Similar |
| Boron (B) | 0.002 – 0.006 | – | 0.003 – 0.010 | All contain trace B |
| Copper (Cu) | ≤ 0.30 | ≤ 0.07 | ≤ 0.20 | – |
| Tungsten (W) | – | – | – | None contain significant W |
Click to download the GH4169 alloy PDF file now
2. Comparison of GH4169 properties with other alloys
| Property | GH4169 (Alloy 718) | Inconel 625 | Rene 41 |
| Yield Strength (650°C) | ≥ 850 MPa | ~ 350 MPa | ~ 750 MPa |
| Weldability Rating | Excellent (Elite) | Good | Poor (Crack Sensitive) |
| Temp Range (°C) | -253 to 700 | -196 to 600 | 20 to 870 |
| Availability | Massive (Wholesale) | High | Rare / Expensive |
| Commercial Verdict | Zero-Risk Choice | Corrosion Only | Niche High-Heat |
3. GH4169 alloy's main applications include
Aerospace: Jet engine components, turbine blades, casings, discs, and rocket engine components.
Oil & Gas: Downhole tools, wellhead components, and valves exposed to high-pressure, corrosive acidic gases.

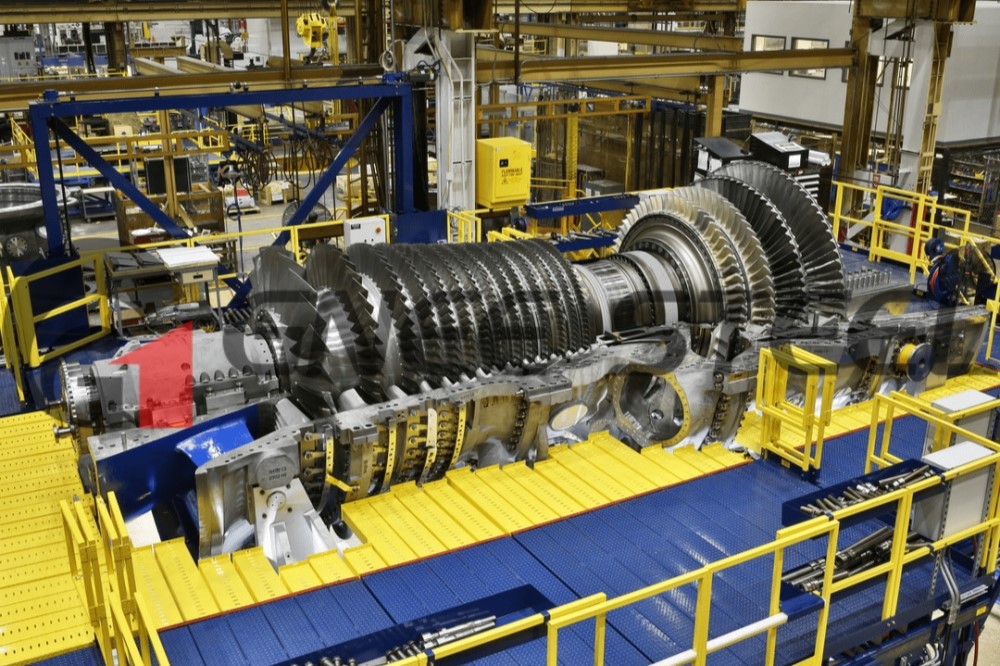

Power Generation: Gas turbine and nuclear reactor components.
Motorsports: Turbocharger rotors and exhaust systems.
4. Available Forms and Applications of GH4169
As a market leader in GH4169, its supply chain boasts one of the most mature systems globally. We offer a comprehensive range of supply solutions:
Forged Bars: Large-diameter shafts and turbine discs.
Seamless Tubes: High-pressure fuel and hydraulic lines.
Sheets: Combustion chamber liners and heat shields.
Additive Manufacturing: High-purity GH4169 powder for 3D printing (SLM/DMLS).
Why choose to source GH4169 from Tier 1 manufacturer Gnee Alloy?
✅️Direct Factory Pricing: We leverage massive economy-of-scale production to lower your per-kg cost.
✅️VIM + VAR Melting: Mandatory double-vacuum melting ensures the ultra-purity required for the "Dominant Gene" to perform.
✅️MTC 3.1 Traceability: Full EN 10204 3.1 certification provided with every batch.
✅️Fast Global Shipping: Optimized logistics to major hubs in the USA, Europe, and Asia.
Gnee Steel GH4169(inconel 718) Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Steel GH4169 Product Packing
Contact us for the latest export price quote for GH4169 Alloy
FAQ
Q1: Can GH4169 really replace specialized alloys in my project?
A: In 80% of cases, Yes. Unless your service temperature is consistently above 800°C or you require extreme acid resistance, GH4169 provides a more Reliable Supply and easier fabrication at a better price point.
Q2: Why is the supply of GH4169 more stable than other superalloys?
A: Because it is the most used superalloy in the world (over 50% of all nickel alloy production), the raw material flow and manufacturing capacity are unmatched. We maintain a Wholesale Inventory to ensure you never face a stockout.
Q3: Is GH4169 suitable for the Oil & Gas industry?
A: Absolutely. It is the premier choice for downhole tools and wellhead components. Our GH4169 is processed to be fully NACE MR0175 compliant for sour gas service.
Q4: Do you offer bulk discounts for aerospace MRO programs?
A: Yes. As a Tier-1 Manufacturer, we offer tiered pricing and dedicated stock reserves for long-term maintenance and overhaul contracts.
