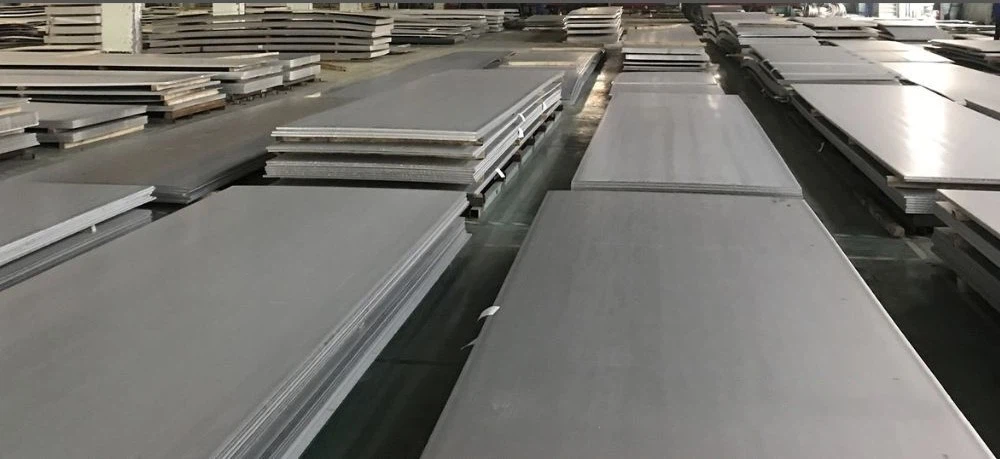

Gnee Steel is one of the most trusted manufacturers, distributors, and exporters of Inconel 718 and 825 plates and coils on the market. Inconel 718 plates offer excellent oxidation and corrosion resistance. The carbon content of 718 alloy plates and coils is a maximum of 0.08%, while that of 825 alloy plates and coils is a maximum of 0.05%. Gnee Steel's Inconel 718/825 products undergo standardized processing and inspection, resulting in excellent machinability, weldability, and ductility.
Inconel 718 vs. Incoloy 825 sheet metal
Gnee Steel
Inconel 718 vs. Incoloy 825 sheet metal
Inconel 718 is a high-strength, precipitation-hardening nickel-based alloy with excellent heat resistance, fatigue resistance, and creep resistance, with a maximum temperature resistance of 650°C (1200°F), making it an ideal material for aerospace and gas turbines. Incoloy 825, on the other hand, is an iron-nickel-chromium alloy characterized by excellent corrosion resistance, especially in acidic, phosphate, and marine environments, and also exhibits higher ductility than Inconel 718.
Gnee Steel
What are the limitations of Inconel 718?
Due to the relatively low thermal conductivity of nickel-based alloys such as Inconel 718, heat tends to accumulate at the tool tip during machining. This can lead to excessive tool wear, shortening tool life or reducing machining speed.
Specification For Inconel 718 / Incoloy 825 Sheets
| Specification | ASTM B670, B424 / ASME SB 670, SB 424 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER'S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
Equivalent Grades Of Inconel 718 / 825 Plates
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Inconel 718 | N07718 | 2.4668 | – | – | NCF 718 | – | – | – |
| Incoloy 825 | N08825 | 2.4858 | NFE30C20DUM | NiCr 21 Mo | NCF 825 | NA 16 | ЭП703 | XH38BT |
Various types of Inconel 718/825 sheets
Inconel 718 / 825 Coils
Incoloy Alloy 825 Cold Rolled Coils
Inconel® Alloy 718 HR Coil
Incoloy 825 Shim Coils
Inconel N08825 Coil
Inconel N07718 Coils
Incoloy Alloy 825 Coils
NCF 718 Coil
Alloy 825 Coil
Alloy 718 Slit Coils
Inconel 2.4668 Coils
Incoloy Alloy 825 Coil
Nickel Alloy 2.4858 Coils
Inconel 718 / 825 Perforated Sheet
Incoloy 825 Perforated Sheets
Inconel UNS N08825 Perforated Sheets
Nickel Alloy 2.4668 Perforated Sheets
Inconel Alloy 718 HR Perforated Sheet
Incoloy 825 Hot Rolled Perforated Sheet
NCF 825 Perforated Sheet
ASME SB670 718 Perforated Sheets
Alloy 718 Perforated Sheets
Inconel 718 / 825 Shim Sheet
Alloy 718 Shim Sheet
Alloy 2.4858 Shim Sheet
Nickel Alloy 2.4668 Shim Sheets
Incoloy Alloy 825 Shim Sheets
NCF 718 Shim Sheet
Alloy 825 Shim Sheets
718 Inconel CR Shim Sheets
Incoloy 825 Shim Sheets
Inconel N07718 Shim Sheets
Inconel N08825 Shim Sheet
Inconel 718 / 825 Sheets Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 | _ | _ |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
718 / 825 Inconel Plates Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Inconel 718 / Alloy 825 Plates Thickness Chart
| Inconel Gauge Chart* | ||
| Gauge Number |
Inches | MM |
| 8 | .17187 | 4.365 |
| 9 | .15625 | 3.968 |
| 10 | .14062 | 3.571 |
| 11 | .125 | 3.175 |
| 12 | .10937 | 2.778 |
| 14 | .07812 | 1.984 |
| 16 | .0625 | 1.587 |
| 18 | .050 | 1.270 |
| 20 | .0375 | .9525 |
| 22 | .03125 | .7937 |
| 24 | .025 | .635 |
| 26 | .01875 | .476 |
| 28 | .01562 | .396 |
| 30 | .0125 | .3175 |
Inconel 718 / 825 Plates Weight / Size
| WEIGHT PER INCOLOY SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Inconel 718 / 825 Sheets Thickness Tolerance
| Thickness in. (mm) |
Sheet / Plates Width | |
| 36 (914.4) in. (mm |
48 (1,219) in. (mm) |
|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
