Are you tired of replacing furnace bars every few months? If you're currently using 310S (AISI 310S/2520) stainless steel as load-bearing components at 800°C, you've likely fallen into the trap of "brittle fracture." While 310S is affordable, its iron-based chemistry can lead to a hidden defect that eventually causes catastrophic cracking.
It's time to upgrade your materials. Our GH3030 (Nimonic 75) nickel-based alloy round bars are the ideal alternative. By switching from high-alloy steel to true superalloys, you gain a significantly longer service life that standard stainless steel simply cannot match.
Get a Factory-Direct Quote for GH3030 Bars
Cost Comparison of GH3030 and 310S (2520) Round Bars
Cost Comparison of GH3030 and 310S (2520) Round Bars
GH3030 and 310S are both high-temperature materials, usually supplied in the form of round bars, but due to their different compositions, they meet different engineering requirements-the former is a nickel-based high-temperature alloy, and the latter is a high-chromium stainless steel.
What are the components of GH3030?
GH3030 is a solid solution strengthened superalloy, primarily composed of nickel (Ni) and chromium (Cr), typically with 80% Ni and 20% Cr. This simple yet efficient alloy system provides excellent mechanical and chemical stability even under harsh conditions.
Both GH3030 and 310S are high-temperature materials, typically supplied in round bar form. However, due to their different compositions (the former is a nickel-based superalloy, while the latter is a high-chromium stainless steel), they meet different engineering requirements.

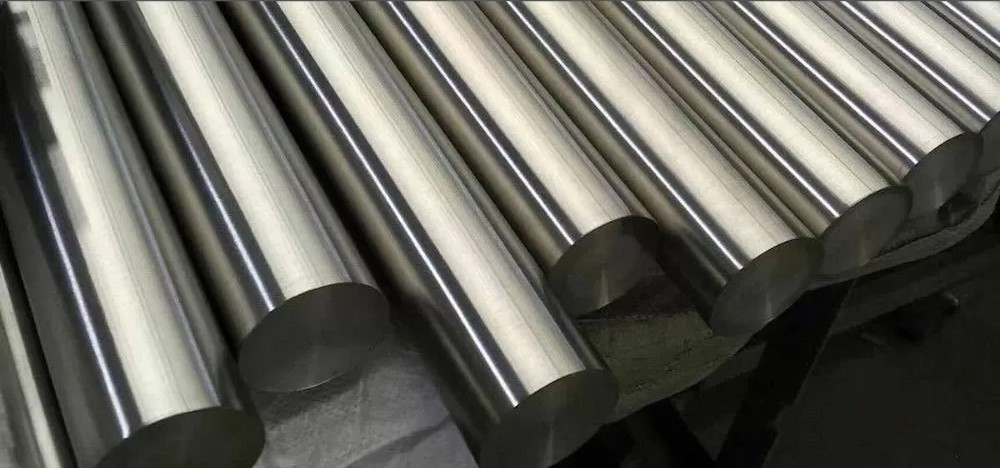

GH3030 round bars are an 80Ni-20Cr solid solution strengthened nickel-based superalloy with excellent oxidation resistance and high strength, typically used in temperature ranges from 800°C to below 1100°C.
310S stainless steel bars (UNS S31008/1.4845) are a low-carbon austenitic stainless steel that maintains excellent oxidation resistance even at temperatures up to 1100°C under continuous use.
Contact our professionals to recommend alloys suitable for your project
1.Comparison of chemical composition (weight percentage) of GH3030 and 310S Bar
| Element | GH3030 (Superalloy) | 310S (Stainless Steel) | Impact on Performance |
| Nickel (Ni) | Balance (~80.0%) | 19.0 - 22.0% | Ni ensures thermal stability |
| Chromium (Cr) | 19.0 - 22.0% | 24.0 - 26.0% | Both offer oxidation resistance |
| Iron (Fe) | ≤ 1.5% | Balance | Fe is the source of brittleness |
| Titanium (Ti) | 0.15 - 0.35% | - | Ti stabilizes the microstructure |
| Refining | VIM + ESR | Standard AOD/EAF | GH3030 has higher purity |
Mechanical properties of GH3030 and 310S bars (at room temperature)
| Property | GH3030 Round Bar | 310S Round Bar |
| Tensile Strength (σbσb) | ≥ 735 MPa | ≥ 520 MPa |
| Yield Strength (σ0.2σ0.2) | ≥ 245 MPa | ≥ 205 MPa |
| Elongation (δ5δ5) | ≥ 35% | ≥ 40% |
| Matrix Type | Nickel-Chromium | Iron-Chromium-Nickel |
| Service Life @ 800°C | 3x to 5x Longer | Standard / Short |
Click to download the GH3030 alloy PDF file now
2.Advantages and Applications of GH3030 and 310S Round Bars
GH3030 Round Bar
Properties: After solution treatment, it possesses high plasticity and a stable single-phase austenitic structure.

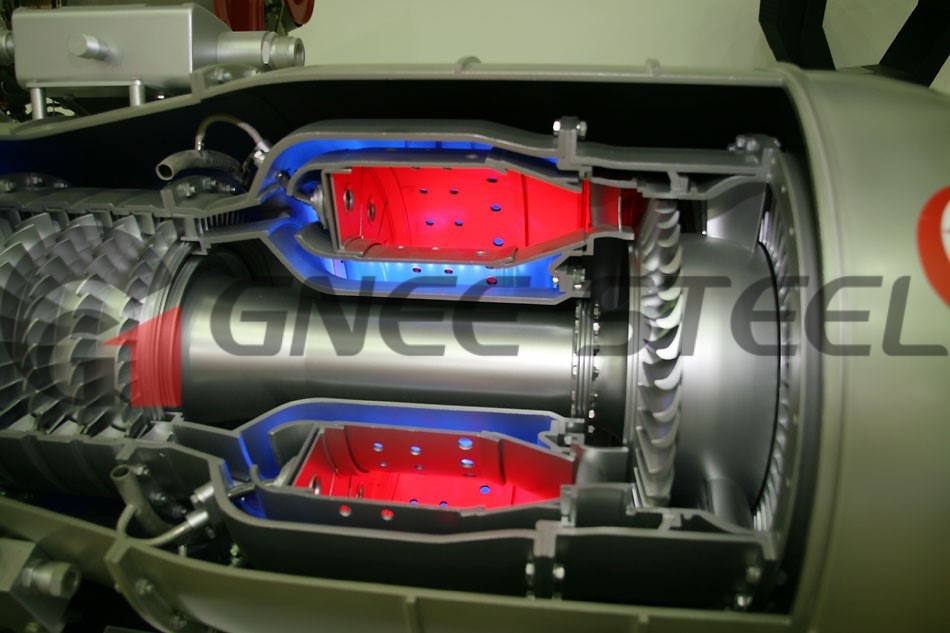

Applications: Used in aircraft engine combustion chambers, afterburners, and high-temperature load-bearing components.
310S Round Bar
Properties: It has good resistance to carburization and sulfidation, making it suitable for environments commonly found in petrochemical industries.

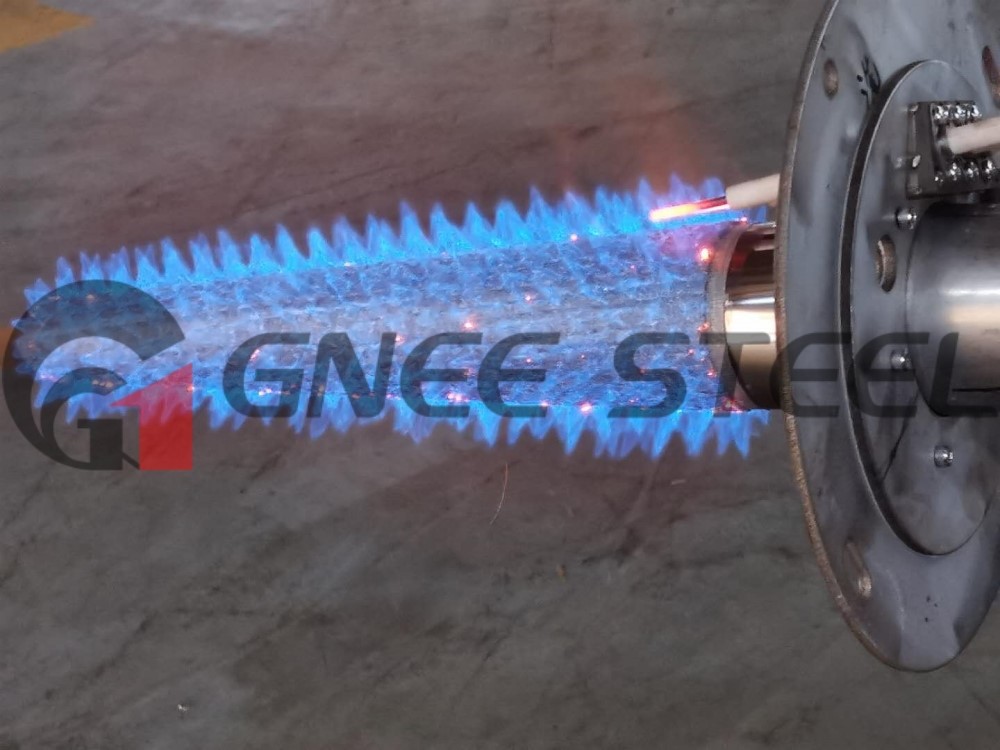

Applications: Widely used in furnace components, heat exchanger tubes, kiln linings, and burners.
3. Why Choose Our GH3030 Bars? (10mm - 300mm)
Gnee Steel, a leading and trusted manufacturer in China, offers high-purity GH3030 round bars, tailored for the global wholesale market.
Diameter Range: From 10mm to 300mm, suitable for a wide range of applications from precision fasteners to heavy-duty structural shafts.
Superior Surface Finishes:
Bright Polish (h9/h10): Ideal for precision CNC machining, ensuring tight machining tolerances.

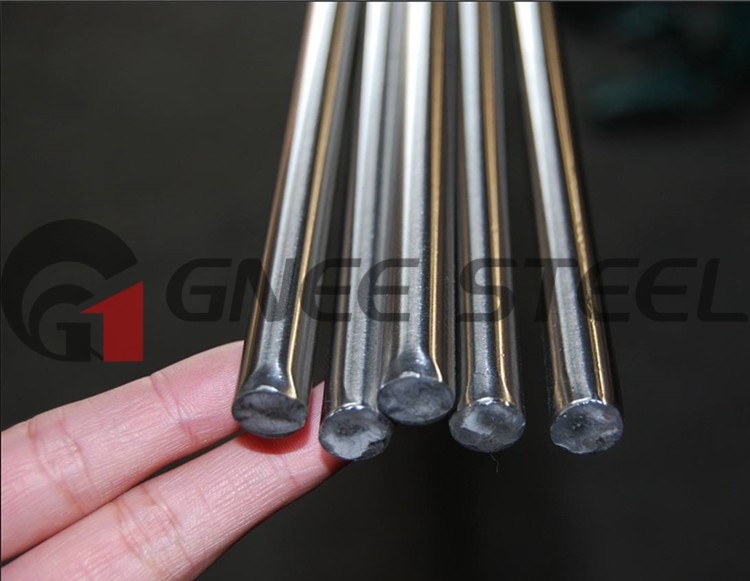

Peeled Surface: A cost-effective solution for forging workshops seeking zero surface defects.
Vacuum Assisted Melting (VIM) + Electroslag Remelting (ESR) Refining: Our bars undergo dual refining via vacuum/electroslag remelting to ensure zero inclusions and maximize their resistance to thermal fatigue.
4. Reaction of 310S Stainless Steel Bars with GH3030 Alloy Bars at 800°C
One of the biggest challenges faced by industrial furnace operators is σ-phase embrittlement.
The problem with 310S: 310S is an iron-based austenitic steel. When exposed to high temperatures of 600°C to 900°C for extended periods, a brittle intermetallic compound, the "σ phase," forms. This makes the steel bar as brittle as glass, prone to sudden fracture under thermal shock or heavy pressure.
The advantages of GH3030: As a nickel-based superalloy (80% nickel content), GH3030 does not form the σ phase. Its face-centered cubic (FCC) matrix maintains excellent ductility and stability even at 800°C. Even after thousands of hours of use, it retains the high plasticity required to withstand vibration and mechanical loads.
Please request a quote for GH3030 round bars
5. Cost-efficiency table for GH3030 round bars and 310S stainless steel bars
| Comparison Dimension | GH3030 Nickel-Based Superalloy Bar | 310S (2520) Heat-Resistant Stainless Steel Bar | Impact on ROI |
|---|---|---|---|
| Alloy Matrix | Nickel-Base (~80% Ni) | Iron-Base (~50% Fe) | Nickel-based is more stable at high temperatures, resistant to oxidation and deformation. |
| Refining Process | VIM+ESR (Vacuum Induction Melting + Electroslag Remelting) | Standard AOD/EAF Electric Arc Furnace Melting | VIM+ESR ensures ultra-high purity, no risk of cracking from inclusions. |
| Embrittlement Risk at 800°C | None (No σ phase formation) | High (σ phase readily forms during long-term service) | GH3030 maintains high plasticity long-term; 310S becomes brittle like glass. |
| Oxide Scale Spallation | Excellent (Oxide film is dense and does not spall) | Fair (Oxide scale easily spalls, contaminating workpieces) | Reduces product scrap rate and protects the furnace environment. |
| Replacement Frequency (Maintenance Cycle) | Low (Service life is 3-5 times that of 310S) | High (Frequent downtime for replacement of damaged parts) | Significantly reduces downtime and labor maintenance costs. |
| Diameter Range | 10mm – 300mm (Full size in stock) | Mainly common small to medium specifications | Meets various needs from precision fasteners to heavy-duty shafts. |
| Initial Procurement Unit Price | Higher (Wholesale Factory Price) | Lower | Although unit price is higher, the cost per unit of service time is lower. |
| Total Cost of Ownership (TCO) | Extremely Low (Most cost-effective solution for long-term operation) | Higher (Indirect losses due to failure downtime) | Achieves 40%-60% reduction in annual operation and maintenance budget. |
Request the GH3030 vs 310S lifespan comparison test white paper
Why Choose Gnee as Your Nickel-Based Alloy Supplier
✅ Over 18 years of export experience, products sold to more than 80 countries
✅ Certified by ISO, SGS, and BV
✅ Global inventory of Inconel, Hastelloy, Incoloy, and Monel alloy tubing, plates, and bars
✅ Custom processing services available – including cutting, polishing, CNC machining, and packaging
✅ Fast delivery within 7-15 days, supported by global logistics partners
Gnee Steel GH3030 Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Steel GH3030 Product Packing
Contact us for the latest export price quote for GH3030 Alloy
FAQ
Q1: How much can I realistically save by switching from 310S to GH3030?
A: While the Wholesale Price of GH3030 is higher, a Cost-Benefit Analysis shows that because GH3030 lasts 3-4 times longer, your annual maintenance cost (including labor and downtime) typically drops by 40% to 60%.
Q2: Is GH3030 as weldable as 310S stainless steel?
A: Yes. GH3030 is famous for its Excellent Weldability. It can be easily joined to other high-temperature components using standard TIG or MIG processes, making it a seamless Replacement Solution.
Q3: Does GH3030 maintain its strength better than 310S?
A: Absolutely. At 800°C, 310S becomes extremely soft and prone to "creeping" (stretching), whereas GH3030 maintains the structural integrity required for furnace rollers, hangers, and load-bearing bolts.
Q4: Can you provide bright ground bars for CNC screw machines?
A: Yes. We specialize in Bright Ground GH3030 bars with precision tolerances. They are CNC Ready, reducing your secondary machining time and tool wear.
