In the field of thermal engineering, choosing the wrong alloy can lead to either safety hazards or budget disaster. For purchasing managers and designers, the biggest pain point lies in the gap between material costs and requirements.
Pain Point: Many engineers specify GH4169 (equivalent to Inconel 718) for simple furnace baffles or static heat shields simply because it's considered the "best" material. However, GH4169 is significantly more expensive. Conversely, using the more affordable GH3030 (equivalent to Nimonic 75) for rotating turbine shafts can result in catastrophic creep failure within hours.
At Gnee Steel, we eliminate this uncertainty. We provide cost-effective solutions by matching the metallurgical "advantages" of a material to your specific industrial environment.
Request a GH4169 seamless pipe price quote
A Comparison Guide to the Economy and Heat Resistance of GH4169 and GH3030 Superalloy Tubes
A Comparison Guide to the Economy and Heat Resistance of GH4169 and GH3030 Superalloy Tubes
This guide compares two nickel-based superalloys, GH4169 (UNS N07718/Inconel 718) and GH3030 (UNS GH30/XH78T), which are commonly used in high-temperature tubing applications. The choice of which alloy to use depends on striking a balance between excellent high-temperature strength and the requirements of low cost and high ductility.
What is GH4169 equivalent to?
Inconel 718
GH4169 (equivalent to the American brand Inconel 718) is a precipitation-hardening nickel-based superalloy widely used in the aerospace industry due to its excellent mechanical properties (Lu et al., 2014).
Comparison of the superior properties of GH3030 (Nimonic 75) and GH4169 alloys

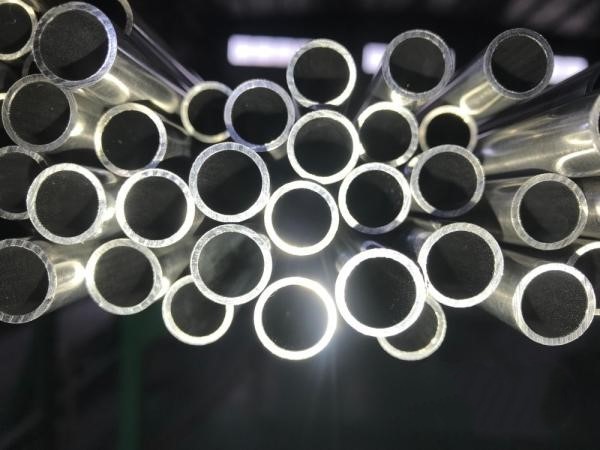

GH3030 (Nimonic 75) Pipe
GH3030 is a solid-solution strengthened nickel-chromium alloy. It doesn't rely on complex aging; its strength is built into the matrix.
Primary Advantage: Exceptional Oxidation Resistance up to 800°C (1472°F).
Fabrication Excellence: Highly plastic and remarkably easy to weld. It is the perfect choice for complex-shaped furnace components.
Cost Profile: Budget-friendly. It provides high Industrial Durability for parts that don't carry heavy mechanical loads.
GH4169 (Alloy 718) superalloy tube
GH4169 is a precipitation-hardened superalloy strengthened by the γ′′ (Gamma Double Prime) phase. It is engineered for the most punishing high-load environments.
Primary Advantage: Elite yield strength and Creep-Rupture Life at temperatures up to 700°C.
Structural Role: It maintains its "stiffness" under intense mechanical or centrifugal forces where other alloys would sag or deform.
Cost Profile: Premium investment. Necessary for flight-safety components and high-pressure energy systems.
3. Comparison of GH4169 and GH3030 pipe technologies
| Technical Feature | GH3030 (Static Specialist) | GH4169 (Load Specialist) | Commercial Impact |
| Strengthening Method | Solid Solution (Cr, Ti) | Precipitation Hardening (
γ′′γ′′ ) |
GH4169 requires complex aging. |
| Yield Strength at 650°C | ~ 200 MPa | ≥ 850 MPa | GH4169 is 4x stronger under load. |
| Max Service Temp (Static) | 800°C - 900°C | 700°C (Strength limit) | GH3030 resists scaling longer. |
| Weldability | Superior (No cracks) | Excellent (Delayed aging) | GH3030 is easier to fabricate. |
| Relative Cost | $ (Economical) | $ (Premium) | Save 30-50% with GH3030. |
| Best Application | Furnace Liners, Baffles | Turbine Discs, Fasteners | Match the spec to the stress. |
4. Economic Comparison of GH4169 and GH3030 Seamless Tubes
The cost difference mainly depends on the alloying elements and the complexity of the processing technology.
GH4169 (Higher Cost): Contains significant amounts of nickel, chromium, molybdenum (Mo), and niobium (Nb). The required precipitation hardening heat treatment (double aging) increases production costs. Its price is typically higher due to its high load-bearing capacity and aerospace applications.
GH3030 (Lower Cost): A relatively simple austenitic solid solution alloy, free of expensive elements such as niobium or high-molybdenum alloys. Its production and manufacturing processes are simpler.
Processing/Manufacturing: GH3030 exhibits excellent cold stamping and welding properties, reducing the overall manufacturing cost of complex tubular structures.
Contact our professionals to recommend the right alloy for your project
Why choose a Tier 1 Gnee Steel manufacturer?
Whether you need the economy of GH3030 or the elite strength of GH4169, we ensure Zero-Defect quality:
✅️VIM + VAR Melting: Ultra-clean melting processes to maximize the fatigue life of your parts.
✅️MTC 3.1 Traceability: Full heat-analysis and mechanical property verification documented with every batch.
✅️Wholesale Inventory: Large stock of standard schedules (Sch 10, Sch 40, Sch 80) ready for Fast Global Shipping.
✅️Custom Fabrication: Precision cutting and centerless grinding (h8-h11) available for both grades.
Gnee Steel GH4169(inconel 718) Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Steel GH4169 Product Packing
Contact us for the latest export price quote for GH4169 Alloy
FAQ
Q1: Can I weld GH3030 to GH4169?
A: Yes. They share excellent metallurgical compatibility. We recommend using ERNiCr-3 filler metal. However, remember that the total system load will be limited by the GH3030 side.
Q2: Does GH3030 handle corrosive gases better than GH4169?
A: In simple oxidizing air, both are excellent. In specialized chemical environments, GH3030 often performs better as a stable, non-aging matrix that doesn't suffer from the localized phase changes that GH4169 might experience above 800°C.
Q3: Why is the price gap so large between the two?
A: GH4169 contains high levels of Niobium (Nb) and Molybdenum (Mo), and requires a much more complex manufacturing cycle (Double-Vacuum Melting + Multi-stage Aging) to reach its mechanical specs.
Q4: Do you offer trial orders for prototype furnace parts?
A: Absolutely. We support R&D projects and offer Flexible MOQs for both GH3030 and GH4169 tubing.
