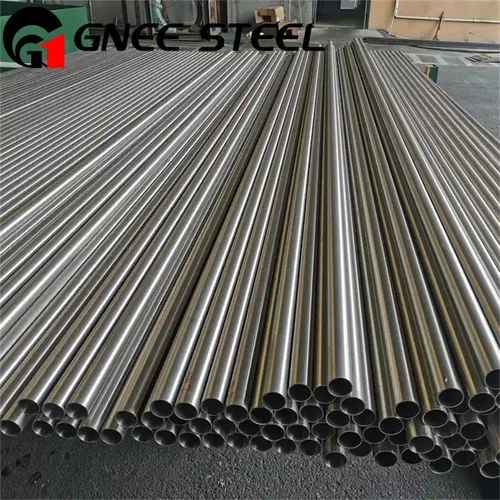

Inconel Alloy 600 ss pipe
GNEE Group offers Nickel Alloy Inconel 600 in a variety of forms, including:
Bars
Wires
Sheets
Forgings
Tubes
Flanges
Seamless and Welded Pipes
Welding Rods
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Inconel Alloy 600 seamless pipe introduce

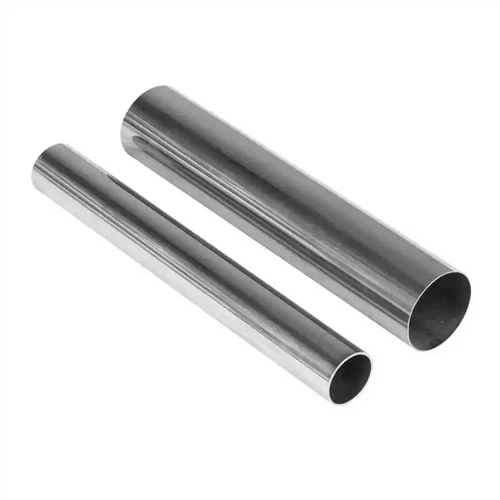

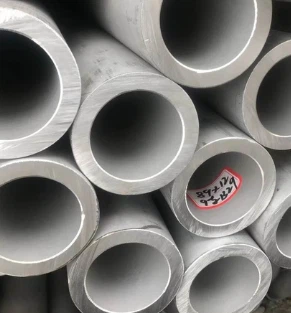

Inconel Alloy 600 seamless pipe
At GNEE group, Inconel 600 Tube is a chromium-nickel alloy designed for use in temperatures up to 2000°F and down to cryogenic levels. The alloy resists reducing environments as well as chloride stress corrosion cracking due to the high nickel content, and resists weaker oxidizing conditions due to the high chromium content. Alloy 600 Seamless Nickel Tube is an austenitic alloy with a high nickel content, non-magnetic, and has excellent mechanical properties at both high and low temperatures.
Material Specification Chart – Alloy 600 Pipes
| Category | Specifications |
|---|---|
| Standard Specifications | ASTM B167, ASME SB167, ASTM B517, ASME SB517, ASTM B829, ASME SB829 |
| Size Range | 15" to 150" NB |
| Dimensions | ASME, ASTM, API |
| Seamless Sizes | - Wall Thickness: 0.5mm to 20mm - Size: 4mm to 219mm |
| Welded Sizes | 5.0mm to 1219.2mm |
| EFW Sizes | 5.0mm to 1219.2mm |
| Schedule | SCH160, STD, SCH10, SCH40, SCH80, SCH5 |
| Available Types | Welded, ERW, Seamless, LSAW, Fabricated Pipes |
| Form | Hydraulic, Round, etc. |
| Length | Double Random, Cut Length, Single Random |
| End Types | Beveled End, Plain End, Threaded |
Common Trade Names:
Alloy 600 , Inconel 600 , UNS06600 , W. Nr:2.4816
Specifications：
ASTM B163, B166, B167, B168, B516, B517, B564, B366; AMS 5540, 5665, B751, B775, B829
Inconel 600 Chemical Composition
| % | Ni | Cr | Cu | C | Mn | Si | S | Fe |
|---|---|---|---|---|---|---|---|---|
| Min | 72 | 14 | - | - | - | - | - | 6 |
| Max | - | 17 | 0.5 | 0.15 | 1 | 0.5 | 0.015 | 10 |
Inconel 600 Physical Properties
| Density | Melting range |
|---|---|
| 8.47 g/cm³ | 1354-1413°C |
Inconel 600 Mechanical Properties
| Mechanical & Physical Properties | 21°C | 538°C | 649°C | 760°C | 871°C | 982°C | 1093°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 641.2 | 579.2 | 448.2 | 189.6 | 103.4 | 51.7 | - |
| 0.2% Yield Strength /MPa | 255.1 | 196.5 | 182.7 | 117.2 | 62 | 27.6 | - |
| Charpy Impact V-notch /J | 61 | 63.7 | 52.9 | 62.4 | 108.5 | 160 | - |
| Coefficient of Thermal Expansion µm/m⁰C | - | 15.1 | 15.5 | 15.6 | 16.4 | - | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | 12.8 | 19.6 | 21.3 | 19.3 | 23.8 | - | - |
| Modulus of Elasticity / x105 MPa | 2.1 | 1.77 | 1.69 | 1.63 | 1.53 | - | 1.4 |
Other Types of Inconel 600 Pipes
| Category | Pipe Types |
|---|---|
| Seamless & Welded Pipes | Inconel 600 Seamless Pipes, Inconel 600 Welded Pipes, Inconel 600 High-Temperature Seamless Pipes, Inconel ASTM B165 Seamless Pipes, Inconel Corrosion Resistance Seamless Pipes |
| ERW & EFW Pipes | Inconel 600 ERW Pipes, Inconel 600 EFW Pipes, Alloy 600 EFW Pipes, UNS N06600 Welded Pipes |
| Specialty & Fabricated Pipes | Inconel 600 Fabricated Pipes, Inconel 600 Piping Exporter, Inconel DIN 2.4816 Pipes, Inconel Werkstoff Nr. 2.4816 Pipes |
| Rectangular & Round Pipes | Inconel 600 Round Pipes, Inconel 600 Rectangular Pipes, Inconel 600 Rectangular Seamless Pipes, 600 Alloy Round Welded Pipe Manufacturer |
| Manufacturers, Suppliers & Stockists | ASTM B175 Inconel Pipe Manufacturer, Inconel 600 Welded Pipes Stockist, Alloy 600 Welded Pipes Supplier, Inconel UNS N06600 Pipes |
Heat treatment
Alloy 600 will not harden due to heat treatment, only cold work hardening. Annealing after cold working softens the material. The softening temperature can be between 871℃ and 1149℃. Grain growth is very rapid at 982 ° C or higher, but a short stay at 1038 ° C softens the material without undue grain growth. The cooling after heat treatment can be slow cooling, or fast quenching cooling, will get a considerable hardness.
Inconel 600 Available Shape
Inconel 600 Size Range
Bars & Rods & Foring Ring /Flanges
Sheet & Plate
Strip & Coil
Welding Wire &Spring wire
Seamless Tube & Welded Pipe
Alloy 600 Applications
Evaporation tanks for petrochemical production, machines for acid and alkali industry, catalytic regenerators
Curved neck bottles and components in heat treatment furnaces, especially in carbonized and nitriding gases
Nuclear reactor power generation equipment, heat exchanger
Corrosion resistance to chlorination and fluoridation: production of organic or inorganic chlorides and fluorides
Titanium dioxide by chlorine process

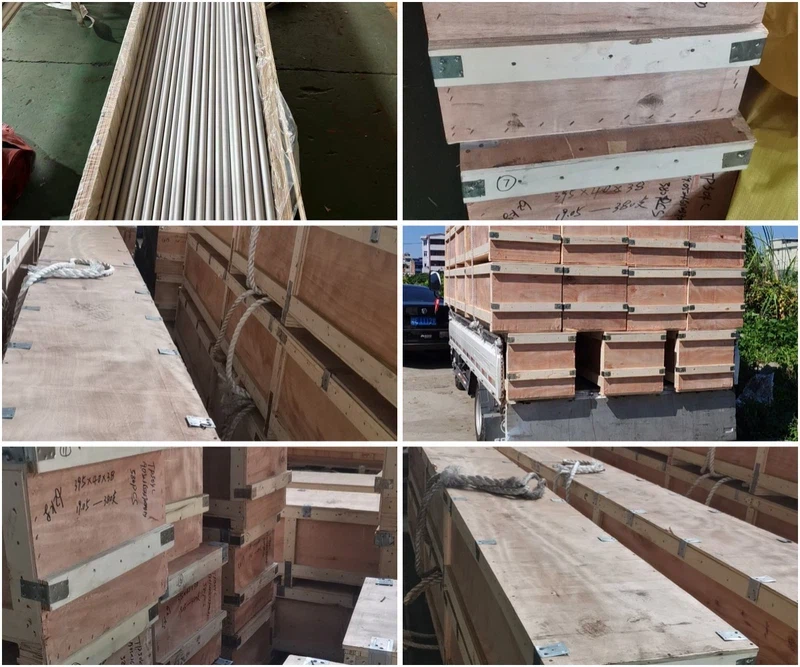

GNEE Group Product Packaging
Inconel seamless pipe packing

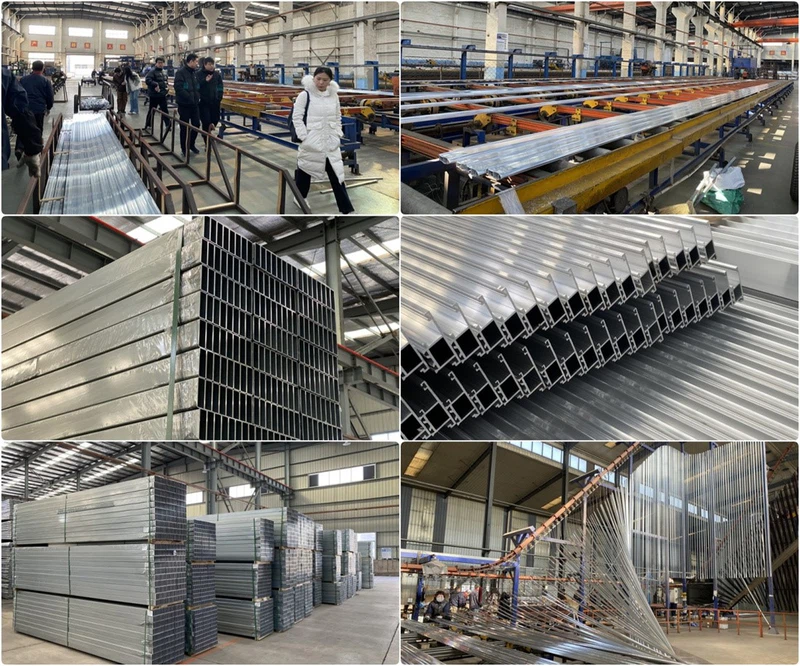

GNEE Group Factory Environment
inconel Mirror polished tube factory
FAQ
Q: How do you control quality ?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q: What are the advantages of your company ?
A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q: How many coutries you already exported ?
A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q: Can you provide sample ?
A: Yes. We can provide the small samples in stock for free, as long as you contact us.Customized samples will take about 5-7 days.
