Hastelloy C22 Alloy Mirror Coil
Specifications: ASTM B575 / ASME SB 575
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Thickness: 0.3mm to 120mm
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of hastelloy c22 alloy mirror coil in China. If you're going to wholesale high quality hastelloy c22 alloy mirror coil made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Hastelloy C22 Alloy Mirror Coil Description
Hastelloy C22 Coil, the Ultimate Choice for Corrosion-Resistant Applications. Our Hastelloy C22 Coil is designed to withstand the most challenging environments, ensuring superior durability and reliability in a wide range of industrial sectors.
Hastelloy C22 Coil is made from a low-carbon nickel-based alloy containing key elements such as nickel, chromium and molybdenum. This unique composition gives it excellent resistance to a wide range of corrosive substances, making it an ideal choice for critical applications where corrosion is a concern.
Our Hastelloy C22 Coil is widely used in industries such as chemical, petrochemical, and pharmaceutical. Its excellent corrosion resistance makes it the first choice for handling corrosive media and harsh conditions.
Our Hastelloy C22 Coil and Pipe are manufactured with the utmost precision in accordance with ASTM B575 specifications, ensuring the highest mechanical and chemical standards. They meet the requirements for tensile strength, yield strength, elongation and Rockwell hardness, ensuring reliability and consistency.
As a leading stockist and importer, we have a wide range of Hastelloy C22 Coil and Tube in stock, ready to ship. Whether you need a small quantity or a bulk order, we can meet your needs.
Hastelloy C22 coil and Plate Thickness
| Thickness |
|---|
| 0.050 inches 1.27 mm |
| 0.060 inches 1.524 mm |
| 0.062 inches 1.5748 mm |
| 0.074 inches 1.8796 mm |
| 0.104 inches 2.6416 mm |
| 0.093 inches 2.3622 mm |
| 0.125 inches 3.1750 mm |
| 0.134 inches 3.4036 mm |
| SURFACE FINISH | THICKNESS (MM) | WIDTH (MM) |
|---|---|---|
| 2B – Cold rolled, heat-treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat-treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat-treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
Hastelloy C22 Sheets, Plates & Coils Specification
Specifications : ASTM B575 / ASME SB575
Standard : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 1.0mm – 200mm
Range : 5 mm To 50 mm thick in 1000 mm TO 1250 mm width & 2500 mm Length.
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Grade :Hastelloy C22 Sheets, Plates & Coils UNS (N06022), DIN (2.4602)
Hastelloy Alloy C-22 Coil Chemical Compositions
| Alloy C-22 Coil Chemical Composition (%) | |||||||||||
| C | Cr | Co | Fe | Mn | Mo | Ni | P | Si | S | W | V |
| 0.010 max | 20-22.5 | 2.5 max | 2.0-6.0 | 0.50 max | 12.5-14.5 | Balance | 0.02 max | 0.08 max | 0.02 max | 2.5-3.5 | 0.35 max |
Hastelloy Alloy C-22 Coil Mechanical Properties
| Element | Yield Strength (0.2% Offset) | Melting Point | Density | Tensile Strength | Elongation |
| Hastelloy C-22 | 300-400Mpa | 1399 °C (2550 °F) | 8.69 g/cm3 | 600-900Mpa | Min 45 % |
C22 Alloy Coil mirror Sheet Factory Environment
C22 Alloy Coil mirror Sheet

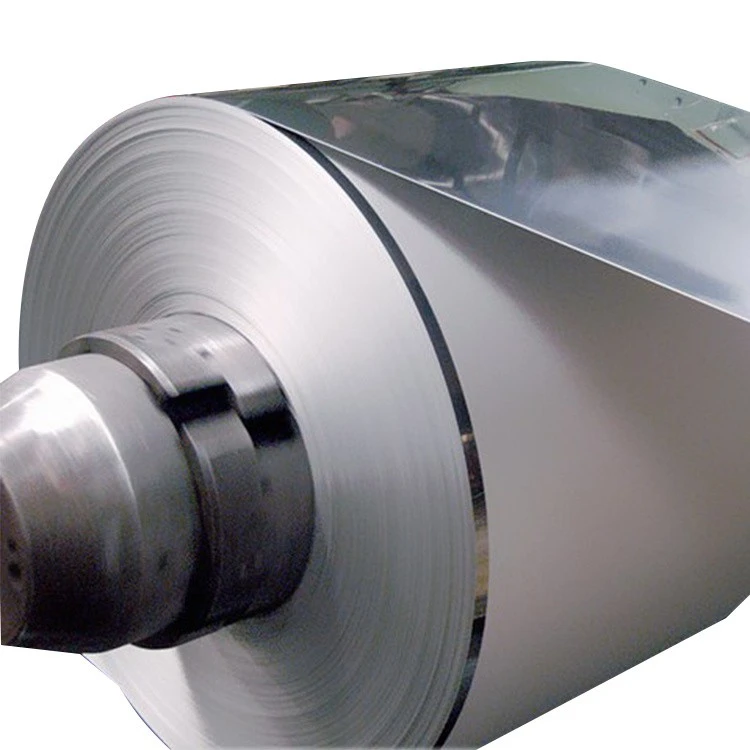

Hastelloy C22 Alloy Coil Sheet Packaging
Hastelloy C22 Alloy Coil Sheet
C22 Coil mirror Sheet Testing
C22 Coil mirror Sheet
About Gnee Steel
Gnee Steel is a supplier of Hastelloy C22 Alloy Mirror Coil, with products covering tubes: Seamless tubes: Size: 4 - 219 mm; Thickness: 0.5 - 20 mm; Welded tubes: Size: 5.0 - 1219.2 mm; Thickness: 0.5 - 20 mm, Plates: Plate thickness 0.1 to 100 mm; Plate width 10-2500 mm, Strips, Alloy round bar sizes: diameter 3-800 mm;, Flat bar sizes: thickness 2-100 mm; Width: 10-500 mm, Hexagonal bar sizes: 2-100 mm;, Wire and extruded profiles. We work with steel mills to provide customers with 625 alloy, and its products meet or exceed many leading industry standards, including ASTM, ASME, SAE, AMS, ISO, DIN, EN and BS standards.
Gnee Steel stocks and sells Hastelloy C22 Alloy Mirror Coil, Tubes, Pipes, Plates, Strips, Plates, Round Bars, Flat Bars, Forged Billets, Hexagons, Wires and Extruded Profiles. Feel free to contact us for a quote at ss@gneesteel.com
