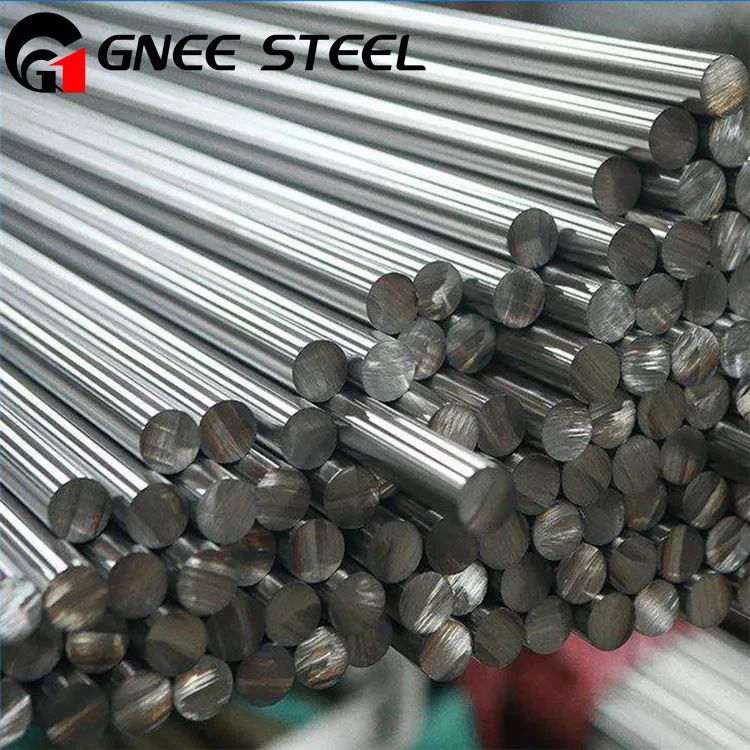

Hastelloy B2
Excellent resistance to stress corrosion cracking and pitting
Extremely resistant to reducing conditions such as hydrogen chloride, sulfuric acid, acetic acid and phosphoric acid
Resistant to hydrochloric acid corrosion at all concentrations and temperatures
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Hastelloy B2 description
Hastelloy B2 is a nickel-molybdenum alloy with outstanding resistance to reducing environments such as hydrogen chloride gas and sulfuric, acetic and phosphoric acids. Hastelloy B2 is resistant to pure sulfuric acid and a wide range of non-oxidizing acids. The alloy should not be used in oxidizing media or where oxidizing contaminants may be present in reducing media. The use of H2 alloy may result in premature failure if iron or copper is present in systems containing hydrochloric acid.
Industrial users value its resistance to a wide range of organic acids and its resistance to chloride-induced stress corrosion cracking.
Hastelloy B2 inhibits the formation of grain boundary carbide precipitates in the weld heat affected zone, making it suitable for most chemical process applications in the as-welded condition. The reduced precipitation of carbides and other phases in the weld heat affected zone ensures uniform corrosion resistance. Hastelloy B2 also has excellent resistance to pitting and stress corrosion cracking.
Specifications
|
UNS |
UNS N10665 |
|---|---|
|
Bar |
ASTM B335 ASME SB335 |
|
Wire |
|
|
Sheet |
ASTM B333 |
|
Plate |
ASTM B333 ASME SB333 |
|
Fitting |
ASTM B366 ASME SB366 |
|
Forging |
ASTM B564 |
|
Weld Wire |
A5.14 ERNiMo-7 |
|
Weld Electrodes |
ASME SFA 5.11(ENiMo-7) AWS A5.11 (ENiMo-7)
|
|
Seamless Pipe/Tube |
ASTM B622 ASME SB622 |
|
Welded Pipe |
ASTM B619 ASME SB619 |
|
Welded Tube |
ASTM B626 ASME SB626 |
|
Bare Weld Rods |
ASME SFA 5.14(ENiMo-7) |
|
Din |
2.4617 |
GNEE Hastelloy B2 specifications
The following table shows the chemical composition of HASTELLOY(r) B-2.
Chemical Composition |
|||||||
|---|---|---|---|---|---|---|---|
|
Ni |
Mo |
Fe |
Cr |
C |
Si |
Mn |
|
|
Max |
Bal. |
30.0 |
2.0 |
1.0 |
0.02 |
0.10 |
1.0 |
|
Min |
26.0 |
||||||
Physical Properties
The physical properties of HASTELLOY(r) B-2 are outlined in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 9.22 g/cm³ | 0.333 lb/in³ |
| Melting point | 1427°C | 2600°F |
Mechanical Properties
The mechanical properties of HASTELLOY(r) B-2 are provided below.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 914 MPa | 133000 psi |
| Yield strength (@strain 0.200%) | 396 MPa | 57400 psi |
| Elastic modulus | 217 GPa | 31500 ksi |
| Elongation at break (in 50.8 mm) | 55% | 55% |
| Hardness, Brinell (converted from Rockwell B hardness) | 168 | 168 |
| Hardness, Knoop (converted from Rockwell B hardness) | 186 | 186 |
| Hardness, Rockwell B | 98 | 98 |
| Hardness, Vickers (converted from Rockwell B hardness) | 241 | 241 |
GNEE Hastelloy B2 Application
Alloy B-2 is suitable for use in the chemical processing industry, specifically in areas where hydrochloric acid, phosphoric and sulfuric acid are used or processed. Alloy B-2 has also been used in the production of pharmaceuticals, acetic acid, alkylation of ethylene and herbicides. Typical end use applications include pumps, valves, mechanical seals, rupture discs, flanges, fittings, tanks and vessels.
GNEE Hastelloy B2 Features
ALLOY B2 is a corrosion-resistant, solid-solution Ni-Mo alloy.
• Controlled chemistry with a minimum iron and chromium content to retard the formation of ordered -phase Ni4Mo
• Significant corrosion resistance to reducing environments
• Excellent resistance to medium-concentrated sulphuric acid and a number of non-oxidizing acids
• Good resistance to chloride-induced stress-corrosion cracking (SCC)
• Good resistance to a wide range of organic acids
Our Company

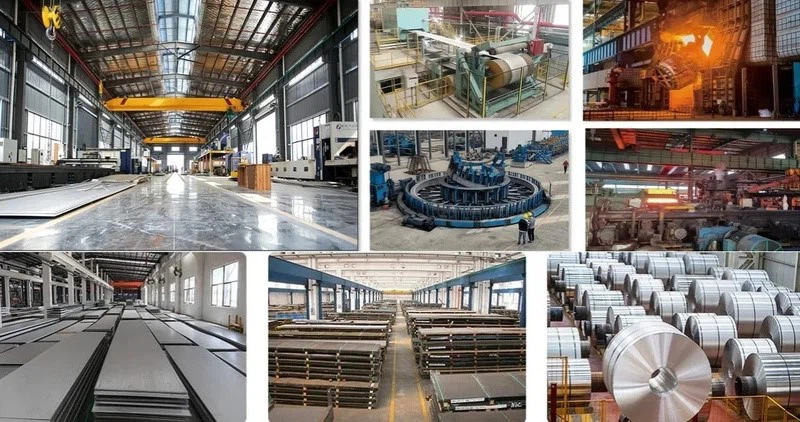

38000㎡ workshop and 200+ emplovees to meet your huge demands.
