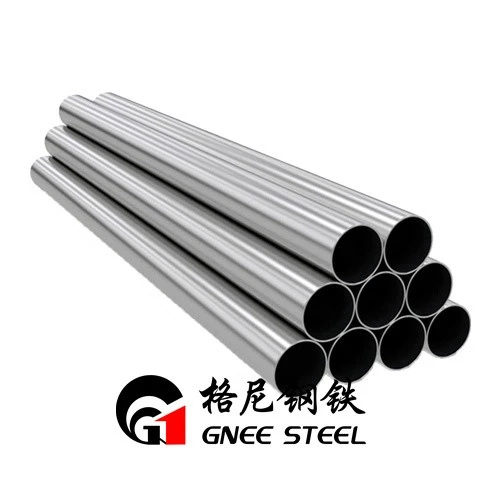

Seamless Welded K500 400 Monel Pipes
Sizes (OD): .125" OD to 1" OD
Wall Thickness: .035" to .109" Wall Thickness
Alloy 400 Welded Tube
Sizes: 1/2" - 12" OD, Gauges: 25 SWG - 10 SWG
OD: 6.35 to 114.3 mm OD
Thickness: 0.8 - 12.7 mm
Length: Up to 26 meters
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of seamless welded k500 400 monel pipes in China. If you're going to wholesale high quality seamless welded k500 400 monel pipes made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Seamless Welded K500 400 Pipes introduce
Welded K500 400 Monel Pipes
Monel K 500 tubes performance is better than the Monel 400 tubes. Though both are the different grades of Monel superalloys of nickel and copper, they differ in the combination and the additional elements. Hence apart from the many similar properties, they also differ in many properties and uses. A few of them include the following, among others.Though Monel 400 has higher nickel content than Nickel Alloy K500 welded pipe, it has higher performance.
Monel 400 is a solid solution-strengthened superalloy, whereas K500 Monel welded tube is a precipitation-performance alloy.Monel 400 alloy is magnetic sometimes, whereas the Monel 5 500 is non-magnetic and always.Monel K 500, because of its higher strength and performance, is more expensive than Monel 400.Monel 400 has more applications in automotive and chemical processing than Monel K500.
Alloy K500 tubing is better than piping systems in many applications because of avoiding leakage and other issues under high pressure. Still, a few points to remember before installing K500 tubing include the following.
An exact measurement of the desired distance between two bends is critical to install correctly.
Measure from the tube's center line always except for the first bend that needs to measure from the end.
Precise bending of K500 tubes is essential for achieving the right angles to have the perfect tube line.
Mark the tubes with a sharp pencil and do not use any grease pencil or crayon which may affect the accuracy.
Monel K500 Pipes & Tubes Specifications :
| Size | 15"NB TO 150"NB IN |
|---|---|
| Standards | ASTM / ASME SB 163 / 165 |
| Length | Double Random, Single Random, Cut Length |
| Type | Seamless, Welded, Fabricated, ERW / CDW |
| Form | Round, Rectangular, Hydraulic, Square |
| Grades | Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
Monel Alloy K500 Tube Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel K500 | 0.25 max | 1.50 max | 0.50 max | 0.010max | 27.00 – 33.00max | 0.5 – 2 | 63.00 min | – |
Monel 400 Pipe Specification
Monel 400 Seamless Pipes : ASTM B165, ASTM B725, ASME SB165, ASME SB725
Monel 400 Welded Pipe : ASTM B725, ASTM B730, ASME SB725, ASME SB730
Standard : ASTM, ASME and API
Length : Single Random, Double Random & Required Length
Types : Seamless / ERW / Welded / Fabricated / CDW
Form : Round Pipes/Tubes, Tubes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Monel 400 Welded Pipes Chemical Composition
| Grade | C | Mn | Si | Cu | S | Ti | Ni | Al | Fe |
| Monel 400 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.02 max | - | 63.0 min | 0.50 max | 1.0 – 2.5 |
Seamless K500 400 Monel Pipes
FAQ
Q: Can I get samples before order ?
A: Yes, of course.We can produce by your samples or technical drawings ;
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory ;
Q: What kind of work does your company do?
A: Our company is a professional manufacturer.We mainly produces stainless steel sheet, stainless steel coil, stainless steel pipe, stainless steel bars and so on.
Q: How can you assure your quality?
1.We can provide you certificate of quality accordingly.
2.We are willing to accept the third party inspection, such as SGS,BV,CE and so on.
