Nimonic 75 Alloy
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of nimonic 75 alloy in China. If you're going to wholesale high quality nimonic 75 alloy made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Nimonic 75 is an 80/20 nickel-chromium alloy with controlled additions of titanium and carbon. First introduced in the 1940s for turbine blades in the prototype Whittle jet engines, it is now mostly used for sheet applications calling for oxidation and scaling resistance coupled with medium strength at high operating temperatures. It is still used in gas turbine engineering and also for industrial thermal processing, furnace components and heat-treatment equipment, It is readily fabricated and welded.
Product Description
Common Trade Names:
Alloy 75 , NC20T, UNS NO6075, Nicrofer 7520, Nimonic 75, W.Nr. 2.4951&2.4630
Nimonic 75 Characteristic
Good corrosion resistance
Good heat resistance
High temperature static applications
Specifications：
| Rod, Bar, Wire and Forging Stock | BS HR 5, BS HR 504, DIN 17752, AECMA PrEN2306, AECMA PrEN2307, AECMA PrEN2306, AECMA Pr EN2307, AECMA PrEN2402, ISO 9723, ISO 9724, ISO 9725, MSRR 7004 |
|---|---|
| Plate, Sheet, Strip | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208, MSRR 7104 |
| Pipe and Tube | BS HR 403, DIN 17751, AECMA PrEN2294, ISO 6207 |
| Other | DIN 17742, AECMA PrEN2308, Werkstoff Nr 2.4630, W. Nr 2.4951, UNS N06075, Nimonic 75 (tradename), MSRR 7104 and MSRR 7004, AFNOR NC 20T |
Nimonic 75 Chemical Composition
| Element | C | Si | Mn | S | Co | Cr | Cu | Fe | Pb | Ti | P | Al | Ni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min % | 0.08 | – | – | – | – | 19 | – | – | – | 0.2 | – | – | - |
| Max % | 0.15 | 0.3 | 1 | 0.15 | 5 | 21 | 0.5 | 5 | 0.005 | 0.5 | 0.015 | 0.4 | balance |
Nimonic 75 Physical Properties
| Density | Melting range |
|---|---|
| 8.37 g/cm³ | 1340-1380°C |
Nimonic 75 Mechanical Properties
| Material | Test Temp °F | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation in 2" |
|---|---|---|---|---|
| Alloy 75 Sheet 1925°F Anneal | Room | 114.4 | 59.4 | 31 |
| Alloy 75 Sheet 1925°F Anneal | 1000 | 105.6 | 51.9 | 27 |
| Alloy 75 Sheet 1925°F Anneal | 1200 | 69.3 | 40 | 32 |
| Alloy 75 Sheet 1925°F Anneal | 1400 | 41.4 | 22 | 75 |
| Alloy 75 Sheet 1925°F Anneal | 1600 | 20.2 | 9.9 | 90 |
| Alloy 75 Sheet 1925°F Anneal | 1800 | 9.7 | 4.4 | 91 |
Nimonic 75 Available Shape
Nimonic 75 Size Range
»Round Bar & Square Bar & Hexagon Bar
● Diameter : φ8～φ300mm Length:10mm-6000mm
● Hot forging, Hot Rolling, Cold Drawing
● Bright Surface, Polished Surface, Black Surface
»Tube & Pipe:Seamless Tube& Welded Pipe
● Cold Drawing Seamless Pipe： φ1.0～φ220mm
● Hot Extrusion pipe: φ50～φ250mm
● Others : U Blend Tube and Elbow
»Hot Rolled Plate & Cold Rolled Sheet
● Cold Rolling Sheet Thickness: ≦2.0mm Width:≦1500m
● Hot rolling Plate Thickness: ≧4.0mm Width: ≦2500m

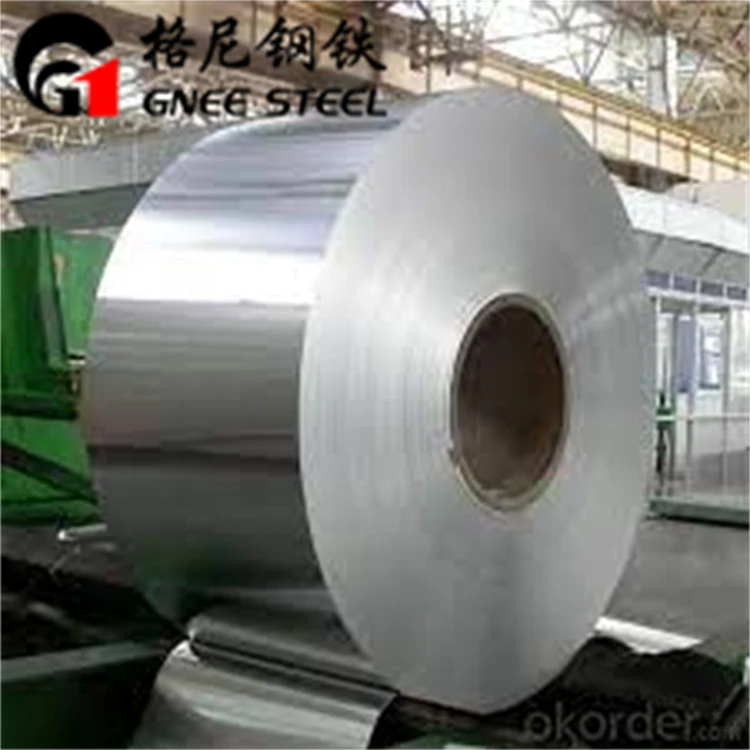

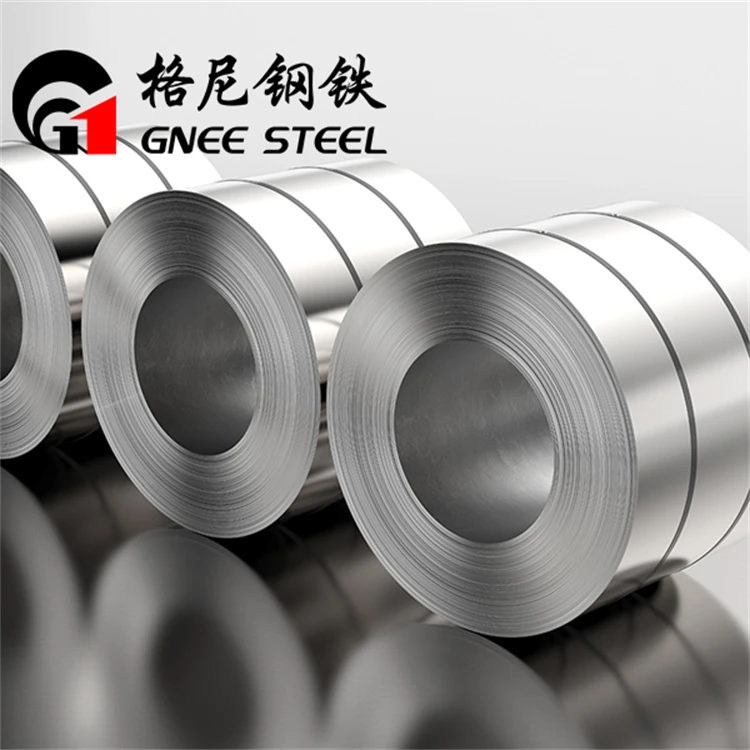

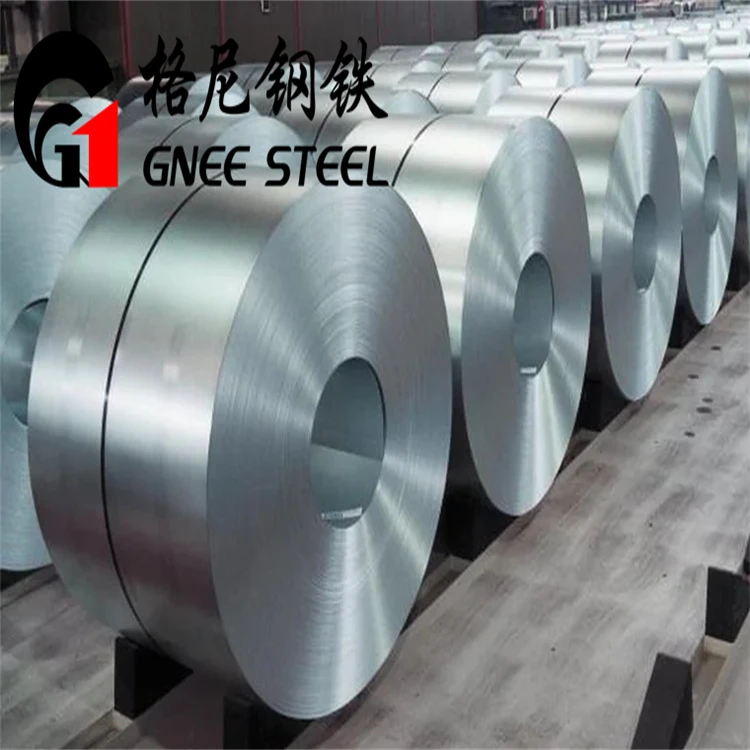

»Strip & Tape Ribbon
● Thickness: ≧ 0.01mm Width: 15mm-300mm
● Cold rolling BA Strip, Hard & Soft Condition
»Straight Length Wire & Spool Wire
● Welding Wire: φ 0.1mm～6.0mm Cut length Rod: φ1.0～φ8.0mm
● Package : 5-25kg/Spool or Box
Nimonic 75 ApplicationsI
Aerospace fasteners
Gas turbine engineering
Industrial furnace structural parts
Heat treatment equipments
Nuclear engineering.
FAQ
Q: How do you control quality ?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q: What are the advantages of your company ?
A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q: How many coutries you already exported ?
A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q: Can you provide sample ?
A: Yes. We can provide the small samples in stock for free, as long as you contact us.Customized samples will take about 5-7 days.
