Nickel 201 Flanges is the central part of the connection of the pipes. These flanges are supplied to the customers from particular sections of industries like paper mills, sugar mills, fertilizer industry, breweries, petrochemical plants, fabrication units, and more. For the production of flanges, we use pure nickel with a low carbon quantity that makes the flanges work even at multiplied temperatures without any changes.

Send Inquiry

Chat Now

As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.

Send E-mail: ss@gneesteel.com

Product Introduction

Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of nickel-based alloy 201 flanges in China. If you're going to wholesale high quality nickel-based alloy 201 flanges made in China, welcome to get free sample from our factory. Good service and reasonable price are available.

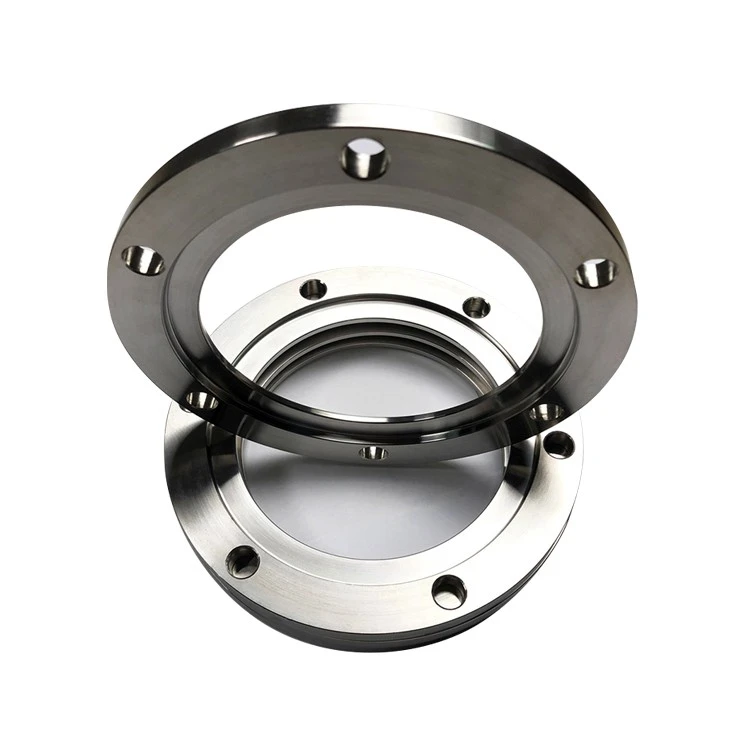

Nickel-Based Alloy 201 Flanges

Product Introduction

Nickel 201 flanges are crucial components in industries where corrosion resistance, Temperature Stability, and durability are paramount. Their composition and properties make them suitable for challenging environments, contributing to the reliability and longevity of piping systems and equipment.
Nickel 201 flanges and Pipe Flanges and Steel Pipe Fittings are available in various types, including slip-on flanges, Weld Neck Flanges, socket weld flanges, Blind Flanges, and lap joint flanges. The choice of flange type depends on the specific requirements of the application.

Standard	ASTM B564, ASME SB564
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size	1/2" (15 NB) to 48" (1200NB)
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Class/Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form	Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Orifice Flanges, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

Equivalent Grades Of ASME SB564 Nickel 201 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel Alloy 201	2.4068	N02201	NW 2201	NA 12	НП-2	-	LC-Ni 99

Nickel 201 Flanges Chemical Properties

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel Alloy 201	0.02 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Nickel Alloy 201 Flanges Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %
