In modern chemical processing, the line between profit and disaster is often measured in micrometers. For plant engineers and purchasing managers, one of the most challenging problems is pinhole corrosion. Standard stainless steels (such as 316L or 904L) frequently fail when handled in corrosive environments like phosphoric acid or sulfuric acid.
At Gnee Alloy, we eliminate these risks. Our high-purity Inconel 625 is designed to maintain absolute structural integrity in "impossible" chemical environments.
Click to get an Inconel 625 product quote

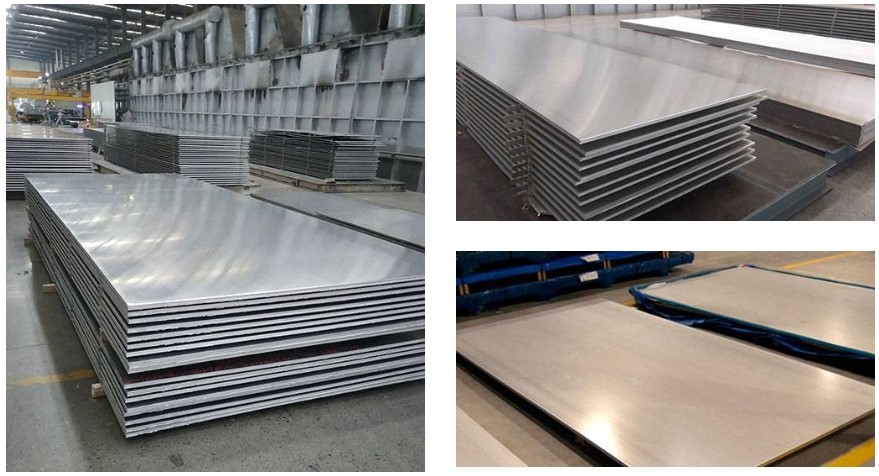

The Role of Alloy 625 in Chemical Processing
The Role of Alloy 625 in Chemical Processing
Alloy 625 (UNS N06625) is an important nickel-chromium-molybdenum alloy widely used in chemical processing due to its excellent corrosion resistance, high tensile strength, and good machinability. It can withstand the corrosion of both oxidizing and reducing acids, thus preventing equipment failure in harsh chemical environments.

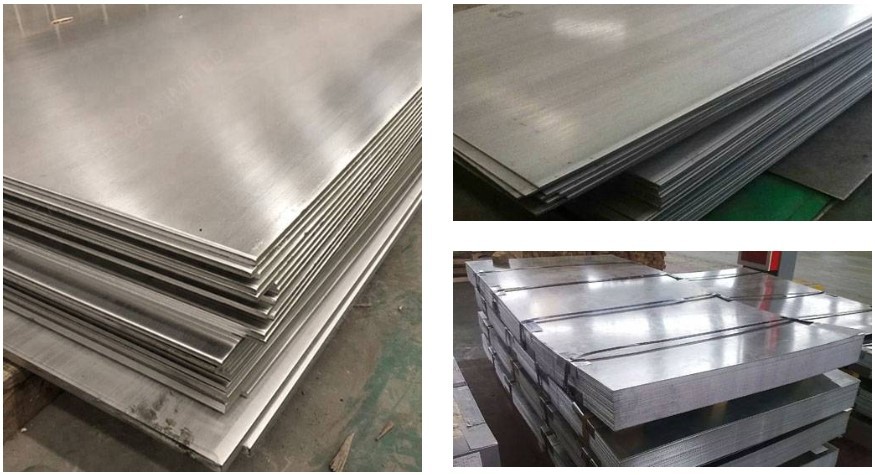

How does Inconel 625 resist corrosion?
Corrosion Resistance
Nickel and chromium give it corrosion resistance in oxidizing environments. Nickel and molybdenum give it corrosion resistance in non-oxidizing environments. Molybdenum prevents pitting and crevice corrosion. Niobium stabilizes the alloy and prevents sensitization during welding.
1. inconel 625 Chemical Composition Comparison (wt%)
| Element | Inconel 625 | Inconel 725 | Key Difference |
|---|---|---|---|
| Nickel (Ni) | ≥ 58.0 (Balance) | 55.0 – 59.0 | Similar |
| Chromium (Cr) | 20.0 – 23.0 | 19.0 – 22.5 | Similar |
| Molybdenum (Mo) | 8.0 – 10.0 | 7.0 – 9.5 | Similar |
| Niobium (Nb) | 3.15 – 4.15 | 2.75 – 4.00 | Similar |
| Iron (Fe) | ≤ 5.0 | Balance (~10-15) | 725 has higher Fe |
| Titanium (Ti) | ≤ 0.40 | 1.00 – 1.70 | 725 contains Ti (γ′ former) |
| Aluminum (Al) | ≤ 0.40 | 0.35 – 1.00 | 725 contains Al (γ′ former) |
| Carbon (C) | ≤ 0.10 | ≤ 0.03 | 725 has lower C |
| Manganese (Mn) | ≤ 0.50 | ≤ 0.35 | - |
| Silicon (Si) | ≤ 0.50 | ≤ 0.20 | - |
| Phosphorus (P) | ≤ 0.015 | ≤ 0.015 | - |
| Sulfur (S) | ≤ 0.015 | ≤ 0.010 | - |
| Cobalt (Co) | ≤ 1.0 | - | - |
2. Comparison of Inconel 625's mechanical properties at room temperature
| Property | Inconel 625 (Annealed) | Inconel 725 (Aged) | Advantage |
|---|---|---|---|
| Tensile Strength, Ultimate (MPa) | ≥ 830 (120 ksi) | ≥ 1100 – 1200 (160-174 ksi) | 725 (~35-45% higher) |
| Tensile Strength, Yield (MPa) | ≥ 415 (60 ksi) | ≥ 800 – 900 (116-130 ksi) | 725 (~95-115% higher) |
| Elongation (%) | ≥ 30 | 15 – 25 | 625 |
| Reduction of Area (%) | ≥ 40 | 20 – 40 | 625 |
| Hardness | ~22 HRC (96 HRB) | 28 – 38 HRC | 725 harder |
| Modulus of Elasticity (GPa) | ~207 | ~200 | Similar |
| Poisson's Ratio | 0.29 – 0.30 | 0.29 – 0.30 | Similar |
| Density (g/cm³) | 8.44 | 8.31 | 725 lighter |
Click to download the Inconel 625 alloy PDF file now
3. Key Functions and Properties of Inconel 625 Alloy
Acid Resistance: Its high molybdenum content provides excellent resistance to reducing acids (such as sulfuric and hydrochloric acids), while chromium ensures excellent performance in oxidizing environments (such as nitric acid).
Protection Against Localized Corrosion: It exhibits strong resistance to pitting and crevice corrosion, both common in chloride-rich media.
Weldability: The addition of niobium stabilizes the alloy, preventing intergranular corrosion and sensitization during welding.
High Strength and Durability: Its naturally hardened microstructure provides extremely high structural strength, allowing for the design of thinner-walled containers and improved heat transfer efficiency.
4. Supply capacity for Inconel 625 chemical processing
| Product Form | Dimension Range | Surface Condition | Processing |
| Seamless Pipe | OD 6mm - 219mm | Bright Annealed (BA) | Custom Bending |
| Large Diameter Pipe | OD up to 1200mm | Pickled / Polished | 100% X-Ray (RT) |
| Reactor Plates | 0.5mm - 50.0 mm | Precision Flatness | Laser / Waterjet |
| Valve Internals | Forged Rounds | Centerless Ground | h8 - h11 Tolerance |
5. Main Chemical Processing Applications of Alloy 625
Due to these properties, Alloy 625 is commonly used in the manufacture of the following plant components:

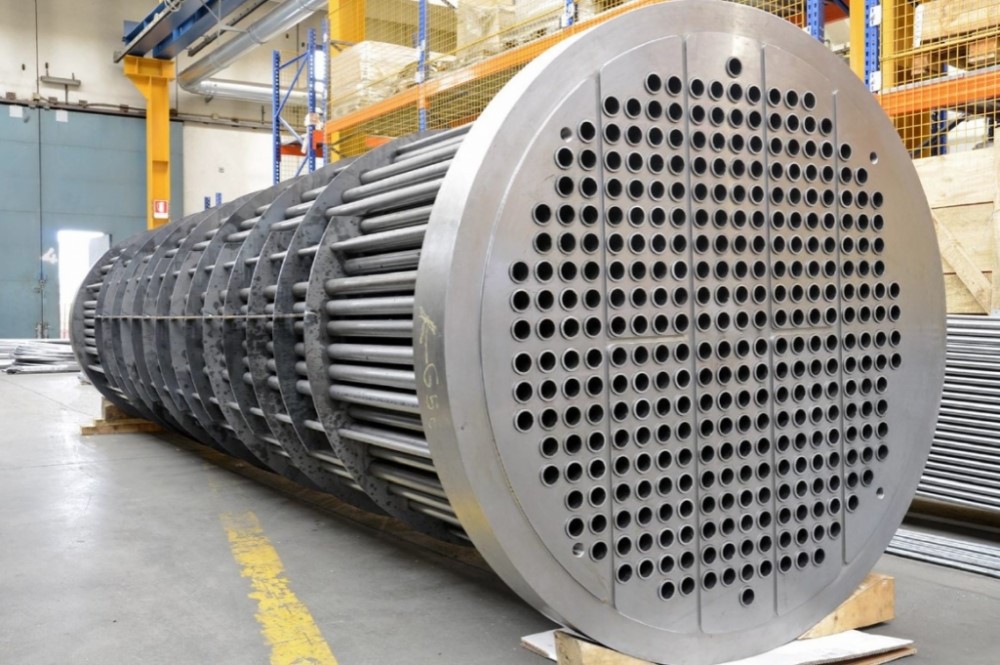

Heat Exchangers: Resistant to thermal cycling and corrosive cooling water.

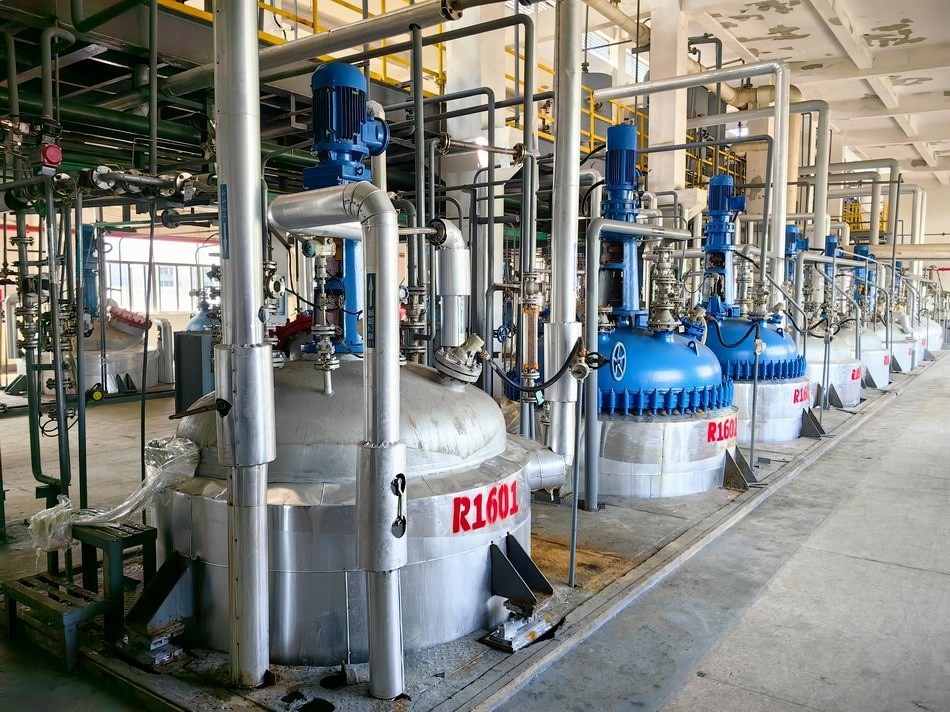

Reaction Vessels: Safely hold highly reactive and acidic chemical mixtures.
Distillation Columns and Bubble Cap Columns: Separate complex chemical mixtures at high temperatures.

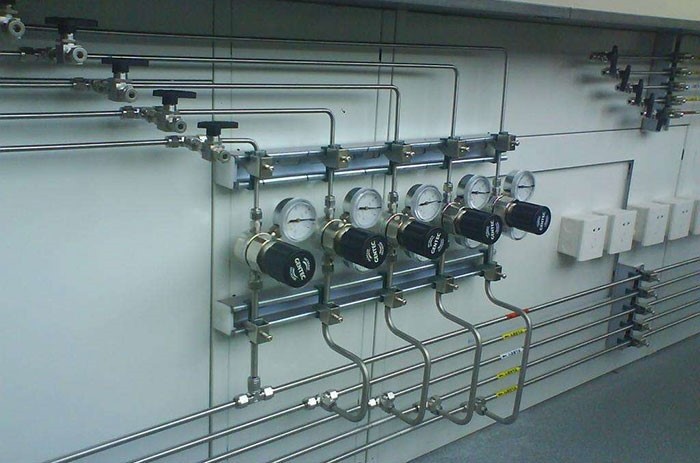

Pipelines: Used for conveying highly corrosive fluids and slurries within a plant.
Valves and Pumps: Resistant to abrasion and localized corrosion.
Why Choose Gnee as Your Nickel-Based Alloy Supplier
✅️Direct Factory Price: Skip the markups of international trading houses.
✅️MTC 3.1 Traceability: Full EN 10204 3.1 documentation included, detailing PREN and heat analysis.
✅️Industrial Durability: Our materials are optimized for the long-haul, reducing the Total Cost of Ownership (TCO) for your plant.
✅️Global Logistics: Fast shipping with specialized export packaging for high-value alloys.

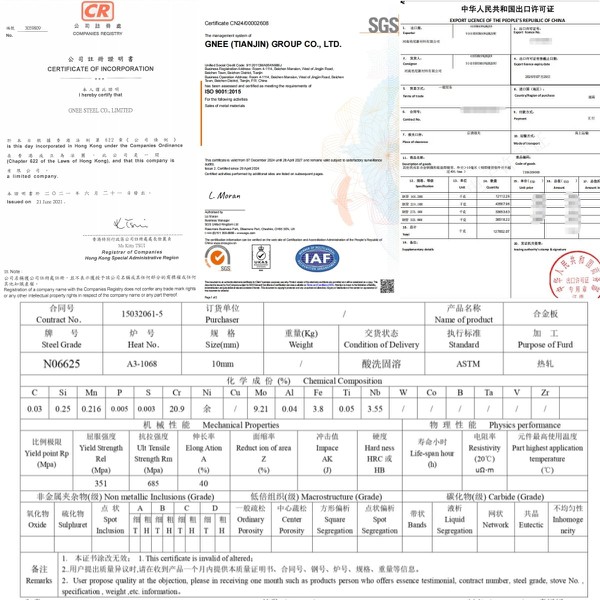

Gnee Alloy Inconel 625 Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Alloy inconel 625 Product Packing
Contact us for the latest export price quote for 625 Alloy
FAQ
Q1: Can Alloy 625 handle Hydrochloric Acid (HCl)?
A: Yes. While no metal is completely immune, Alloy 625's 9% Molybdenum content provides the best resistance to HCl among standard high-nickel alloys, making it ideal for flue gas desulfurization (FGD).
Q2: Is Alloy 625 easy to weld for reactor maintenance?
A: Absolutely. Alloy 625 is one of the most "weld-friendly" superalloys. It does not require post-weld heat treatment (PWHT) to maintain its corrosion resistance, allowing for fast, reliable field repairs.
Q3: Is your material interchangeable with Inconel 625?
A: Yes. Alloy 625 is the तकनीकी equivalent used in international blueprints for UNS N06625 / W.Nr. 2.4856. We provide full equivalency certificates for your audit.
Q4: Do you offer bulk discounts for major plant overhauls?
A: Yes. We offer tiered Wholesale Pricing and dedicated project management for large-scale energy and chemical infrastructure projects.
