In aircraft engine exhaust systems or fuel manifolds, components are subjected to the harsh conditions of continuous mechanical vibration and rapid thermal cycling. For engineers and maintenance, repair, and overhaul (MRO) specialists, the most challenging problem is premature fatigue failure.
Latent Failure Modes:
Thermal Fatigue Cracks: Rapid heating/cooling leads to micro-cracks at weld joints.
Vibration Embrittlement: High-frequency engine vibrations cause work hardening and fracture of standard alloys.
Oxide Scale: Surface degradation leads to thinning of the pipe wall, resulting in high-temperature gas leakage and catastrophic power loss.
Our aerospace-grade Inconel 625 tubing is specifically designed to address these risks. Refined using a dual VIM + VAR process, our material ensures absolute structural integrity even in the most demanding flight environments.
Click to get an Inconel 625 product quote

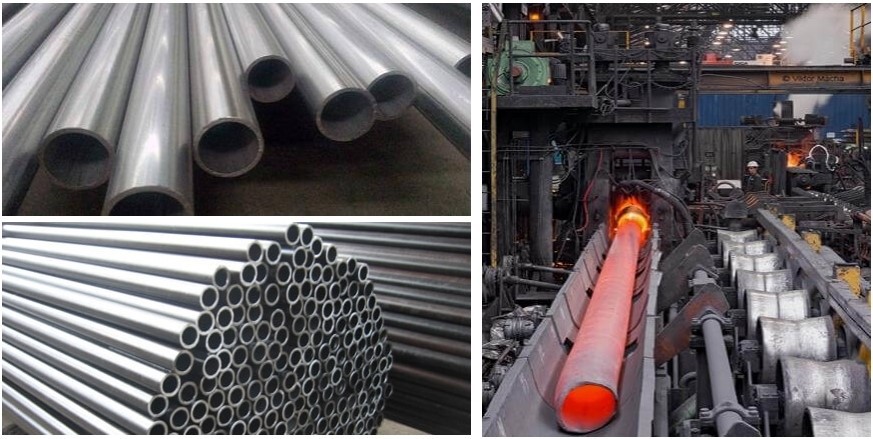

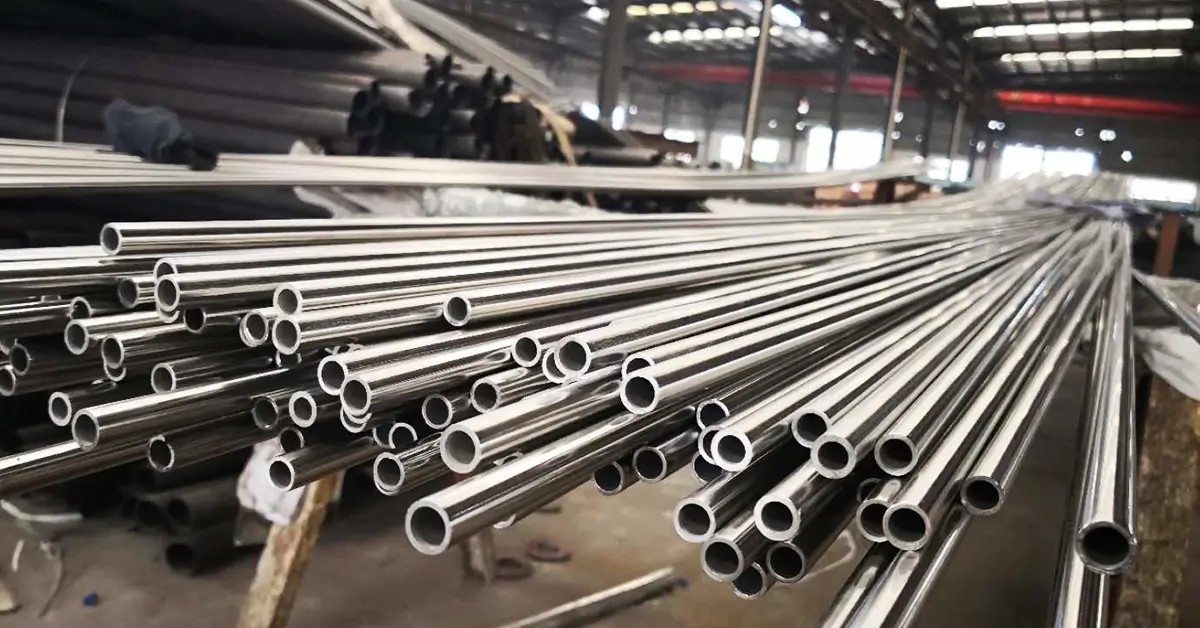

Inconel 625 Pipes: The Benefits and Applications in the Aerospace Industry
Inconel 625 Pipes: The Benefits and Applications in the Aerospace Industry
请替换当前内容 Vivamus tortor risus,pharetra ut venenatis ac,rutrum eget anten fusce convallis nibh felis,eget hendrerit diam rhoncus rana miss dictum lacus eleifend nisl efficitur venenatis.
Aliquam eros justo,posuere loborti viverra laoreet matti ullamcper posuere viverra .Aliquam s justo,posuere so lobortis non,viverra laoreet posuere loborti Aliquam eros justo,posuere loborti viverra laoreet matti ullamcorper posuere viverra .Aliquam s justo,posuere so lobortis non,viverra laoreet posuere loborti
What are the advantages of using Inconel 625?
Inconel 625 is a nickel-chromium superalloy favored for its exceptional strength, excellent corrosion resistance, and high-temperature stability. Engineers rely on Inconel 625 in demanding environments where standard materials fall short, such as marine engineering, aerospace, and chemical processing.
1. Chemical composition (by weight) of aerospace-grade Inconel 625 tubing
| Element | Content (%) | AMS 5581 / AMS 5599 Requirement | Function |
|---|---|---|---|
| Nickel (Ni) | ≥ 58.0 (Balance) | ≥ 58.0 | Matrix element; corrosion resistance and high-temperature stability |
| Chromium (Cr) | 20.0 – 23.0 | 20.0 – 23.0 | Oxidation and corrosion resistance |
| Molybdenum (Mo) | 8.0 – 10.0 | 8.0 – 10.0 | Core solid-solution strengthening; pitting and crevice corrosion resistance |
| Niobium (Nb) | 3.15 – 4.15 | 3.15 – 4.15 | Solid-solution strengthening; carbide stabilizer |
| Iron (Fe) | ≤ 5.0 | ≤ 5.0 | Residual element |
| Titanium (Ti) | ≤ 0.40 | ≤ 0.40 | Supplementary strengthening |
| Aluminum (Al) | ≤ 0.40 | ≤ 0.40 | Supplementary strengthening |
| Carbon (C) | ≤ 0.10 | ≤ 0.10 | Low carbon for weldability and toughness |
| Manganese (Mn) | ≤ 0.50 | ≤ 0.50 | Deoxidizer |
| Silicon (Si) | ≤ 0.50 | ≤ 0.50 | Deoxidizer |
| Phosphorus (P) | ≤ 0.015 | ≤ 0.015 | Ensures toughness |
| Sulfur (S) | ≤ 0.015 | ≤ 0.015 | Ensures hot workability |
| Cobalt (Co) | ≤ 1.0 | ≤ 1.0 | Residual element |
| Copper (Cu) | ≤ 0.07 | ≤ 0.07 | Residual element |
2. Aerospace-grade Inconel 625 tubing – room temperature and mechanical properties
| Property | AMS 5581 / AMS 5599 Requirement | Typical Value | Test Standard |
|---|---|---|---|
| Tensile Strength, Ultimate | ≥ 830 MPa (120 ksi) | ~900 – 950 MPa | ASTM E8 / AMS 2370 |
| Tensile Strength, Yield (0.2% Offset) | ≥ 415 MPa (60 ksi) | ~450 – 500 MPa | ASTM E8 / AMS 2370 |
| Elongation at Break | ≥ 30% | ~35-45% | ASTM E8 / AMS 2370 |
| Reduction of Area | Not specified | ≥ 40% | ASTM E8 |
| Hardness (Rockwell B) | ≤ 96 HRB | ~90-95 HRB | ASTM E18 |
| Modulus of Elasticity | ~207 GPa (30.0 × 10⁶ psi) | - | ASTM E111 |
| Poisson's Ratio | 0.29 – 0.30 | - | - |
| Impact Toughness (Charpy V-notch, RT) | As specified | ≥ 60 J (typical) | ASTM E23 |
Click to download the Inconel 625 alloy PDF file now
3. Aerospace-grade Inconel 625 tubing dimensions and specifications
Standard Size Range
| OD (mm) | OD (in) | Wall Thickness (mm) | Wall Thickness (in) | Typical Aerospace Application |
|---|---|---|---|---|
| 3.18 | 0.125 | 0.51 | 0.020 | Instrumentation, control lines |
| 4.76 | 0.188 | 0.71 | 0.028 | Hydraulic control lines |
| 6.35 | 0.250 | 0.89 | 0.035 | Hydraulic lines, fuel systems |
| 6.35 | 0.250 | 1.24 | 0.049 | High pressure hydraulic |
| 9.53 | 0.375 | 1.07 | 0.042 | Bleed air ducts |
| 9.53 | 0.375 | 1.65 | 0.065 | High pressure bleed air |
| 12.70 | 0.500 | 1.24 | 0.049 | Main hydraulic lines |
| 12.70 | 0.500 | 1.65 | 0.065 | High pressure lines |
| 15.88 | 0.625 | 1.65 | 0.065 | Engine exhaust systems |
| 19.05 | 0.750 | 2.11 | 0.083 | Large diameter ducts |
| 25.40 | 1.000 | 2.77 | 0.109 | Heavy duty applications |
Dimensional Tolerances (Aerospace Grade)
| Parameter | Range | Aerospace Tolerance |
|---|---|---|
| OD (≤ 6.35 mm) | - | ±0.025 – ±0.050 mm |
| OD (6.35 – 12.70 mm) | - | ±0.050 – ±0.075 mm |
| OD (12.70 – 25.40 mm) | - | ±0.075 – ±0.100 mm |
| OD (25.40 – 50.80 mm) | - | ±0.100 – ±0.150 mm |
| Wall Thickness | All | ±5% – ±8% |
| Length | Up to 15,000 mm | ±1 mm |
| OD Ovality | - | ≤ 0.5% of OD |
| Wall Concentricity | - | ≤ 8% of wall thickness |
| Straightness | - | ≤ 0.5 mm/m |
Contact us to customize Inconel 625 products to fit your project dimensions
4. Heat treatment of aerospace-grade Inconel 625 tubing
| Treatment | Temperature | Time | Cooling | Atmosphere | Purpose |
|---|---|---|---|---|---|
| Solution Treatment (Annealing) | 940 – 1040°C | 15-30 min (thin wall) | Rapid cool (water or air) | Controlled atmosphere (vacuum or hydrogen) | Softening, carbide dissolution, bright surface |
5. Aerospace-grade Inconel 625 pipe testing
As a Reliable Supplier, we provide the documentation necessary to pass any aerospace technical audit.
Standards: Fully compliant with AMS 5581 (Seamless/Welded Tubing) and AMS 5599.
Tolerances: Precision cold-drawn to achieve h8-h11 tolerances for automated assembly.

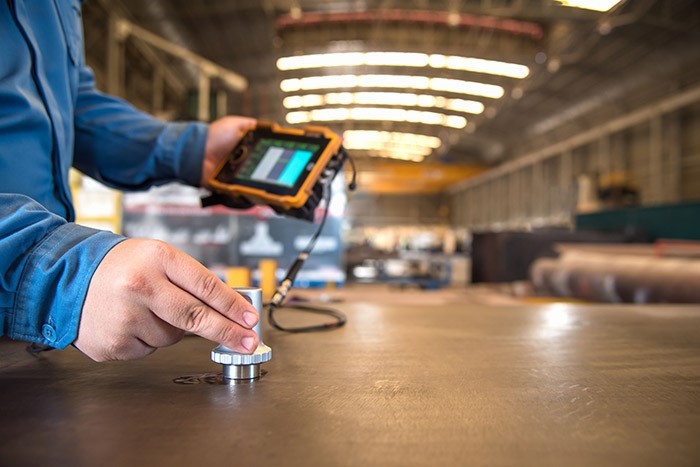

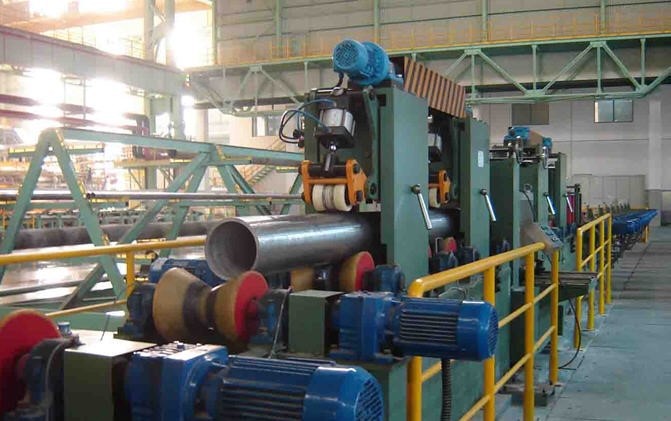

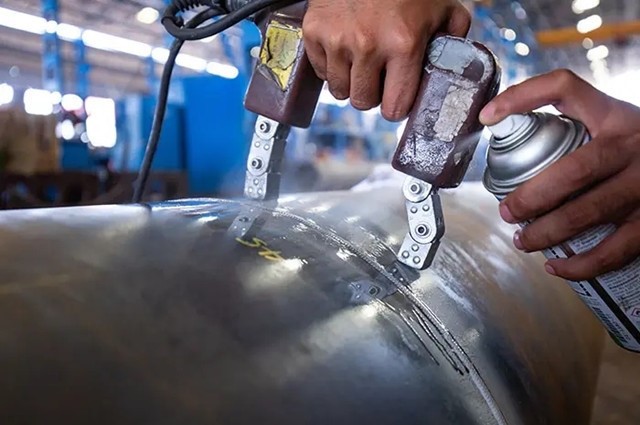

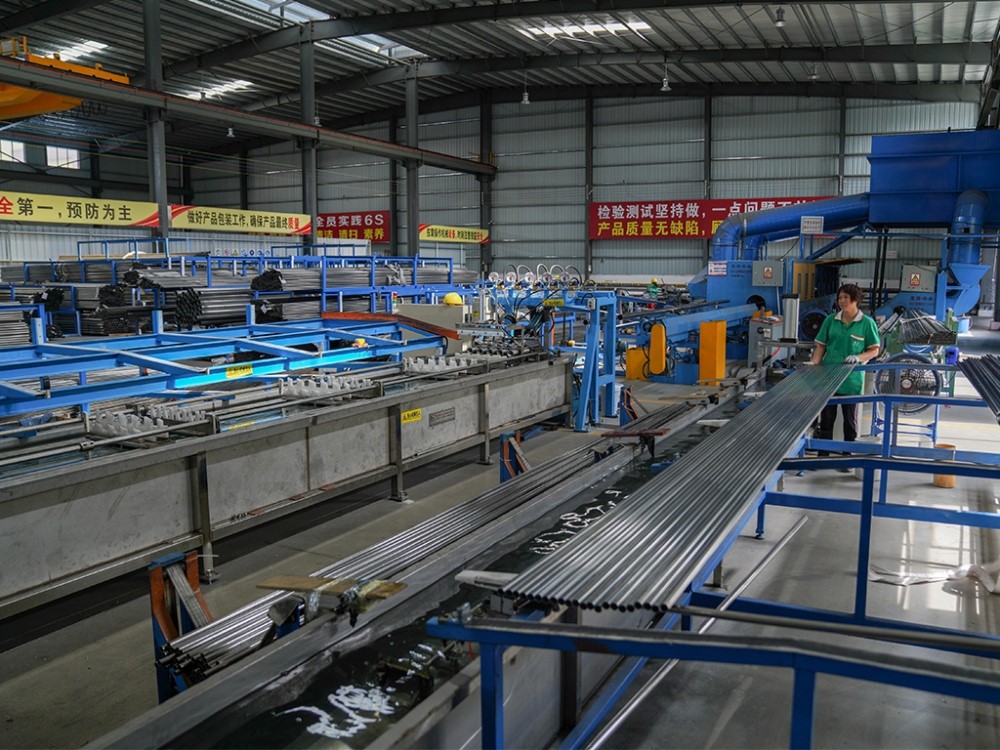

Inspection: 100% Ultrasonic (UT), Eddy Current (ET), and Fluorescent Penetrant Inspection (FPI).
Traceability: Full EN 10204 3.1 Mill Test Certificate (MTC) included.
6. Aerospace-grade Inconel 625 pipe applications

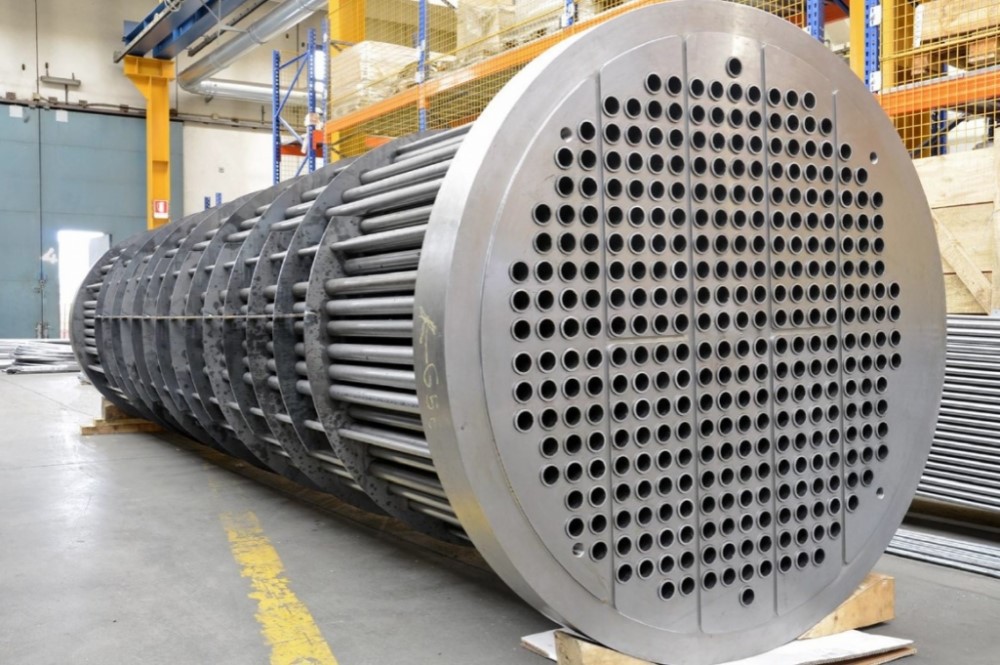

| Component | Operating Temp | Working Pressure (psi) | Key Requirements | Tube Size (OD × Wall) |
|---|---|---|---|---|
| Aircraft Hydraulic Lines | -54 – 150°C | 3,000 – 5,000 | Strength, leak-tight, corrosion resistance | 0.250″ × 0.035″ |
| Engine Fuel Systems | 50 – 150°C | 500 – 3,000 | Corrosion resistance, leak-tight | 0.188″ × 0.028″ |
| Bleed Air Ducts | 400 – 600°C | 200 – 500 | High-temp strength, oxidation resistance | 0.375″ × 0.042″ |
| Exhaust Systems | 500 – 700°C | Low | Oxidation resistance, thermal fatigue | 0.500″ × 0.035″ |
| Thrust Reverser Actuation | -54 – 150°C | 3,000 – 5,000 | High pressure, reliability | 0.250″ × 0.049″ |
| Heat Exchangers | 400 – 600°C | 200 – 500 | Thermal conductivity, corrosion resistance | 0.375″ × 0.035″ |

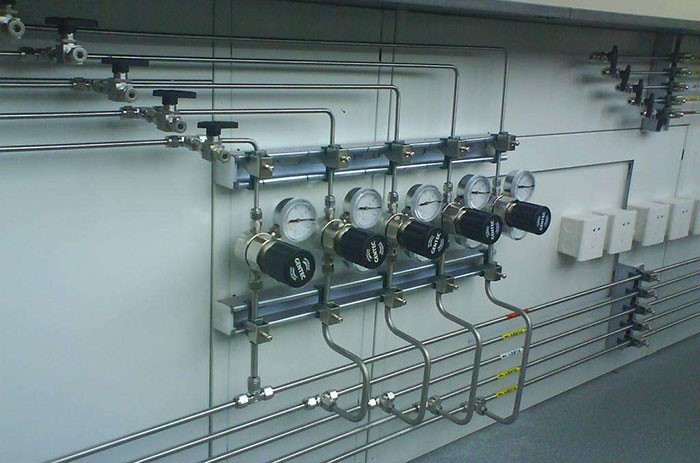

| Instrumentation Lines | -54 – 400°C | 1,000 – 3,000 | Precision, cleanliness | 0.125″ × 0.020″ |
| Engine Control Lines | -54 – 400°C | 500 – 2,000 | Reliability, corrosion resistance | 0.188″ × 0.020″ |
Why Choose Gnee as Your Nickel-Based Alloy Supplier
✅️Direct Factory Price: Eliminate middleman markups for bulk MRO and engine production contracts.
✅️Global Logistics: Fast shipping to international aerospace hubs (USA, Germany, Singapore) within 5-7 business days.
✅️Custom Fabrication: We offer precision cutting and specialized U-bending for complex exhaust geometries.
✅️Small Order Support: We support R&D and prototype certification with flexible MOQ options.

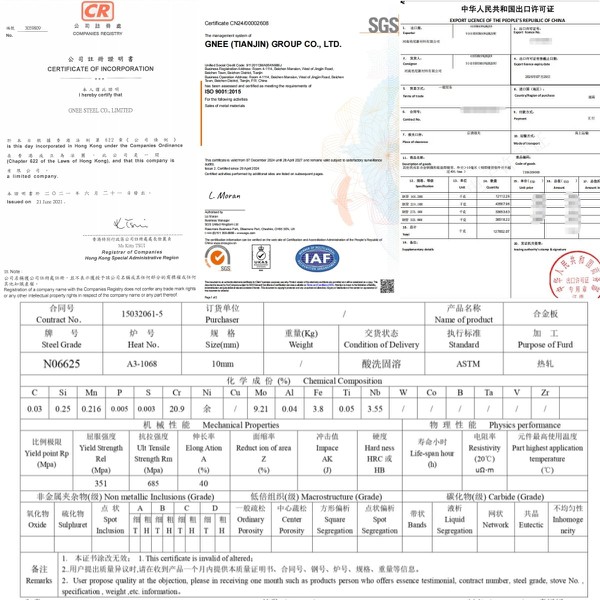

Gnee Alloy 625 Alloy Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Alloy inconel 625 Product Packing
Contact us for the latest export price quote for 625 Alloy
