How High a Temperature Can Monel K-500 Seamless Pipe Withstand?

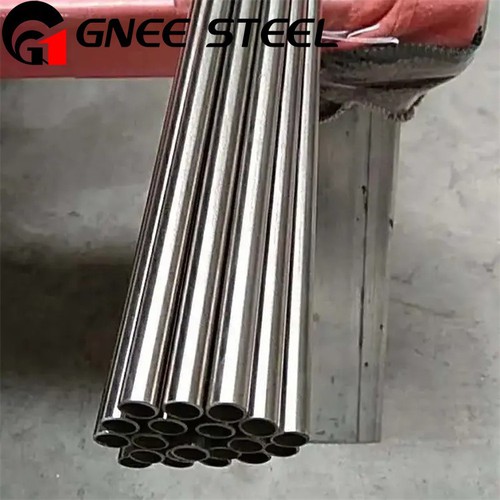

What Monel K-500 Seamless Pipe Actually Is

Monel K-500 carries the UNS designation N05500 and is the precipitation-hardenable member of the nickel-copper family. It is produced by melting a Monel 400 (UNS N04400) base composition and adding controlled amounts of aluminium and titanium, after which a two-stage thermal cycle is applied: a solution anneal followed by ageing at approximately 595 C. During ageing, fine gamma-prime particles of the Ni3(Al,Ti) type precipitate throughout the austenitic matrix and lock the structure into a much higher strength level without destroying the seawater resistance that made the nickel-copper family popular in the first place.

The practical consequence for a piping engineer is simple: the same corrosion behaviour as Monel 400, but roughly two to three times the yield strength. That combination is why pump shafts, valve stems, impellers, doctor blades, marine bolting and valve trim are the classic applications for K-500, and why the grade is normally ordered as cold-drawn seamless tube or hot-worked bar in the age-hardened condition rather than as soft annealed stock.

Chemical Composition Limits

The limits below follow the composition ranges applied to wrought K-500 bar, rod and wire in the ASTM B865 / ASME SB-865 family, and they are the ranges normally carried over by agreement when the same grade is produced as seamless tube or pipe.

Element Limit
Nickel (Ni) 63.0 min (balance)
Copper (Cu) 27.0 - 33.0
Aluminium (Al) 2.30 - 3.15
Titanium (Ti) 0.35 - 0.85
Iron (Fe) 2.00 max
Manganese (Mn) 1.50 max
Carbon (C) 0.25 max
Silicon (Si) 0.50 max
Sulphur (S) 0.010 max

The Real Service Temperature Ceiling

This is the question the article title asks, and it deserves a straight answer: the useful continuous service temperature of Monel K-500 is approximately 480 C (about 900 F). That is the point at which the gamma-prime strengthening phase starts to coarsen and the alloy progressively loses the strength it gained from ageing, drifting back toward Monel 400 levels. Short excursions above that temperature are tolerable, but the material is not a refractory-grade alloy and should never be selected on the assumption that it behaves like a nickel-chromium superalloy at 800 C or higher.

The melting range of the alloy is 1315 - 1350 C. That figure describes when the material turns liquid; it is a casting and welding parameter, not a working temperature, and quoting it as a service limit is a common and costly error. Density is 8.44 g/cm3 and thermal conductivity is approximately 17.6 W/(m.K) at room temperature, so thermal gradients in thick-wall tube are moderate compared with steels. One further point worth noting at design stage: ageing makes K-500 weakly magnetic, whereas Monel 400 is essentially non-magnetic, which matters for instruments and magnetic-sensitive assemblies.

A second high-temperature limitation is chemical rather than metallurgical. In sulphur-bearing or strongly reducing atmospheres at elevated temperature, K-500 is susceptible to embrittlement; the safe envelope narrows considerably compared with an oxidising environment. In hot concentrated caustic service, by contrast, the alloy performs in much the same way as Monel 400 and is widely used in that duty.

Mechanical Properties in the Two Standard Conditions

Condition Tensile, min 0.2 % Yield, min Elongation, min Hardness
Cold-worked and age hardened 1100 MPa (approx. 160 ksi) 790 MPa (approx. 115 ksi) 20 % 24 - 32 HRC
Hot-worked and age hardened 965 MPa (approx. 140 ksi) 690 MPa (approx. 100 ksi) 20 % 20 - 27 HRC

The spread between the two lines is entirely a function of the amount of cold work introduced before ageing. A tube mill that draws the shell to a specific reduction ratio can hit the higher line; a hot-extruded shell that is only aged will sit on the lower line. This is why the purchase order must state the condition, the reduction route and the test schedule, not simply the grade name.

Specifications Used When Ordering

Wrought K-500 bar, rod and wire is ordered to ASTM B865 / ASME SB-865, which is the primary specification for the grade. Forgings and forging stock follow ASTM B564 / ASME SB-564. Naval shafting has historically been bought to QQ-N-286. European enquiries usually reference DIN 17753 with the material number 2.4375. For Monel 400 in contrast, pipe and tube are ordered to ASTM B165, ASTM B163 or ASTM B725 depending on whether the product is bar, seamless tube or welded tube. There is no separate seamless tube specification dedicated solely to K-500 in the ASTM B163 / B165 families, so seamless K-500 tube is normally bought on a purchase order that invokes B865 chemistry together with agreed tube dimensions, wall tolerance, non-destructive testing and mechanical test requirements. Buyers should check that the mill certificate states the actual condition and the actual test results rather than only the grade.

Fabrication and Selection Notes

K-500 is welded with ERNiCu-7 filler wire or the matching covered electrode, and the joint should be aged after welding if full strength is required at the weld. Machining is far easier in the annealed condition than in the aged condition, so rough machining before ageing and finish machining after ageing is standard practice for complex parts. Hot forming should be followed by a full solution anneal plus re-ageing, because the precipitates formed during the original ageing cycle will otherwise be destroyed. Pickling after hot working uses the same nitric-hydrofluoric mixtures applied to Monel 400. The alloy should not be placed in contact with mercury, with nitric acid, or with strongly oxidising acid media, all of which attack the nickel-copper system.

Frequently Asked Questions

Q: What is the maximum continuous service temperature of Monel K-500 seamless pipe?
A: Approximately 480 C. Above that level the gamma-prime precipitates coarsen, the alloy softens toward Monel 400 values, and strength guarantees no longer apply.

Q: Does the 1315 - 1350 C melting range mean the alloy can work at 1000 C?
A: No. The melting range is a liquidus and solidus figure relevant to casting and welding. Service temperature and melting temperature are different quantities and must not be interchanged.

Q: Is Monel K-500 as corrosion resistant as Monel 400?
A: In seawater, brackish water, hydrofluoric acid and hot caustic the two grades behave very similarly. The differences are that K-500 is more sensitive to stress corrosion cracking and to hydrogen embrittlement in certain environments, and it is harder to weld.

Q: Is Monel K-500 magnetic?
A: The annealed material is essentially non-magnetic, but ageing makes it weakly magnetic. This must be considered in magnetic-sensitive instrumentation and in some electrical applications.

Q: Which standards apply to Monel K-500 bar, rod, wire and forgings?
A: ASTM B865 / ASME SB-865 for bar, rod and wire, and ASTM B564 / ASME SB-564 for forgings. European orders commonly reference DIN 17753 (W.Nr. 2.4375) and naval shafting has been specified to QQ-N-286.

Q: Can Monel K-500 be welded and then aged?
A: Yes. Weld with ERNiCu-7 filler and perform the ageing treatment after welding so that the weld zone reaches the same strength level as the parent metal.
