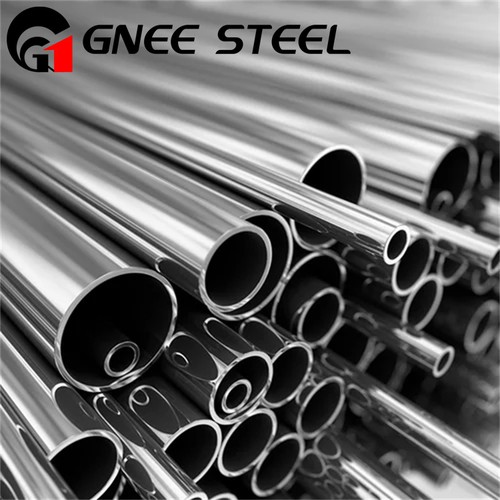

Small diameter Inconel X750 600 Pipe
GNEE Group offers Nickel Alloy Inconel X750 600 in a variety of forms, including:
Bars
Wires
Sheets
Forgings
Tubes
Flanges
Seamless and Welded Pipes
Welding Rods
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of small diameter inconel x750 600 pipe in China. If you're going to wholesale high quality small diameter inconel x750 600 pipe made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Small diameter Inconel X750 600 Pipe introduce
Inconel 600 Pipes & Tubes are nickel-chromium-iron alloys with excellent corrosion resistance, thermal stability, and strength at high temperatures. These pipes and tubes are mainly used in heat-treating and exothermal applications up to 2000 degrees Fahrenheit. Inconel 600 also provides superior mechanical properties, good workability & weldability.
Inconel X750 Tube (UNS N07750) made by nickel-chromium-iron precipitation-hardening alloy. Alloy X750 Tubing have good creep and oxidation resistance, and are formed in different shapes. Inconel X750 Tubing can be strengthened by solid-solution hardening, work hardening, and precipitation hardening.Inconel X750 Pipe are classified into three groups such as cobalt-based, nickel-based, and iron-based alloys.Inconel X750 Seamless Tube and Inconel X750 Welded Tube have the ability to function under high temperatures and severe mechanical stress, and also where high surface stability is required.The properties of Nickel Alloy X750 Tube are similar to Alloy 718 Tube however alloy X750 is more readily fabricated.
Small diameter Inconel X750 600 Pipe
Inconel Alloy x750 Tube Chemical Composition
| % | NI | CR | C | MN | CU | SI | S | FE |
|---|---|---|---|---|---|---|---|---|
| Min | 70 | 14 | – | – | – | – | – | 5 |
| Max | – | 17 | 0.08 | 1 | 0.50 | 0.50 | 0.01 | 9 |
Inconel x750 Tubing Mechanical Properties
| MECHANICAL & PHYSICAL PROPERTIES | 20°C | 200°C | 400°C | 427°C | 538°C | 600°C | 649°C | 732°C | 816°C |
|---|---|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1503.1 | 1351.4 | 744.6 | 688.8 | – | 622.6 | 593 | – | 600 |
| 0.2% Yield Strength /MPa | 979.1 | 737.7 | 365.4 | 340.6 | – | 278.5 | 250.3 | – | 253.7 |
| Elongation % | 36 | 49 | 47 | 47 | – | 46 | 47 | – | 48 |
| Charpy Impact V-notch /J | 436.6 | 115.2 | 189.8 | – | – | – | – | – | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | – | – | 14.22 | 14.94 | 15.12 | 15.48 | 15.66 | 15.84 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | – | 10 | 11.2 | 12.1 | 12.9 | 15 | 15.66 | 15.84 |
| Modulus of Elasticity / x105 MPa | – | – | 1.95 | 1.89 | – | 1.8 | 1.71 | – | 1.61 |
ASTM B167 Inconel 600 Seamless Pipe & Tube Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
ASME SB515 Inconel 600 Welded Tubing Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
GNEE Group Product Testing
Inconel round tube
GNEE Group Product Delivery
Thin-walled alloy Inconel tube
FAQ
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
