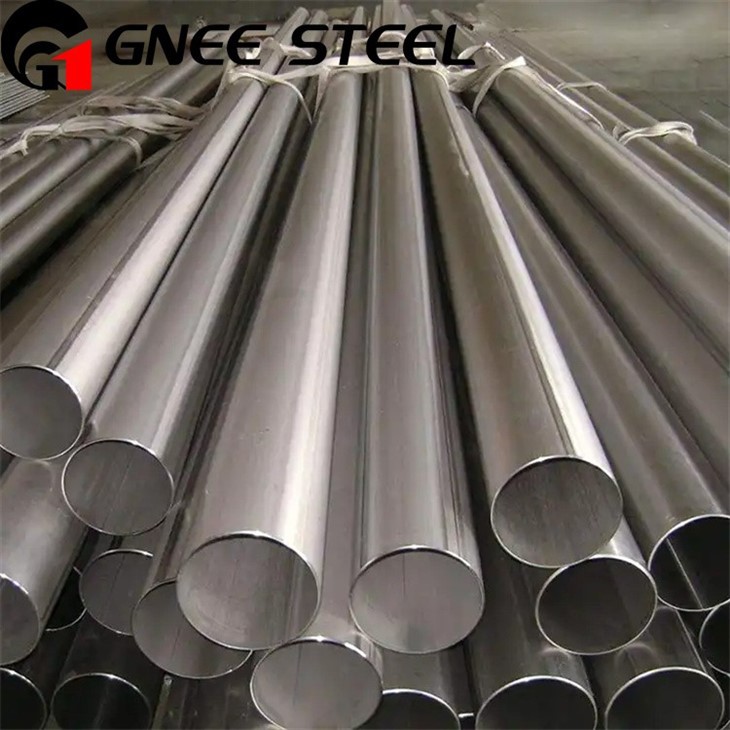

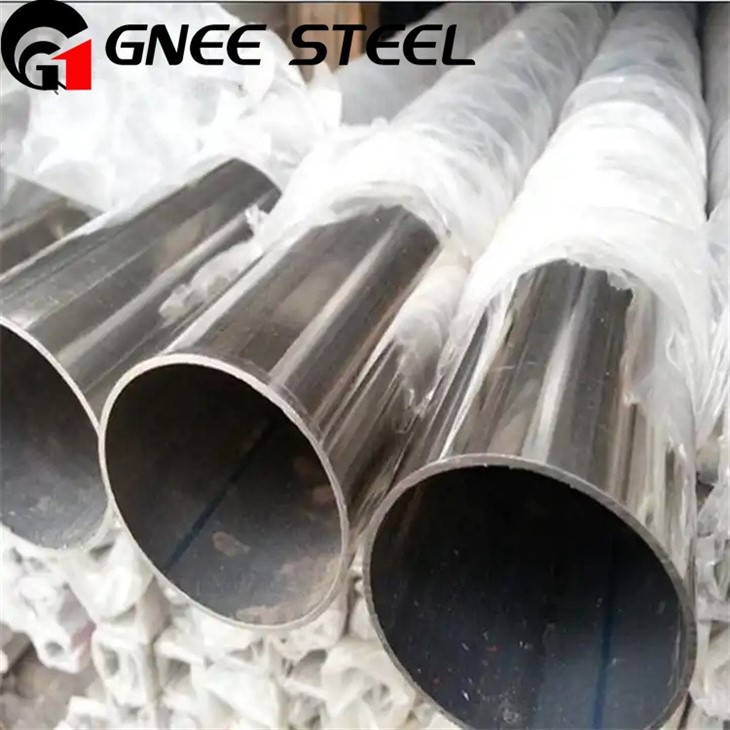

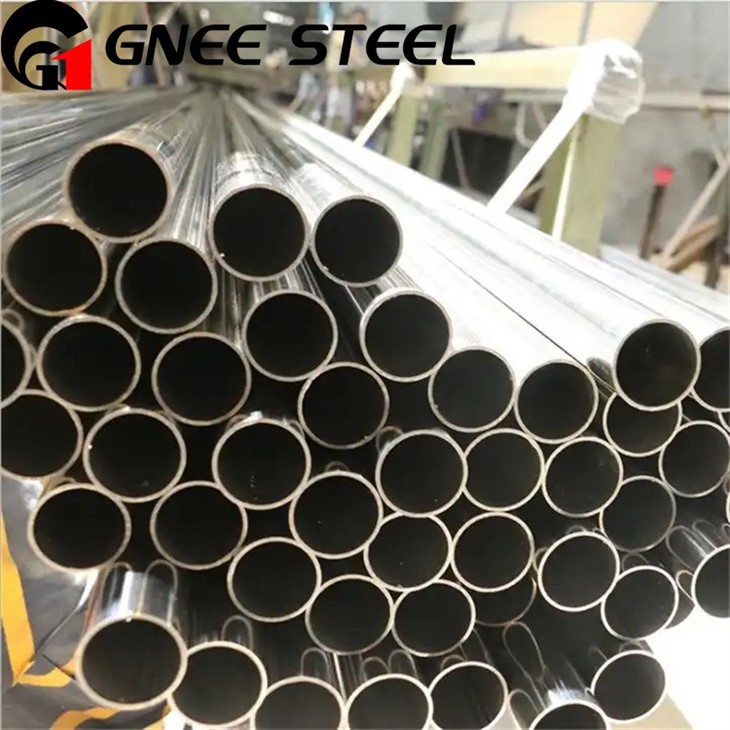

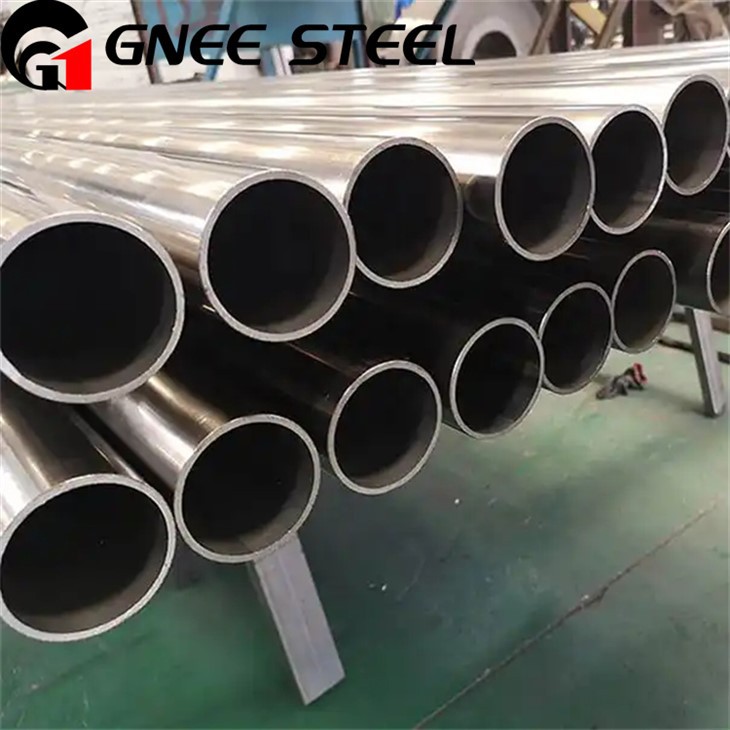

Cold Drawn High Temperature Alloy GH4169 Tube
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of cold drawn high temperature alloy gh4169 tube in China. If you're going to wholesale high quality cold drawn high temperature alloy gh4169 tube made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Our cold-drawn GH4169 tubing represents the highest standard in nickel-based superalloy manufacturing. The cold-drawing process not only shapes the tubing but also significantly refines the grain structure, thereby enhancing mechanical properties such as higher hardness and greater yield strength.
As a leading exporter, Gnee Steel understands that aerospace and nuclear power projects often require non-standard sizes. Therefore, we focus on providing custom sizes and lengths, ensuring that every tube seamlessly integrates into your complex components while maintaining a superior surface finish.
Get a quote for custom GH4169 cold-drawn tubing
Cold Drawn High temperature Alloy GH4169 Tube introduce
Cold-drawn GH4169 (Inconel 718) high-temperature alloy tubing is a precipitation-hardening nickel-based alloy designed to achieve exceptional strength and corrosion resistance at temperatures up to 650°C. Its high-temperature performance is commonly used in aerospace, turbine engine, and nuclear energy applications. The cold-drawing process improves surface finish, dimensional accuracy, and material strength, while annealing is typically used to optimize microstructure and control grain size.
precision GH4169 Tube Description
| Feature | Details |
| Material Grade | GH4169 / Inconel 718 / UNS N07718 |
| Standard Compliance | AMS 5589, ASTM B670, GJB 2296A |
| Outer Diameter (OD) | 3mm – 150mm (Custom Sizes Available) |
| Wall Thickness (WT) | 0.5mm – 15mm |
| Max Length | Up to 12 Meters (Depending on OD/WT) |
| Finish | Cold Drawn, Bright Annealed, or Pickled |
Alloy GH4169 Tube Specification
Chemical composition of GH4169 pipe (weight %)
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| GH4169 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
GH4169 Alloy Tubing Mechanical Properties
| Property | Value | Unit Conversion |
|---|---|---|
| Density | 8.2 g/cm3 | - |
| Melting Point | 1350∘C | 2460∘F |
| Tensile Strength | 135,000 Psi | 930 MPa |
| Yield Strength (0.2% Offset) | 75,000 Psi | 482 MPa |
| Elongation | 45% | - |
Alloy GH4169 Tube Physical Properties
| Property | Solution Treated | Solution Treated and Aged |
|---|---|---|
| Density | 0.296 lb/in3 (8.192 g/cm3) | 0.297 lb/in3 (8.22 g/cm3) |
| Specific Gravity | 8.19 | 8.22 |
| Melting Range | 2500−2600∘F | 1370−1430∘C |
Click to download the GH4169 alloy PDF file now
Common Cold Drawn GH4169 Tube Sizes
| OD (mm) | OD (in) | Wall Thickness (mm) | Wall Thickness (in) | Typical Application |
|---|---|---|---|---|
| 6.35 | 0.250 | 0.89 | 0.035 | Fuel system lines |
| 9.53 | 0.375 | 1.07 | 0.042 | Bleed air ducts |
| 12.70 | 0.500 | 1.24 | 0.049 | High-pressure hydraulic |
| 15.88 | 0.625 | 1.65 | 0.065 | Structural lines |
| 19.05 | 0.750 | 2.11 | 0.083 | High-temperature lines |
| 25.40 | 1.000 | 2.77 | 0.109 | High-pressure lines |
Contact us to customize GH4169 products to fit your project dimensions
Main Applications of GH4169 Pipe
Semiconductor Industry: High-purity gas delivery systems and chemical distribution lines.
Aerospace and Defense: Precision fuel manifolds, nozzles, and hydraulic sensing lines.
Instrumentation: Pressure sensors and capillary tubes for chromatographs.
Nuclear and Laboratory Equipment: High-pressure sampling tubing for corrosive environments.
GH4169 Non-destructive Testing (NDT) Requirements for Tubes
Gnee Alloy as a trusted supplier, Gnee Steel adheres to a "zero-defect" principle. Every GH4169 seamless pipe undergoes a rigorous inspection process before shipment.
| Test Method | Requirement | Standard |
|---|---|---|
| Eddy Current Testing (ET) | 100% | ASTM E426 |
| Ultrasonic Testing (UT) | As specified / typically required for aviation | ASTM E213 |
| Hydrostatic Test | 100% | ASME Section VIII |
| Pneumatic Test | As specified (clean systems) | – |
| Visual Inspection | 100% (10-30x magnification) | ASTM E543 |
GNEE Group GH4169 superalloy Packaging
GNEE Group GH4169 superalloy Packaging
Contact us to choose your preferred packaging and shipping method
Why Choose Gnee Steel's GH4169 BA Tubing?
✅️Ultra-Clean Surface (Oxidation-Free): Hydrogen-protected annealing ensures zero oxidation or scaling. The tubing is ready for cleanroom applications upon delivery.
✅️Micro-Tolerances: We strictly control dimensions to within ±0.05mm tolerances, ensuring a perfect fit in high-pressure joints and rail welding.
✅️Enhanced Corrosion Resistance: The smooth, mirror-finish surface significantly reduces the effective surface area, preventing contaminant buildup and minimizing the risk of pitting corrosion.
✅️Superior Mechanical Properties: While achieving high surface quality, the tubing retains all the high-temperature strength and fatigue resistance of the GH4169 (Inconel 718) high-temperature alloy.
GH4169 certificate
Click to view our professional certificates for GH4169 alloy
FAQ
Q: Can you provide BA tubes for semiconductor or cleanroom applications?
A: Yes, our BA GH4169 tubes are widely used in high-purity gas delivery. We provide additional ultra-sonic cleaning and specialized packaging to meet cleanroom standards.
Q: Does Bright Annealing affect the strength of Inconel 718?
A: Not at all. Bright Annealing is a thermal process that optimizes the grain structure for better ductility and surface finish while maintaining the alloy's core high-temperature mechanical properties.
Q: What is the maximum length for your high-precision BA tubes?
A: We provide straight lengths up to 6 meters, but for small diameter tubes, we can also supply them in seamless coils to minimize joints in long-distance fluid lines.
Q: How do you protect the surface during shipping?
A: Each BA tube is individually sleeved in plastic and packed in reinforced wooden crates or hard tubes to prevent any surface scratches or contamination during transit.
