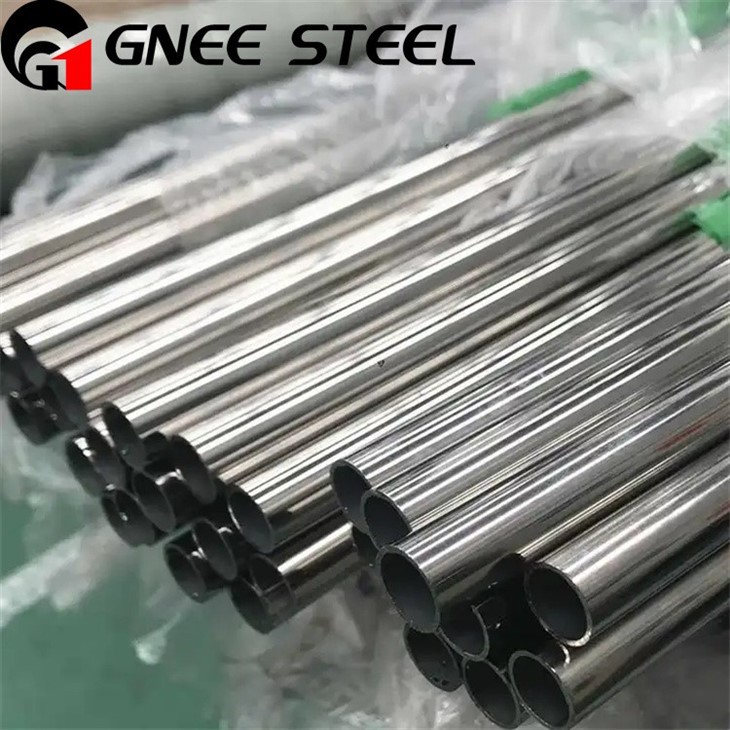

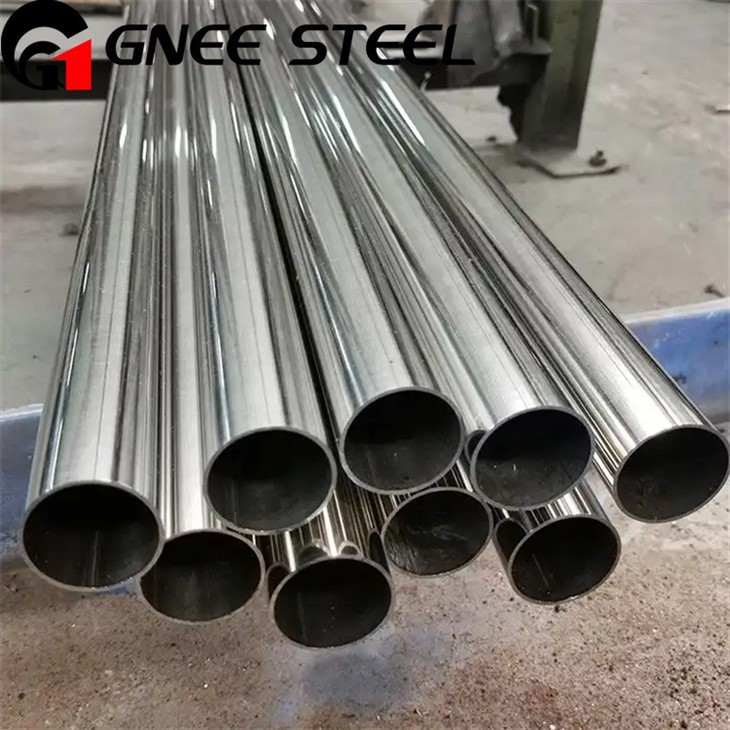

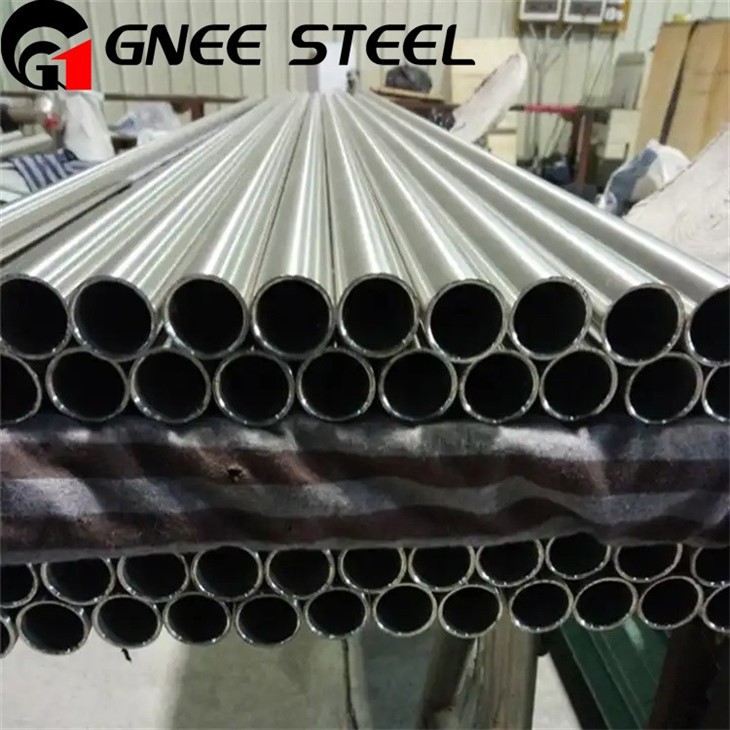

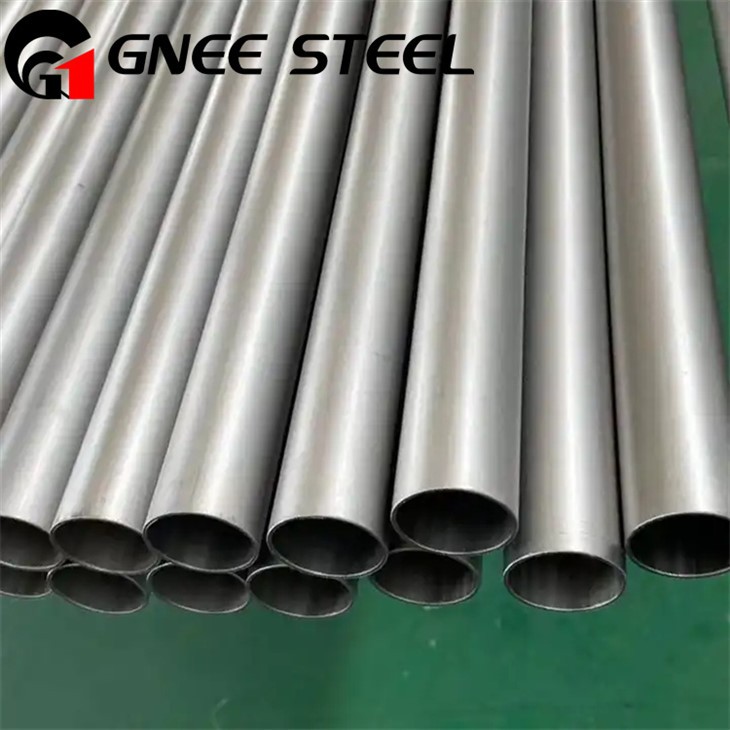

High-precision Bright Annealed (BA) GH4169 / 718 Tubing
Gnee Steel is a professional supplier of bright annealed (BA) GH4169 tubing, providing products with mirror-like finish and oxygen-free purity for high-end fluid systems.
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of high-precision bright annealed (ba) gh4169 / 718 tubing in China. If you're going to wholesale high quality high-precision bright annealed (ba) gh4169 / 718 tubing made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
Our Bright Annealed (BA) GH4169/718 tubing is the preferred choice for industries with extremely high cleanliness and precision requirements. Unlike standard tubing that requires acid pickling, our BA tubing undergoes heat treatment in a 100% controlled hydrogen atmosphere.
This advanced process prevents oxidation during annealing, resulting in a mirror-like finish (Ra < 0.4μm) on both the inner and outer diameters of the tubing. The final product is ultra-clean, scale-free tubing, eliminating the risk of particulate contamination in sensitive aerospace fuel lines or semiconductor gas delivery systems.
Inquire for bulk pricing of GH4169 precision tubes
GNEE GH4169 BA
Pipe introduce
High-precision bright annealed (BA) GH4169 (Inconel 718) tubing is a nickel-based superalloy designed for demanding applications requiring high strength and high temperatures. Also known as UNS N07718 or Werkstoff Nr. 2.4668, this material undergoes special processing to achieve a high-quality surface finish and tight dimensional tolerances, making it suitable for industries such as aerospace, oil and gas, and medical equipment.
precision GH4169 Tube Description
| Feature | Details |
| Material Grade | GH4169 / Inconel 718 / UNS N07718 |
| Surface Finish (Ra) | ≤ 0.4μm (Internal & External) |
| Heat Treatment | Bright Annealing (BA) in Hydrogen Atmosphere |
| Dimensional Tolerance | Up to ±0.03mm - ±0.05mm |
| Outer Diameter (OD) | 1mm – 38mm (Specializing in Small Diameter) |
| Wall Thickness (WT) | 0.1mm – 3.0mm |
| Cleanliness | ASTM G93 Level C / Semi Grade compliant |
GNEE bright annealed GH4169 Tube Specification Sheet
Chemical composition (wt%) of GH4169 precision tube
| Element | Content (%) | Standard Requirement | Notes |
|---|---|---|---|
| Nickel (Ni) | 50.0 – 55.0 | 50.0 – 55.0 | Matrix element; provides high-temperature stability |
| Chromium (Cr) | 17.0 – 21.0 | 17.0 – 21.0 | Oxidation and corrosion resistance |
| Iron (Fe) | Balance (~18-20) | Balance | Fe-Ni-Cr base alloy |
| Niobium (Nb) | 4.75 – 5.50 | 4.75 – 5.50 | Primary γ″ strengthening element |
| Molybdenum (Mo) | 2.80 – 3.30 | 2.80 – 3.30 | Solid-solution strengthening |
| Titanium (Ti) | 0.65 – 1.15 | 0.65 – 1.15 | Forms γ′ strengthening phase |
| Aluminum (Al) | 0.20 – 0.80 | 0.20 – 0.80 | Forms γ′ strengthening phase |
| Carbon (C) | ≤ 0.08 | ≤ 0.08 | Low carbon for weldability |
| Manganese (Mn) | ≤ 0.35 | ≤ 0.35 | Deoxidizer |
| Silicon (Si) | ≤ 0.35 | ≤ 0.35 | Deoxidizer |
| Phosphorus (P) | ≤ 0.015 | ≤ 0.015 | Ensures toughness |
| Sulfur (S) | ≤ 0.015 | ≤ 0.015 | Ensures hot workability |
| Boron (B) | 0.002 – 0.006 | 0.002 – 0.006 | Grain boundary strengthener |
| Cobalt (Co) | ≤ 1.00 | ≤ 1.00 | Residual element |
| Copper (Cu) | ≤ 0.30 | ≤ 0.30 | Residual element |
Physical properties of precision GH4169 pipe
| Property | Value | |
|---|---|---|
| Density | 8.19 g/cm³ | |
| Melting Range | 1260 – 1336°C | |
| Thermal Conductivity (20°C) | 11.4 W/m·K | |
| Thermal Conductivity (500°C) | ~16.0 W/m·K | |
| Coefficient of Thermal Expansion (20-100°C) | 13.0 × 10⁻⁶/°C | |
| Coefficient of Thermal Expansion (20-600°C) | ~14.5 × 10⁻⁶/°C | |
| Specific Heat (20°C) | 435 J/kg·K | |
| Specific Heat (600°C) | ~500 J/kg·K | |
| Modulus of Elasticity (20°C) | ~200 GPa (29.0 × 10⁶ psi) | |
| Modulus of Elasticity (600°C) | ~175 GPa (25.4 × 10⁶ psi) | |
| Poisson's Ratio | 0.29 – 0.30 | |
| Electrical Resistivity | 1.25 µΩ·m | |
| Magnetic Permeability | 1.005 (slightly magnetic) |
Click to download the GH4169 alloy PDF file now
GH4169 Precision Tube Dimensions and Specifications
| OD (mm) | OD (in) | Wall Thickness (mm) | Wall Thickness (in) | Typical Application |
|---|---|---|---|---|
| 3.18 | 0.125 | 0.51 | 0.020 | Instrumentation lines |
| 4.76 | 0.188 | 0.71 | 0.028 | Control lines |
| 6.35 | 0.250 | 0.89 | 0.035 | Fuel system lines |
| 9.53 | 0.375 | 1.07 | 0.042 | Bleed air ducts |
| 12.70 | 0.500 | 1.24 | 0.049 | High-pressure hydraulic |
| 15.88 | 0.625 | 1.65 | 0.065 | Structural lines |
Contact us to customize GH4169 products to fit your project dimensions
Main Applications of GH4169 Alloy Tubes

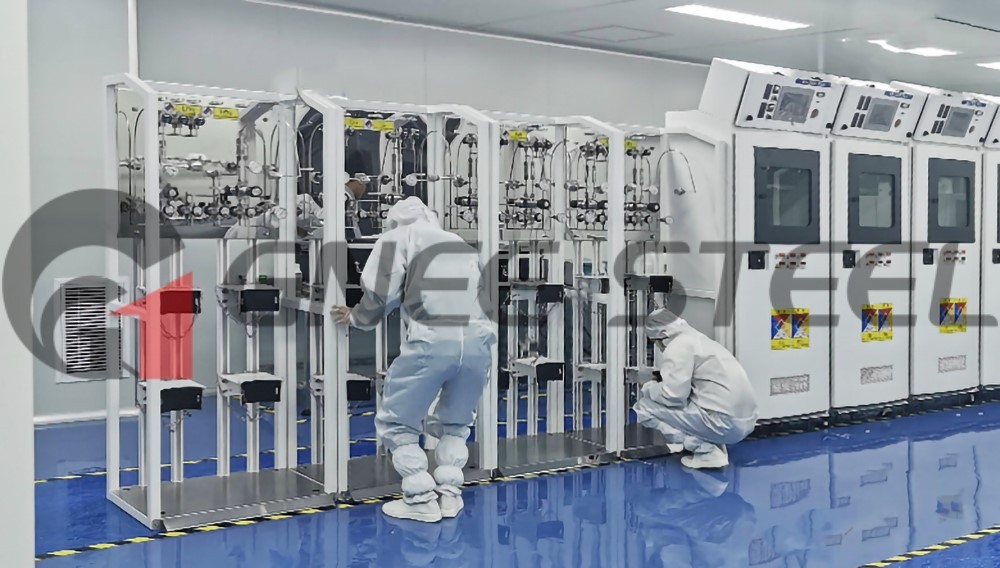

Semiconductor Industry: High-purity gas delivery systems and chemical distribution lines.
Aerospace and Defense: Precision fuel manifolds, nozzles, and hydraulic sensing lines.

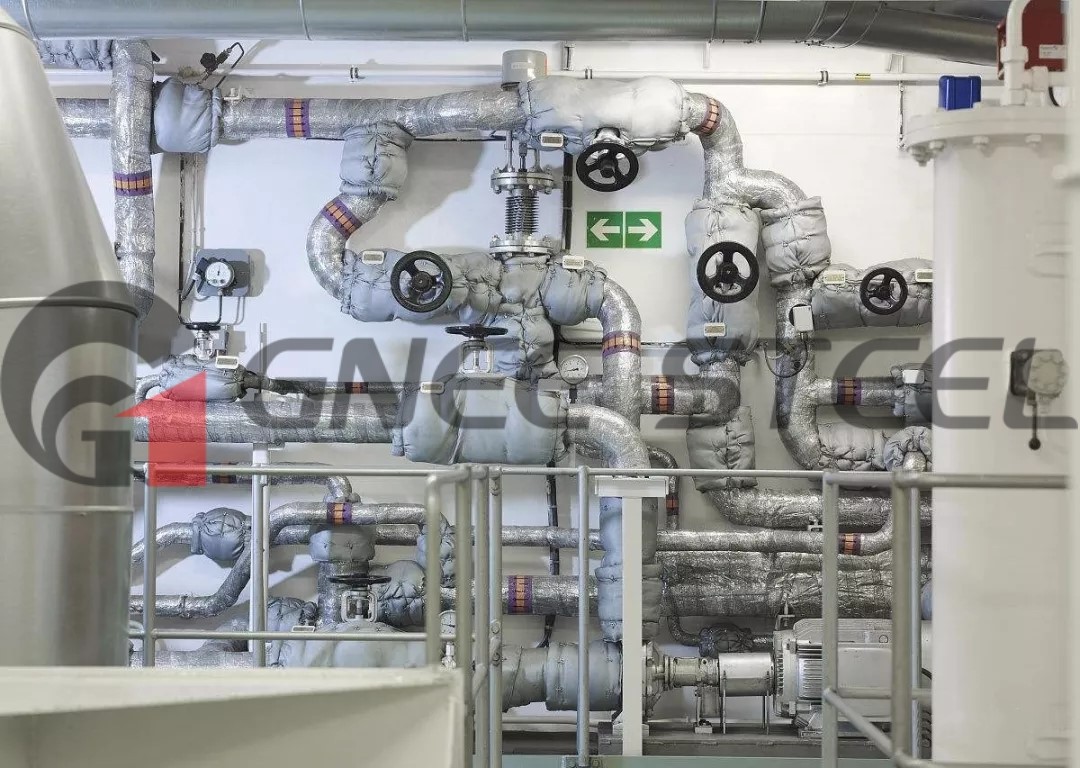

Instrumentation: Pressure sensors and capillary tubes for chromatographs.

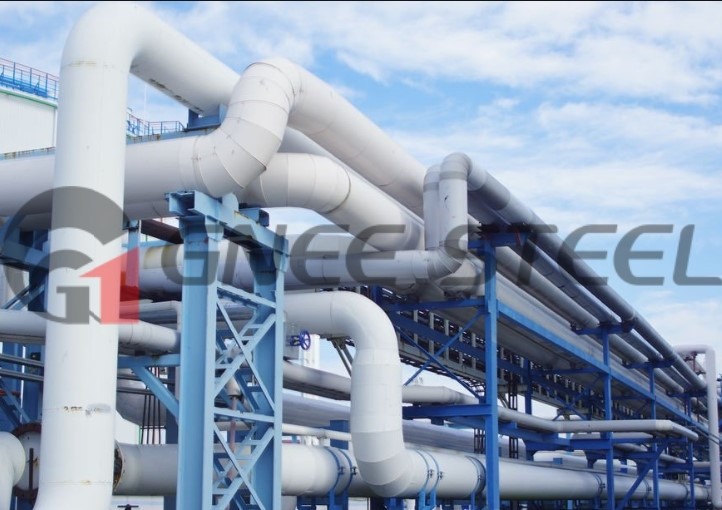

Nuclear and Laboratory Equipment: High-pressure sampling tubing for corrosive environments.

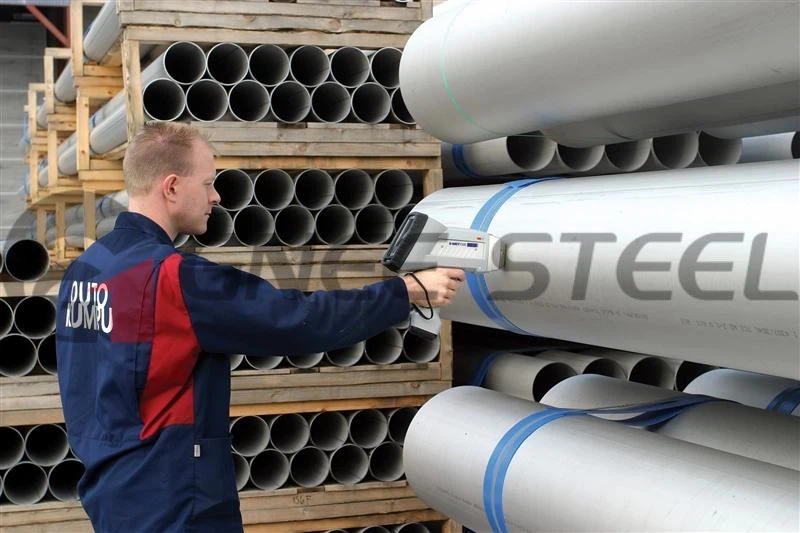

GH4169 Non-destructive Testing (NDT) Requirements for Precision Tubes
Gnee Alloy as a trusted supplier, Gnee Steel adheres to a "zero-defect" principle. Every GH4169 seamless pipe undergoes a rigorous inspection process before shipment.

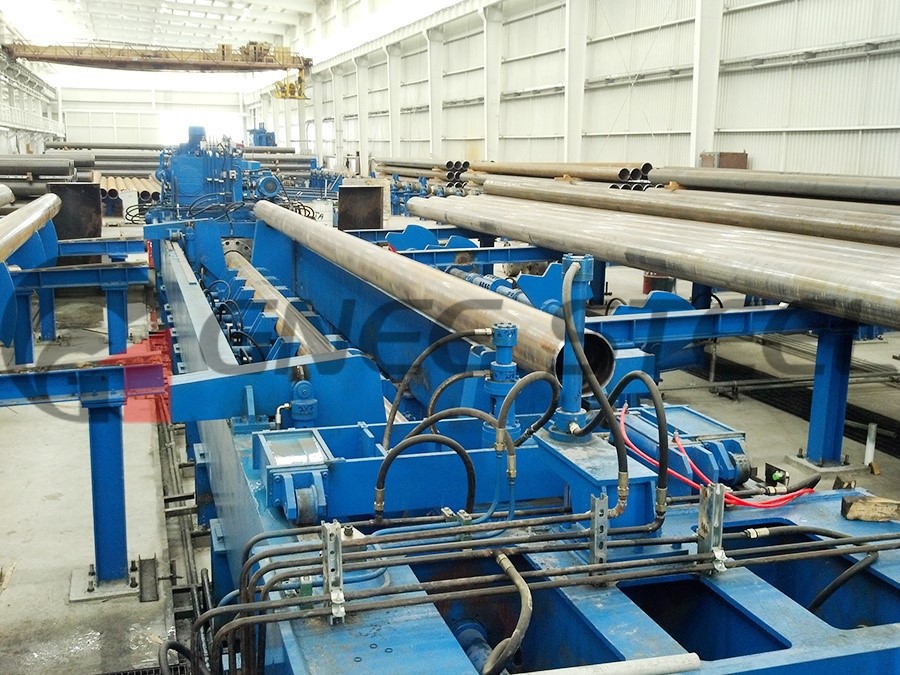

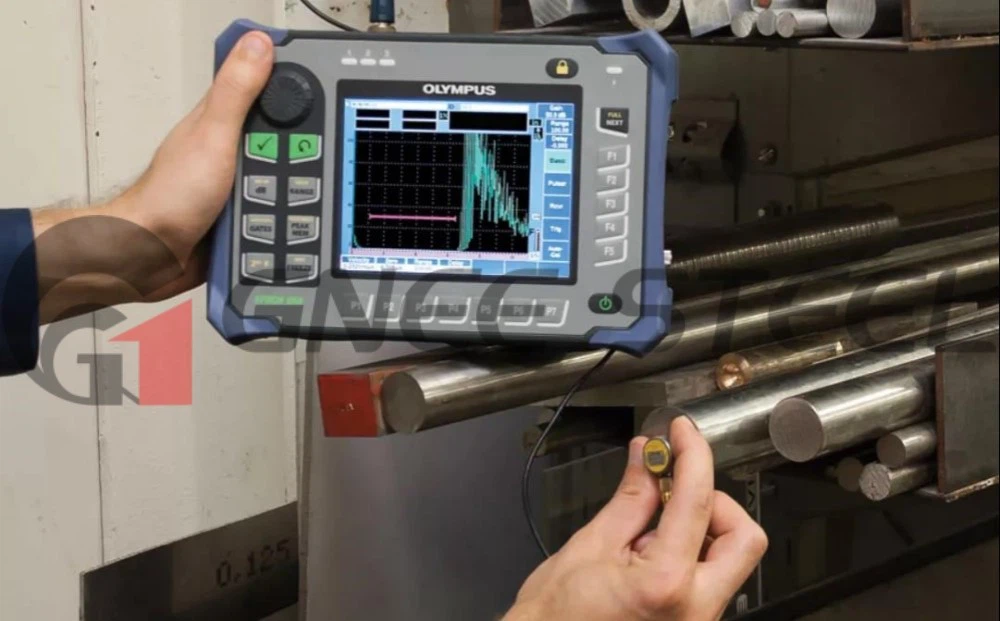

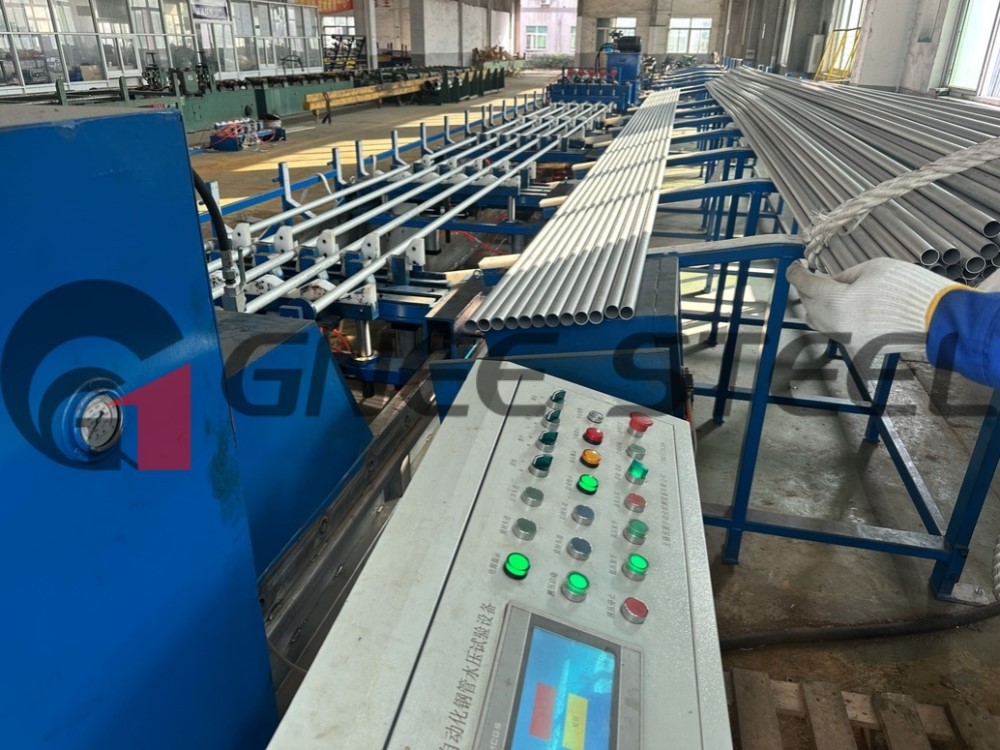

| Test Method | Requirement | Standard |
|---|---|---|
| Eddy Current Testing (ET) | 100% | ASTM E426 |
| Ultrasonic Testing (UT) | As specified / typically required for aviation | ASTM E213 |
| Hydrostatic Test | 100% | ASME Section VIII |
| Pneumatic Test | As specified (clean systems) | – |
| Visual Inspection | 100% (10-30x magnification) | ASTM E543 |
| Borescope Inspection | 100% (for small diameter tubes) | – |
GNEE Group GH4169 superalloy Packaging
GNEE Group GH4169 superalloy Packaging
Contact us to choose your preferred packaging and shipping method
Why Choose Gnee Steel's GH4169 BA Tubing?
✅️Ultra-Clean Surface (Oxidation-Free): Hydrogen-protected annealing ensures zero oxidation or scaling. The tubing is ready for cleanroom applications upon delivery.
✅️Micro-Tolerances: We strictly control dimensions to within ±0.05mm tolerances, ensuring a perfect fit in high-pressure joints and rail welding.
✅️Enhanced Corrosion Resistance: The smooth, mirror-finish surface significantly reduces the effective surface area, preventing contaminant buildup and minimizing the risk of pitting corrosion.
✅️Superior Mechanical Properties: While achieving high surface quality, the tubing retains all the high-temperature strength and fatigue resistance of the GH4169 (Inconel 718) high-temperature alloy.

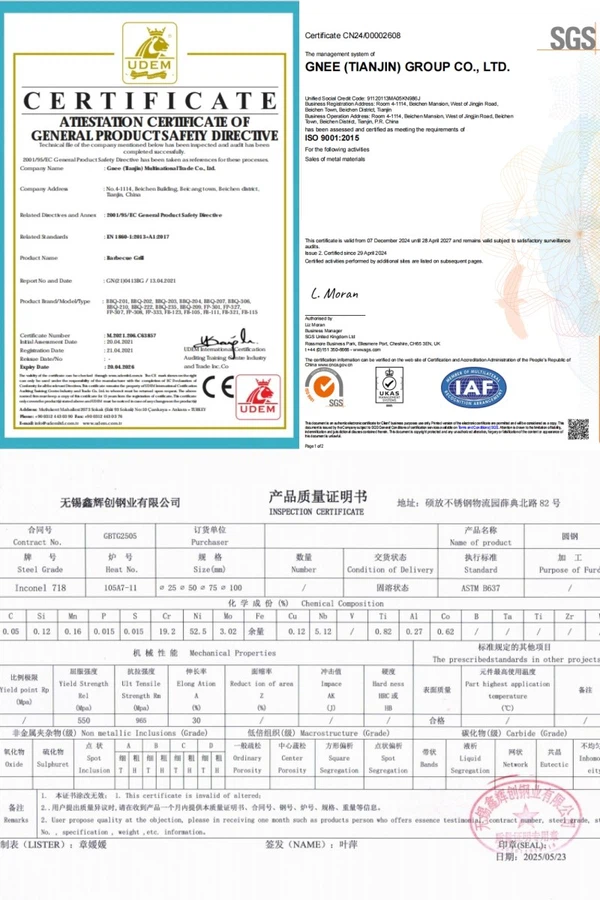

GH4169 certificate
Click to view our professional certificates for GH4169 alloy
FAQ
Q: Can you provide BA tubes for semiconductor or cleanroom applications?
A: Yes, our BA GH4169 tubes are widely used in high-purity gas delivery. We provide additional ultra-sonic cleaning and specialized packaging to meet cleanroom standards.
Q: Does Bright Annealing affect the strength of Inconel 718?
A: Not at all. Bright Annealing is a thermal process that optimizes the grain structure for better ductility and surface finish while maintaining the alloy's core high-temperature mechanical properties.
Q: What is the maximum length for your high-precision BA tubes?
A: We provide straight lengths up to 6 meters, but for small diameter tubes, we can also supply them in seamless coils to minimize joints in long-distance fluid lines.
Q: How do you protect the surface during shipping?
A: Each BA tube is individually sleeved in plastic and packed in reinforced wooden crates or hard tubes to prevent any surface scratches or contamination during transit.
