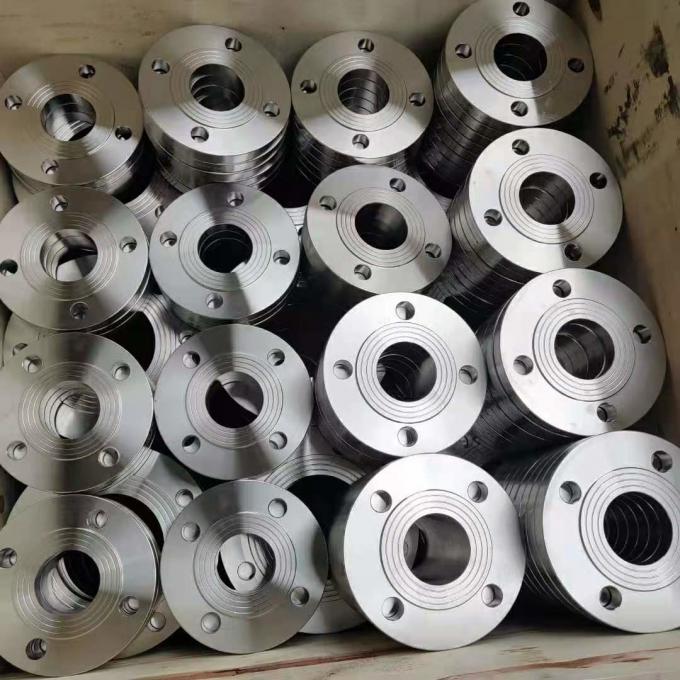

ASME B16.5 ASTM B564 Hastelloy C276 Socket Weld Flange 3 Inch CL150
Description
| Products: | Stainless Steel Flange | Grade: | 304 316L 321 310S 2205 904L C276.etc |
|---|---|---|---|
| Size: | DN30 - DN1000 | Company: | Factory |
| Standard: | GB ASTM JIS DIN | Other Products: | Elbow, Fitting, Cross.etc |
| High Light: |
ASME B16.5 cl150 socket weld flange,ASTM B564 socket weld flange cl150,Hastelloy C276 socket weld pipe flanges |
||
ASME B16.5 ASTM B564 Hastelloy C276 Socket Weld Flange 3 Inch CL150
Quick Details
Size: 3 Inch (DN80)
Place of Origin: China
Brand Name: Delta
Standard or Nonstandard: Standard
Material: Hastelloy C276 (UNS N10276)
Technics: Forging
Type: Socket Weld Flange
Shape: Round
Standard: ASME, ANSI, etc
Packaging & Delivery
| Packaging Details: | Seaworthy plywood case or as customer requests |
|---|---|
| Delivery Detail: | 2 - 10 days after receiving the deposit |
Specifications
ASME B16.5 ASTM B564 Hastelloy C276 Socket Weld Flange 3 Inch CL150
1. Material: Hastelloy C276 (UNS N10276)
2. Size: 3" (DN80)
3. Standard: ASME B16.5
4. Type: Socket Weld Flange
5. Pressure: 150LBS
A socket weld flange is a type of pipe connector that incorporates a socket into which a pipe is welded. The inclusion of a socket in the socket weld flange creates a connection that is much stronger than a comparable slip-on flange. The socket weld flange was designed to work on small size, high-pressure pipelines. This flange is very popular in chemical plants where a smooth-flowing connection is needed in all flange joints. The benefit of a flanged connection is that the pipe can be easily disconnected at the flange and reassembled just as easily.
China Flange Manufacturer Yaang supplies ASME B16.5 ASTM B564 Hastelloy C276 Socket Weld Flange, 3 Inch, CL150.
Chemical Composition of Grade Hastelloy C276 (UNS N10276)
| C | Co | Cr | Fe | Mn | Mo | Ni | P | S | Si | V | W |
| Max | Max | Max | Max | Max | Max | Max | |||||
| 0.01% | 2.5% |
14.5% -16.5% |
4-7% | 1.0% | 15 -17% | BAL | .04% | 0.03% | 0.08% | 0.35% | 3-4.5% |
| Hastelloy C276 Socket Weld Flange | ||
| 1 | Material: |
Stainless Steel: such as 304, 304L, 316, 316L, 321 , 310S, 904L, S31803, F51 and so on. |
| 2 | Standard: | GB, JIS, BS, DIN, ANSI and Non standard |
| 3 | ANSI Class: | 15, 030, 040, 060, 090 |
| 4 | Size: | 1/2" - 24" |
| 5 | Type: |
Slip-on flanges, Blind flanges, Lap joint flanges, Welding neck flanges,Plate flange, Socket welding flanges and Treaded flanges |
| 6 | Pressure ratings: |
Class: 150 300 400 600 900 1500 and 2500 PN: 6 10 16 25 40 64 and 160 , 5K - 40K and so on |
| 7 | Sealing surface: | FF ,RF, LJ, FM , R.T.J , R.J and so on . |
| 8 | Production process: | raw material-cutting-heating-forging-heat treatment-maching-inspection. |
| 15 | Application: |
petroleum, chemical, power, gas, water, linepipe, heat exchanger, shipbuilding, construction, etc. |
| 16 | Tolerance: | not less than +_8% of normal wall thickness. |

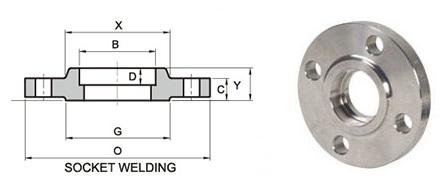

Dimensions of ANSI/ASME B16.5 Class 150 Socket Weld Flanges
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Bore | Depth of Socket.D |
Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
| inch | dn | O | C | X | G | Y | B | D | BC | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 22.40 | 9.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 27.70 | 11.20 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 34.50 | 12.70 | 79.30 | 15.80 | 4 | 1/2" | 0.9 | 2 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 43.20 | 14.20 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 49.50 | 15.80 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 62.00 | 17.50 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 74.70 | 19.10 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 90.70 | 20.60 | 152.40 | 19.10 | 4 | 5/8" | 4.2 | 9.2 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 103.40 | 177.80 | 19.10 | 8 | 5/8" | 5.2 | 11.4 | |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 116.10 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 | |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 143.80 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 | |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 170.70 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 | |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 221.50 | 298.50 | 22.40 | 8 | 3/4" | 12.6 | 27.7 | |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 276.40 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.6 | |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 327.20 | 431.80 | 25.40 | 12 | 7/8" | 29.5 | 65 | |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 359.20 | 476.30 | 28.50 | 12 | 1" | 38 | 84 | |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 410.50 | 539.80 | 28.50 | 16 | 1" | 42 | 93 | |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 461.80 | 577.90 | 31.80 | 16 | 1 1/8" | 54 | 120 | |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 513.10 | 635.00 | 31.80 | 20 | 1 1/8" | 70 | 155 | |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 616.00 | 749.30 | 35.10 | 20 | 1 1/4" | 94 | 207 | |
APPLICATIONS:
1. petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers' requirements;
Where can we find the high quality ASME B16.5 ASTM B564 Hastelloy C276 Socket Weld Flange 3 Inch CL150.
You can visit this website: www.yaang.com (Yaang Pipe Industry Co., Limited is a China WNRF Flange Manufacturer).
