When sourcing GH3030 (Nimonic 75 / XH78T) high-temperature alloy round bars, chemical composition is only one factor. Your choice of surface treatment will significantly impact productivity, tool life, and total project cost.
Should you invest in precision-ground bars or opt for more economical peeled bars? As a leading manufacturer, Gnee Steel offers this best-practice sourcing guide to help you make the right technical and financial decisions.
Get a quote quickly for specific surface treatments of GH3030
How to Choose the Best GH3030 Bar? | Gloss Polishing vs Peel-Off Surface Finish
How to Choose the Best GH3030 Bar? | Gloss Polishing vs Peel-Off Surface Finish
When selecting GH3030 bars, it is necessary to confirm that they are high-temperature nickel-chromium solid solution alloys suitable for environments of 800℃-1100℃, and are commonly used in aerospace combustion chambers. Key selection factors include: confirming the chemical composition (approximately 40% nickel, 20% chromium), confirming the tensile strength of 540-650 MPa, selecting a suitable surface treatment (black, bright, or polished), and ensuring compliance with standards such as GB/T 15007.
What are the components of GH3030?
GH3030 is a solid solution strengthened superalloy, primarily composed of nickel (Ni) and chromium (Cr), typically with 80% Ni and 20% Cr. This simple yet efficient alloy system provides excellent mechanical and chemical stability even under harsh conditions.

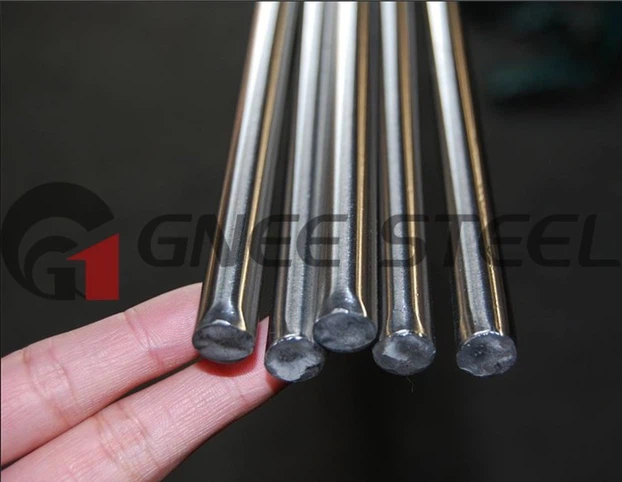

1. GH3030 Peeled Bar Stock: Ideal for Forging and Rerolling
Peeled bar stock is produced by removing the rough, oxidized "black" surface of hot-rolled bars using a specialized peeling machine.
Surface Finish: Smooth but matte, with visible machining marks (Ra 3.2 - 6.3 μm).
Machining Tolerances: Typically +/- 0.5mm to 1.0mm.
Optimal Uses: For further hot forging, ring rolling, or heavy machining where the outer layer is significantly removed regardless.
Reasons to Buy: It is the most cost-effective solution in the forging shop. Peeling removes common surface cracks and defects found in hot-rolled bars, ensuring your forgings are defect-free without the high costs of precision grinding.
2. GH3030 Bright Grinding Bars: The Standard for Precision Machining
For high-end CNC machining, our grinding bars are the gold standard. These bars are centerlessly ground to achieve a mirror-like finish and extremely high dimensional accuracy.
Surface Finish: Bright, Reflective, Ultra-smooth (Ra ≤ 0.8 μm).
Machining Tolerances: Precision h8, h9, or h11 tolerances.
Optimal Applications: Automated lathes, CNC turning, and precision aerospace fasteners.
Reasons to Buy: Tight machining tolerances allow the bars to glide perfectly through machine tool chucks, reducing vibration and tool wear. This is a "ready-to-use" solution, eliminating the need for roughing in your factory.
3.Comparison Table of GH3030 Peeling Rods and Bright Grinding Rods
| Feature | Peeled Finish (Rough) | Bright Ground Finish (Precision) |
| Visual Appearance | Silver-Gray / Matte | Shiny / Reflective |
| Diameter Tolerance | Large (+/- 0.5mm) | Tight (e.g., h9: -0.052mm) |
| Surface Roughness | Ra 3.2 - 6.3 μm | Ra ≤ 0.8 μm |
| Straightness | Standard | High Precision |
| Price Point | Economical | Premium |
| Primary Use Case | Further Forging | CNC Machining |
Check the inventory and distinguish between Bright Grinding Rods and peeled Bar.
4. Three Questions to Ask Before Ordering
To optimize your procurement, our engineers recommend asking the following three questions:
What is the final part diameter?
If you are machining a 45mm part from 50mm bar stock, stripped bar stock is sufficient. If you are machining a 49.5mm part, you will need the precision of grinding the bar stock.
Does my machine tool use a bar feeder?
Automatic bar feeders require consistent diameter and straightness of the ground bar stock to prevent jamming and ensure high-speed operation.
Am I forging or machining?
Forging shops should almost always choose stripped bar stock to save on material costs, while machining shops will find that the higher price of ground bar stock can be offset by faster production speeds.
Click to get the latest export price for GH3030 round bars.
Why choose to source GH3030 bars from Gnee Steel?
As experts in nickel-based alloys, Gnee Steel offers:
✅️A full range of sizes: 10mm to 300mm, available in both peeled and ground finishes.
✅️Custom tolerances: We can grind bars to your micron-level precision requirements.
✅️In-house surface treatment: Because we handle the peeling and grinding processes ourselves, we can control product quality and surface finish from start to finish.
✅️Certification included: Each bar comes with a material testing certificate (EN 10204 3.1).
Gnee Steel GH3030 Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Steel GH3030 Product Packing
Contact us for the latest export price quote for GH3030 Alloy
FAQ
Q1: Can I get a "Black" (Hot Rolled) bar instead of a peeled one?
A: We usually recommend at least a Peeled Bar for superalloys like GH3030. Peeling reveals any surface inclusions that could ruin a forging or tool, acting as an extra layer of quality insurance.
Q2: What is the most common tolerance for GH3030 Ground Bars?
A: Most of our aerospace and medical clients request h9 or h10 tolerances. However, we can achieve h8 for high-precision applications.
Q3: How do you protect the finish on Bright Ground Bars during shipping?
A: Every Ground Bar is coated with anti-rust oil and individually sleeved in plastic tubing or wrapped in protective paper before being packed in reinforced wooden crates.
Q4: Is there a price difference for small quantities?
A: We offer competitive Wholesale pricing for bulk, but we also maintain a Large Stock of standard sizes for small, urgent orders with no minimum surface-treatment surcharge on stocked items.
