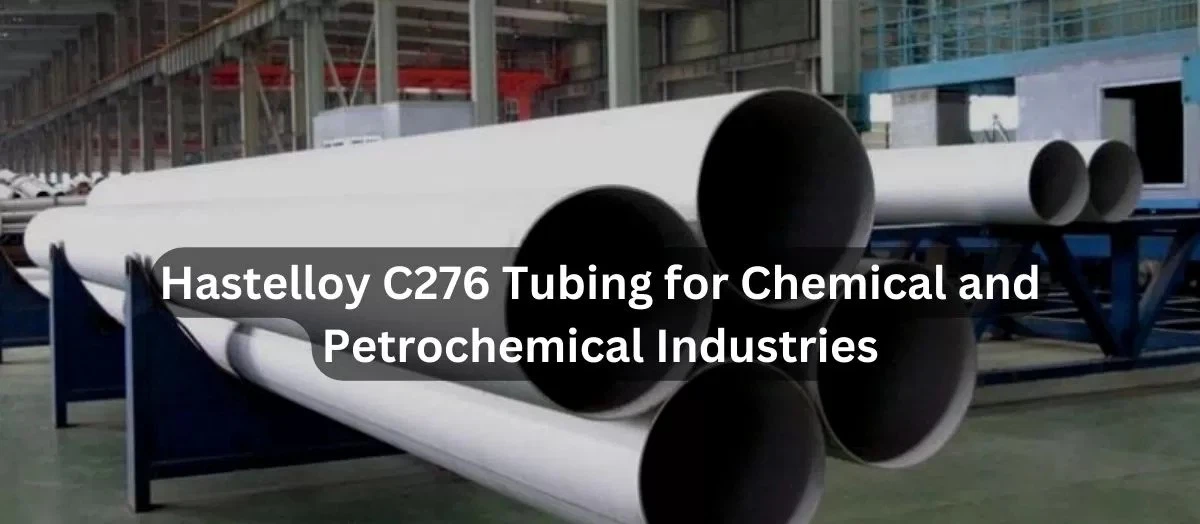

Hastelloy C276 pipes for chemical and petrochemical industries
Hastelloy C276 pipes are widely used in the chemical and petrochemical industries due to their excellent resistance to corrosion, oxidation, and high temperatures. These pipes are particularly suitable for transporting highly corrosive chemicals such as chlorine, acids, and various other corrosive media common in these industries.
Gnee Steel
What are the specifications for Hastelloy C276 pipe?
Hastelloy C276 pipe boasts a melting point of 1370°C. Hastelloy C276 seamless pipe has a minimum yield strength of 355 MPa and a minimum tensile strength of 790 MPa. The material also has a high density, weighing 8.89 grams per cubic centimeter.
Hastelloy Alloy C276 Pipes & Tubes Chemical Composition
| Element | Hastelloy C276 |
| Ni | Bal |
| C | 0.01 max |
| Mn | 1.0 max |
| Co | 2.5 max |
| S | 0.03 max |
| Si | 0.08 max |
| Cr | 14.5 – 16.5 |
| Mo | 15 – 17 |
| Fe | 4 – 7 |
| W | 3 – 4.5 |
| v | 0.35 max |
| P | 0.04 max |
Nickel Alloy C276 Pipes & Tubing Mechanical Properties
| Element | Hastelloy C276 |
| Density | 8.89 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | Psi – 1,15,000 , MPa – 790 |
| Yield Strength (0.2%Offset) | Psi – 52,000 , MPa – 355 |
| Elongation | 40 % |
| Hardness (Brinell) | - |
Industries and Applications
C-276 alloy is widely used in numerous industries, including chemical and petrochemical processing, oil and gas, power generation, pharmaceuticals, pulp and paper, and wastewater treatment. Its end uses include chimney linings, ducting, dampers, scrubbers, flue gas reheaters, heat exchangers, reactor vessels, evaporators, conveying piping, and many other highly corrosive applications.
Corrosion Resistance
C-276 alloy is one of the most versatile corrosion-resistant alloys currently available. It is suitable for environments ranging from moderately oxidizing to strongly reducing. C-276 alloy exhibits excellent corrosion resistance to sulfuric acid, hydrochloric acid, formic acid, acetic acid, chlorides, solvents, wet chloride gases, hypochlorites, and chlorine solutions. C-276 alloy exhibits excellent corrosion resistance at all temperatures below the boiling point and in phosphoric acid solutions with concentrations below 65%. In highly oxidizing environments, its limiting factor is its low chromium content, which means it is not ideal for high-temperature concentrated nitric acid environments.
C-276 alloy offers excellent resistance to pitting, stress corrosion cracking, and oxidation. Alloy C-276 also exhibits excellent resistance to seawater corrosion in crevice conditions, where seawater corrosion may cause erosive corrosion to other commonly used materials.
Gnee Steel specializes in the production and sale of various nickel-based alloys, including Nickel 201, Nickel 202, Hastelloy C-276, Hastelloy C-22, Hastelloy B, Hastelloy C-4, Inconel Alloy 600, Inconel 625, Inconel 718, Inconel X-750, Incoloy Alloy 800, Incoloy 800H/HT, Incoloy 825, Monel Alloy 400, Monel K500, and high-temperature alloys. Gnee Steel's products are widely used in aerospace, chemical, electric power, automotive, and nuclear energy applications. We also offer customized alloy solutions tailored to customer needs. For alloy pricing inquiries or customized alloy solutions, please contact us for a quote at ss@gneesteel.com.
