Incoloy 925 alloy plate is a nickel-chromium-molybdenum alloy designed to resist extreme corrosion conditions, pitting and crevice corrosion. This nickel steel alloy also exhibits unusually high recovery, tensile and creep-rupture properties at elevated temperatures. These nickel alloys have long-term use from cryogenics to 1200°F.

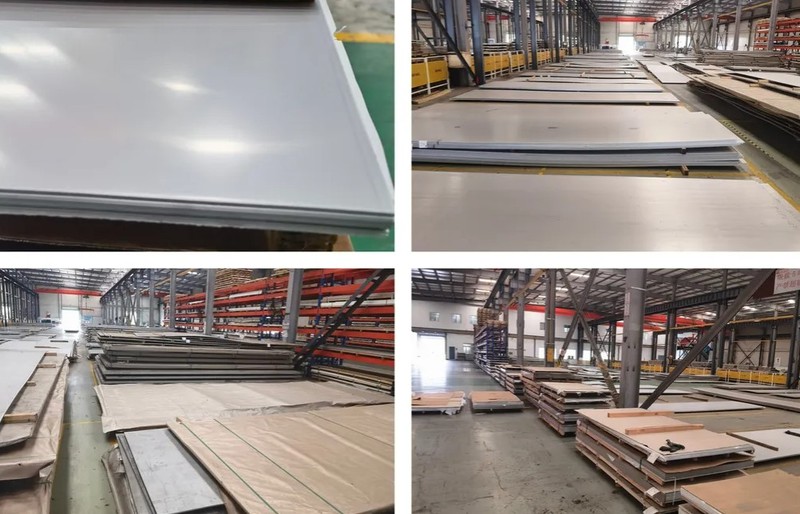

| Name | Incoloy 925 Stainless Steel Nickel Plate |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G Mirror finish | |
| Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
| Certificate | ISO9001-2008,ASME, PED |
| Delivery Time | 30-60Days, Depends on quantity |
Incoloy 925 alloy Chemical composition
|
C |
Al |
Si |
P |
S |
Ti |
Cr |
Mn |
Fe |
Ni |
Cu |
Nb |
Mo |
|
0.03 max |
0.1 - 0.5 |
0.5 max |
0.03 max |
0.03 max |
1.9 - 2.4 |
19.5 - 22.5 |
1.0 max |
22.0 min |
42.00-46.00 |
1.5 - 3.0 |
0.5 max |
2.5 - 3.5 |
925 alloy Mechanical properties
|
Tensile Strength (ksi) |
0.2% Yield Strength (ksi) |
Elongation% in 2 inches |
|
85 |
35 |
30 |
Incoloy 925 Physical properties
|
|
Units |
Temperature in°C |
|
Density |
8.14 g/cm³ |
Room |
|
Specific Heat |
0.105 Kcal/kg.C |
Room |
|
Melting Range |
1370 - 1400 °C |
- |
|
Modulus of Elasticity |
196 KN/mm² |
20° |
|
Electrical Resistivity |
113 µΩ.cm |
25° |
|
Coefficient of Expansion |
14.1µm/m °C |
25 - 100° |
|
Thermal Conductivity |
11.1 W/m -°K |
25° |
Incoloy 925 Applications
This superalloy is used in a variety of industries such as aerospace, chemical processing, marine engineering, pollution control equipment, and nuclear reactors.
