Nickel 200 Alloy
Approximate grades: NO2200, Nickel200, Ni200, N6
Certification: ISO9001:2015
Alloy category: pure nickel alloy
Substrate shape: wire/strip/rod/tube/plate
Implementation standard: GB/T5235
Application areas: industrial field, marine ships
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Nickel 200, also known as Ni 200, Alloy 200, UNS N02200 or W.Nr. 2.4066, is a commercially pure wrought nickel alloy containing at least 99.6% pure nickel.
Key Features
Nickel 200 also has high thermal and electrical conductivity and exceptional resistance to a variety of corrosive environments, including acids and bases.
Nickel Alloy 200 Applications
Suitable for a wide range of applications in a variety of industries such as chemical, electronics, aerospace and power generation. Widely used in the manufacture of parts requiring corrosion resistance and high thermal stability.
High temperature resistant Nickel Alloys 200 Specification
Alloys 200 Mechanical Properties
| Tensile Strength | 380 MPa (55,000 psi) minimum |
| Yield Strength | 105 MPa (15,000 psi) minimum |
| Elongation | 30% minimum (in 2-inch gauge length) |
| Hardness | HRB 45-70 (Typical) |
Nickel Alloys 200 Physical Properties
| Density | 8.89 g/cm³ |
| Melting Range | 1446°C (2635°F) |
| Thermal Conductivity | 70.2 W/m·K (at 20°C) |
| Electrical Resistivity | 9.6 μΩ·m (at 20°C) |
| Modulus of Elasticity | 204 GPa (29.6 x 10^6 psi) |
Nickel 200 Chemical Composition (% by weight)
| Element | Min | Max |
|---|---|---|
| Ni | 99 | - |
| Fe | - | 0.4 |
| Mn | - | 0.35 |
| C | - | 0.15 |
| Cu | - | 0.25 |
| Si | - | 0.35 |
| S | - | 0.01 |

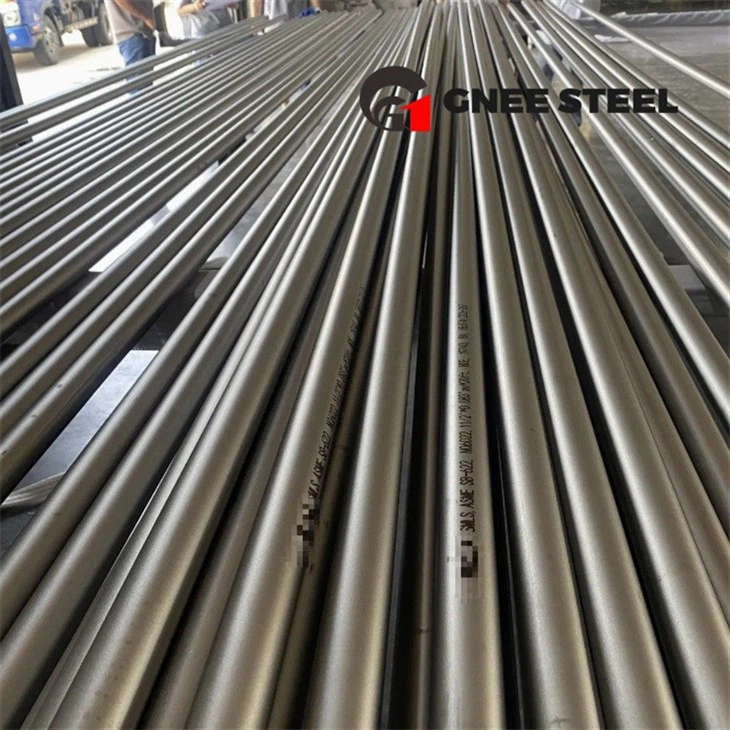

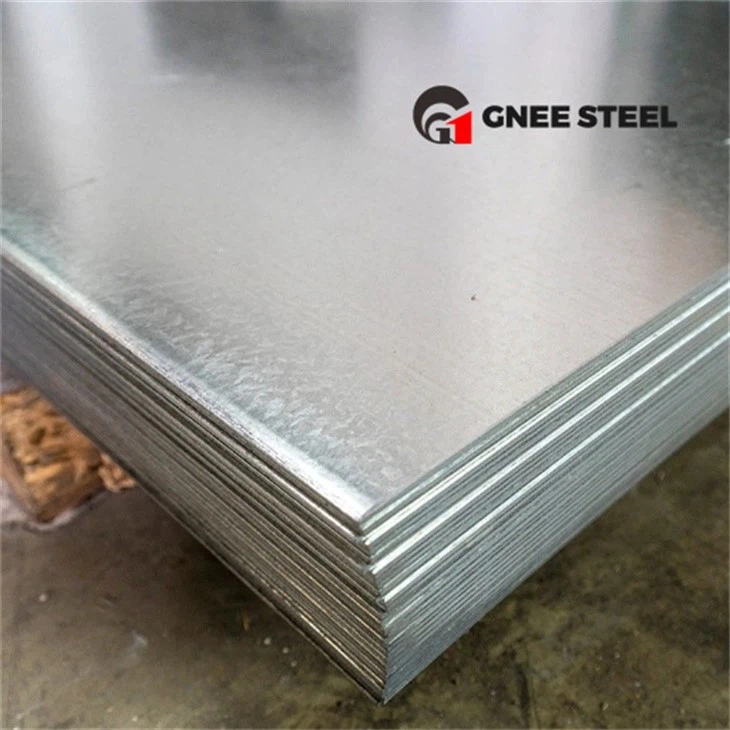

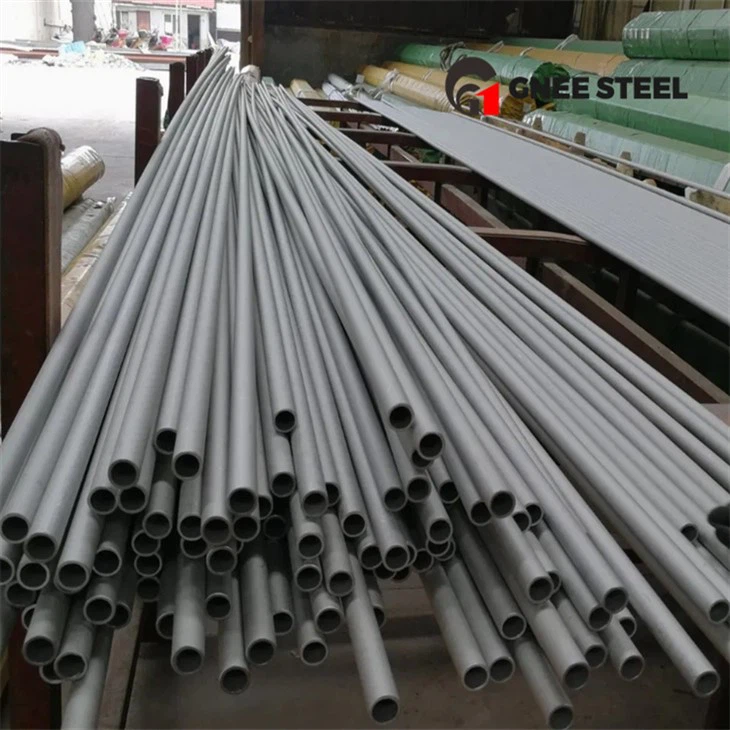

Nickel Alloys 200 Products Display
nickel based superalloys 200

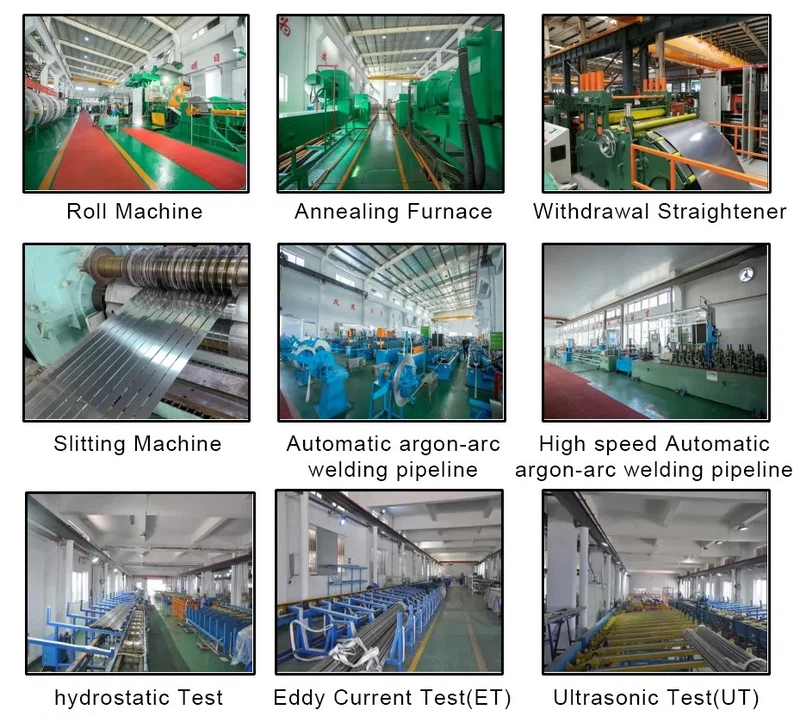

Why choosing GNEE
GNEE has newly invested in a special alloy cold-rolled tube production system, which has the production capacity of a complete set of production lines from heating, rolling, pickling, and rolling to produce high-temperature alloys, nickel-based alloys, austenitic stainless steel, super stainless steel, and duplex steel.
please contact us for a quote! ss@gneesteel.com

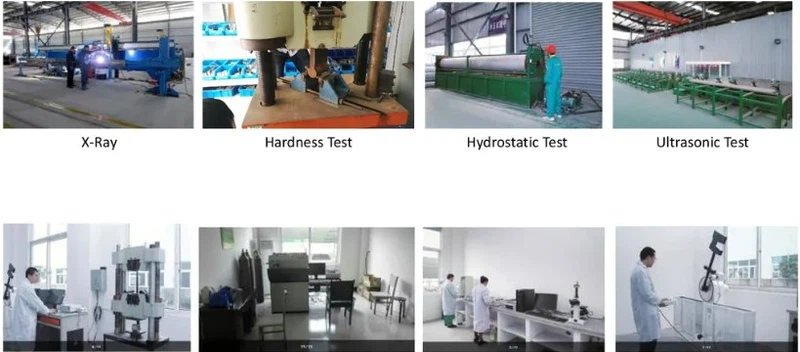

PRODUCTS TESTING
nickel 200 Alloy Manufacturer
superalloys 200 pipe Supplier, Stockist
FAQ
1.Q.How can I trust you?
A. We think honesty is the core of our company, you can come to know it personally so that you can check our credit.
2. Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!
3.Q: How do your guarantee the quality?
A: Before mass production, there must be pre-production samples; before shipment, there must be final inspection.
