K4002(MAR-M002) High Temperature Alloy
GNEE Group offers Nickel Alloy K4002(MAR-M002) in a variety of forms, including:
Bars
Sheets
Forgings
Tubes
Flanges
Seamless and Welded Pipes
Welding Rods
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of k4002(mar-m002) high temperature alloy in China. If you're going to wholesale high quality k4002(mar-m002) high temperature alloy made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
GNEE K4002(MAR-M002) High Temperature Alloy introduce
K4002(MAR-M002) High Temperature Alloy
K4002 is a nickel-based precipitation hardening equiaxed crystal casting high-temperature alloy. Its service temperature is below 1000℃. The medium and high temperature performance level of this alloy belongs to the highest level among the existing equiaxed crystal casting nickel-based high-temperature alloys. The alloy has stable structure, good resistance to high-temperature oxidation and heat corrosion. The performance of parts sampling is close to that of single casting samples, and the dispersion of performance data is small. The alloy has good casting process performance, but because it contains more tungsten, tantalum and hafnium elements, it has a higher density than other equiaxed crystal casting nickel-based high-temperature alloys. It is suitable for making turbine rotor blades and integrally cast turbine disks working below 1000℃.
| Category | Type | Steel grade | Standard | Country |
|---|---|---|---|---|
| Grades | Special Alloy | K4002 | GBT | China |
| Product type | Products | Dimension | Processes | Deliver Status |
|---|---|---|---|---|
| Plates/Sheets | Plates/Sheets | 0.08-200mm(T)*W*L | Forging,hot rolling and cold rolling | Annealed,Solution and Aging,Q+T,ACID-WASHED,Shot Blasting |
| Steel Bar | Round Bar,Flat Bar,Square Bar | Φ8-1200mm*L | Forging,hot rolling and cold rolling,Cast | Black,Rough Turning,Shot Blasting, |
| Coil/Strip | Steel Coil/Steel Strip | 0.03-16.0x1200mm | Cold-Rolled&Hot-Rolled | Annealed,Solution and Aging,Q+T,ACID-WASHED,Shot Blasting |
| Pipes/Tubes | Seamless Pipes/Tubes,Welded Pipes/Tubes | OD:6-219mm x WT:0.5-20.0mm | Hot extrusion,Cold Drawn,Welded | Annealed,Solution and Aging,Q+T,ACID-WASHED |
GNEE K4002(MAR-M002) High Temperature Alloy Specification
K4002(MAR-M002)Alloy Chemical Composition (% by Mass)
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.15 |
| Silicon (Si) | ≤ 0.20 |
| Manganese (Mn) | ≤ 0.20 |
| Sulfur (S) | ≤ 0.015 |
| Chromium (Cr) | 9.00 - 11.00 |
| Nickel (Ni) | 52.815 - 60.825 |
| Hafnium (Hf) | 1.25 - 1.75 |
| Cobalt (Co) | 9.00 - 11.00 |
| Tungsten (W) | 9.00 - 11.00 |
| Aluminium (Al) | 5.25 - 5.75 |
| Copper (Cu) | ≤ 0.10 |
| Titanium (Ti) | 1.25 - 1.75 |
| Iron (Fe) | ≤ 1.00 |
| Tantalum (Ta) | 2.25 - 2.75 |
| Zirconium (Zr) | ≤ 0.50 |
| Boron (B) | 0.010 - 0.020 |
GNEE K4002(MAR-M002) High Temperature Alloy Schedule
GNEE Common Sizes of K4002 High-Temperature Alloy Pipes
| Parameter | Common Specifications | Remarks |
|---|---|---|
| Outer Diameter (OD) | 6 mm - 300 mm | Standard size range, suitable for most applications |
| Custom OD Available | Custom sizes available | Can be tailored to customer requirements |
| Wall Thickness (WT) | 1 mm - 20 mm | Standard wall thickness range |
| Custom WT Available | Custom thickness available | Can be made thinner or thicker as required |
| Length | 1000 mm - 6000 mm (Standard) | Suitable for regular processing and use |
| Custom Length Available | Custom lengths available | Can be tailored to customer requirements |

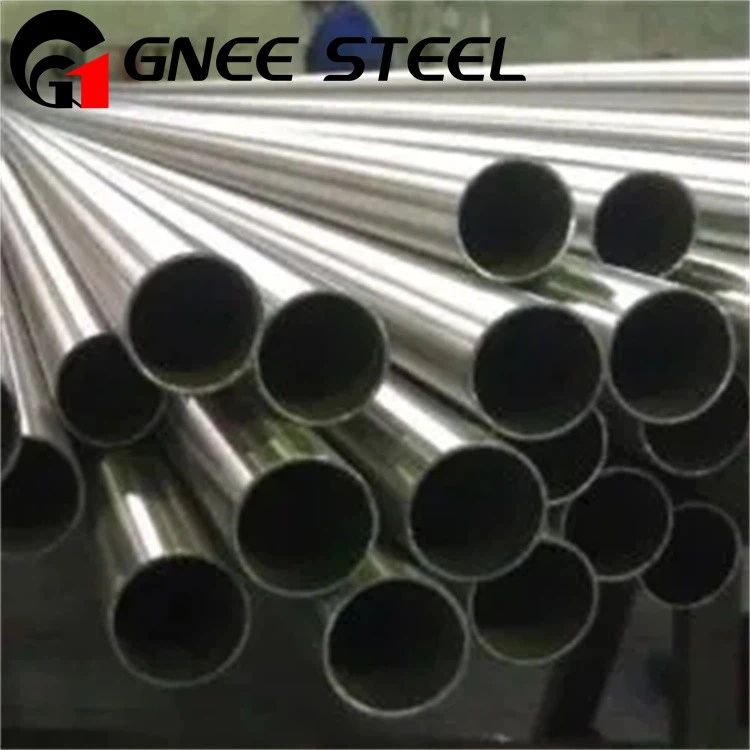

K4002(MAR-M002) High Temperature Alloy Pipe
GNEE Common Sizes of K4002 High-Temperature Alloy Plates
| Parameter | Common Specifications | Remarks |
|---|---|---|
| Thickness | 0.5 mm - 5 mm (Thin Plate) | Suitable for precision parts or special applications |
| 5 mm - 50 mm (Standard Thickness) | Suitable for most industrial applications | |
| 50 mm and above (Thick Plate) | Used for heavy-duty equipment or high-load components | |
| Width | 500 mm - 1200 mm | Meets most processing requirements |
| Custom Width Available | Custom widths available | Can be tailored to customer needs |
| Length | 1000 mm - 3000 mm (Standard) | Suitable for regular processing and use |
| Custom Length Available | Custom lengths available | Can be customized based on customer requirements |

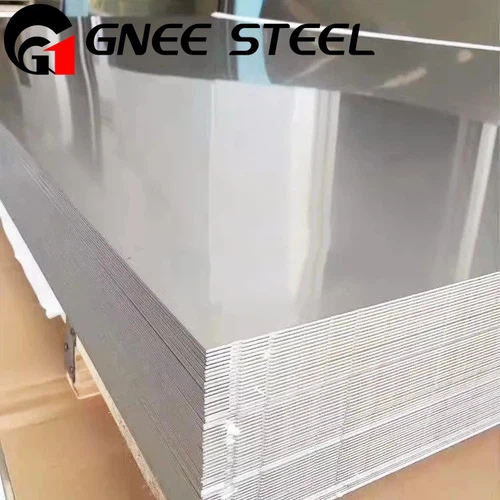

K4002(MAR-M002) High Temperature Alloy Sheet
GNEE Common Sizes of K4002 High-Temperature Alloy Bars
| Parameter | Common Specifications | Remarks |
|---|---|---|
| Diameter | 5 mm - 200 mm | Standard diameter range, suitable for most applications |
| Custom Diameter Available | Special sizes can be customized | Can be tailored to customer requirements |
| Length | 1000 mm - 3000 mm (Standard) | Suitable for regular processing and use |
| Custom Length Available | Custom lengths available | Can be adjusted based on customer requirements |
K4002(MAR-M002) High Temperature Alloy Bar
GNEE Group Factory Environment
GNEE Group Factory Environment

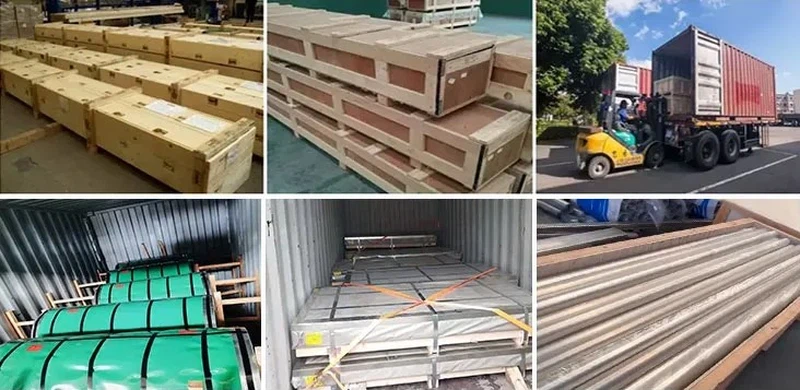

GNEE Group Packaging
GNEE Group Packaging
GNEE Group Testing
GNEE Group Testing
FAQ
Q: What are the advantages of your company?
A: We have many professionals, technicians, more competitive prices and the best after-sales service than other stainless steel companies.
Q: How many countries have you exported to?
A: Exported to more than 50 countries, mainly from the United States, Russia, the United Kingdom, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q: Can you provide samples?
Answer: Yes. As long as you contact us, we can provide free small samples in stock. Customized samples will take about 5-7 days.
