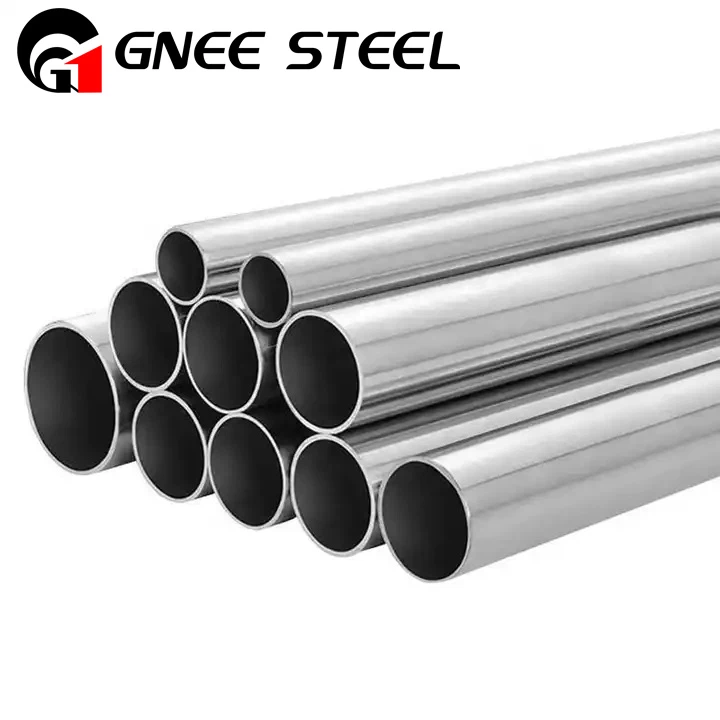

ASME SA 249 TP 321 Welded Stainless Steel Tubing
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Super Alloy (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of asme sa 249 tp 321 welded stainless steel tubing in China. If you're going to wholesale high quality asme sa 249 tp 321 welded stainless steel tubing made in China, welcome to get free sample from our factory. Good service and reasonable price are available.
GNEE Steel is a distinguished exporter, supplier and manufacturer of ASTM A249 Stainless Steel 321 Welded Tubes in China. Also referred as WNR 1.4541 Welded Tubes, we also offer these Alloy 321 Welded Tubes at customizes sizes and shapes too our esteemed clients according to their requirements.
ASTM SA 249 TP321 Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Other | |
| 321 | min. max |
– 0.08 |
2.00 | 0.75 | 0.045 | 0.030 | 17.0 19.0 |
– | 9.0 12.0 |
0.10 | Ti=5(C+N) 0.70 |
ASTM A249 TP321 Stainless Steel Welded Tube Physical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 321 | 515 | 205 | 40 | 95 | 217 |
ASTM A249 SS 321 Welded Tube Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 321 | 515 | 205 | 40 | 95 | 217 |
ASTM A249 TP321 Stainless Steel Tube Specification
Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Grades: TP304, TP304L, TP304H
Size: 1/8" NB to 5" NB, 1/4" OD to 5" OD sizes stainless steel seamless tubes also available
Length: Up to 6 meters, custom cut lengths
Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Finish: No.1 Pickled Finish, No.4 finish, BA Finish
Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
CUSTOMER VISIT
GNEE Steel Group is China's professional one-stop supply chain enterprise for steel products. Its stainless steel pipe production technology has reached the world's average technical level. It has been recognized by dozens of project companies and has become a star enterprise in Asia.
Hot Tags: asme sa 249 tp 321 welded stainless steel tubing, China asme sa 249 tp 321 welded stainless steel tubing suppliers, alloy ss pipe, , inconel alloy ss tubing,
