For engineers in the aerospace, energy, and petrochemical industries, the biggest challenge in welding GH4169 steel pipe lies in the integrity of the weld and heat-affected zone (HAZ). During welding, extremely high temperatures can lead to:
Heat-affected zone softening: The strengthening phase dissolves, resulting in a significantly lower strength in the weld area compared to the base metal.
Strain-aging cracking: Residual stresses from welding can cause spontaneous cracking during the cooling phase or initial high-temperature service.
Pressure burst risk: Under high-pressure cycling, insufficiently strong welds are highly susceptible to bursting accidents.
At Gnee Steel, we are committed to eliminating these risks. Our ASME SB168 GH4169 welded steel pipe is not simply manufactured; it undergoes a proprietary double-aging process to ensure the weld area achieves the same structural integrity as the base metal.
Get a quote for GH4169 heat-treated pipes now

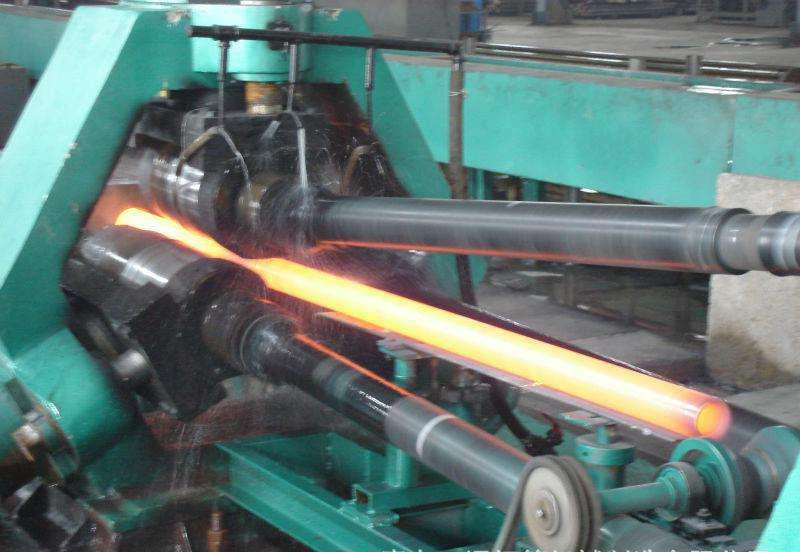

ASME SB168 GH4169 Heat Treatment Process for Welded Steel Pipes
ASME SB168 GH4169 Heat Treatment Process for Welded Steel Pipes
ASME SB168 GH4169 (Inconel 718) welded pipe requires a two-stage aging heat treatment to optimize high-temperature strength and restore the toughness of the heat-affected zone (HAZ). The standard treatment method is as follows: first, aging at 720°C for 8 hours, then furnace cooling to 620°C and holding at that temperature for 8 hours, and finally air cooling.
What is GH4169 equivalent to?
Inconel 718

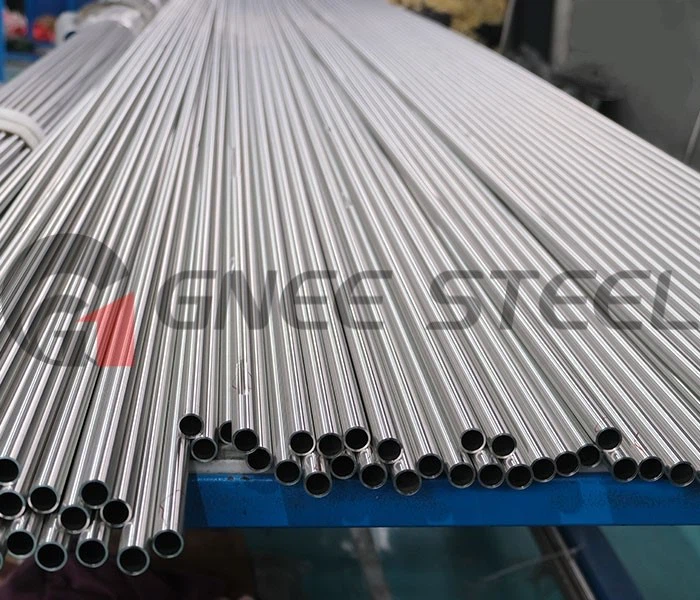

GH4169 (equivalent to the American brand Inconel 718) is a precipitation-hardening nickel-based superalloy widely used in the aerospace industry due to its excellent mechanical properties (Lu et al., 2014).
1. GH4169 Pipe Technical Specifications and Scope of Supply
| Feature | Specification Details | Industrial Advantage |
| Standard | ASME SB168 / ASTM B168 | International pressure vessel compliance. |
| Designation | GH4169 / UNS N07718 | Direct global equivalency to Alloy 718. |
| Outside Diameter | 150mm to 1200mm | Ideal for heavy-duty exhaust & ducting. |
| Wall Thickness | 2.0mm to 30.0mm | High-pressure rated structural support. |
| Surface Finish | Pickled, Polished, or BA | Ready for precision aerospace assembly. |
2. ASME SB168 GH4169 Pipe Chemical Composition (by weight)
| Element | Content (%) | Standard Requirement | Function |
|---|---|---|---|
| Nickel (Ni) | 50.0 – 55.0 | 50.0 – 55.0 | Matrix element; provides corrosion resistance and high-temperature stability |
| Chromium (Cr) | 17.0 – 21.0 | 17.0 – 21.0 | Oxidation and corrosion resistance |
| Iron (Fe) | Balance (~18-20) | Balance | Fe-Ni-Cr base alloy |
| Niobium (Nb) | 4.75 – 5.50 | 4.75 – 5.50 | Primary γ″ strengthening element – critical for strength after heat treatment |
| Molybdenum (Mo) | 2.80 – 3.30 | 2.80 – 3.30 | Solid-solution strengthening; enhances pitting and creep resistance |
| Titanium (Ti) | 0.65 – 1.15 | 0.65 – 1.15 | Forms γ′ strengthening phase (Ni₃(Al,Ti)) |
| Aluminum (Al) | 0.20 – 0.80 | 0.20 – 0.80 | Forms γ′ strengthening phase |
| Carbon (C) | ≤ 0.08 | ≤ 0.08 | Low carbon for weldability |
| Manganese (Mn) | ≤ 0.35 | ≤ 0.35 | Deoxidizer |
| Silicon (Si) | ≤ 0.35 | ≤ 0.35 | Deoxidizer |
| Phosphorus (P) | ≤ 0.015 | ≤ 0.015 | Ensures toughness |
| Sulfur (S) | ≤ 0.015 | ≤ 0.015 | Ensures hot workability |
| Boron (B) | 0.002 – 0.006 | 0.002 – 0.006 | Grain boundary strengthener |
| Cobalt (Co) | ≤ 1.00 | ≤ 1.00 | Residual element |
| Copper (Cu) | ≤ 0.30 | ≤ 0.30 | Residual element |
Click to download the GH4169 alloy PDF file now
3. Physical properties of GH4169 welded pipe (after heat treatment)
| Property | Value | |
|---|---|---|
| Density | 8.19 g/cm³ | |
| Melting Range | 1260 – 1336°C | |
| Thermal Conductivity (20°C) | 11.4 W/m·K | |
| Thermal Conductivity (500°C) | ~16.0 W/m·K | |
| Coefficient of Thermal Expansion (20-100°C) | 13.0 × 10⁻⁶/°C | |
| Coefficient of Thermal Expansion (20-600°C) | ~14.5 × 10⁻⁶/°C | |
| Specific Heat (20°C) | 435 J/kg·K | |
| Modulus of Elasticity (20°C) | ~200 GPa | |
| Poisson's Ratio | 0.29 – 0.30 | |
| Magnetic Permeability | ~1.005 (slightly magnetic) |
4. GH4169 pipe double aging heat treatment process
| Process Stage | Temperature Range | Duration | Metallurgical Purpose |
| Solution Anneal | 940°C - 1010°C | 1 - 2 Hours | Relieves weld stress & dissolves brittle phases. |
| Primary Aging | 718°C (1325°F) | 8 Hours | Controlled precipitation of
γ′′γ′′ (Gamma Double Prime). |
| Secondary Aging | 621°C (1150°F) | 8 Hours | Final matrix stabilization for peak yield strength. |
This process ensures that the hardness of the entire pipe is uniformly 36-44 HRC, maximizing its industrial durability and fatigue life.
5. GH4169 pipe quality assurance
As a Tier-1 Manufacturer, we understand that "good enough" is not an option for high-pressure service. We provide total Zero-Leakage certainty through rigorous NDT testing:

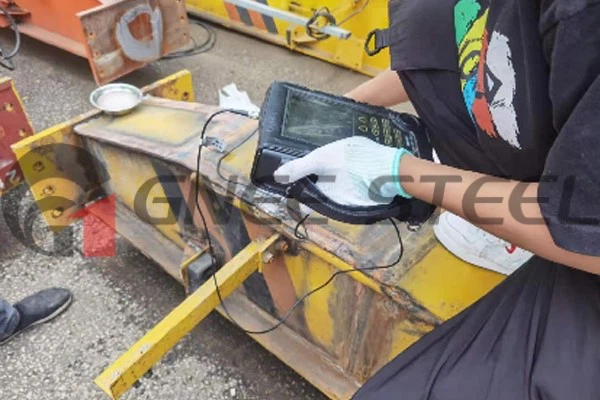

100% Radiographic Testing (RT): Every inch of the weld seam is X-ray inspected to ensure zero porosity, slag inclusions, or lack of fusion.

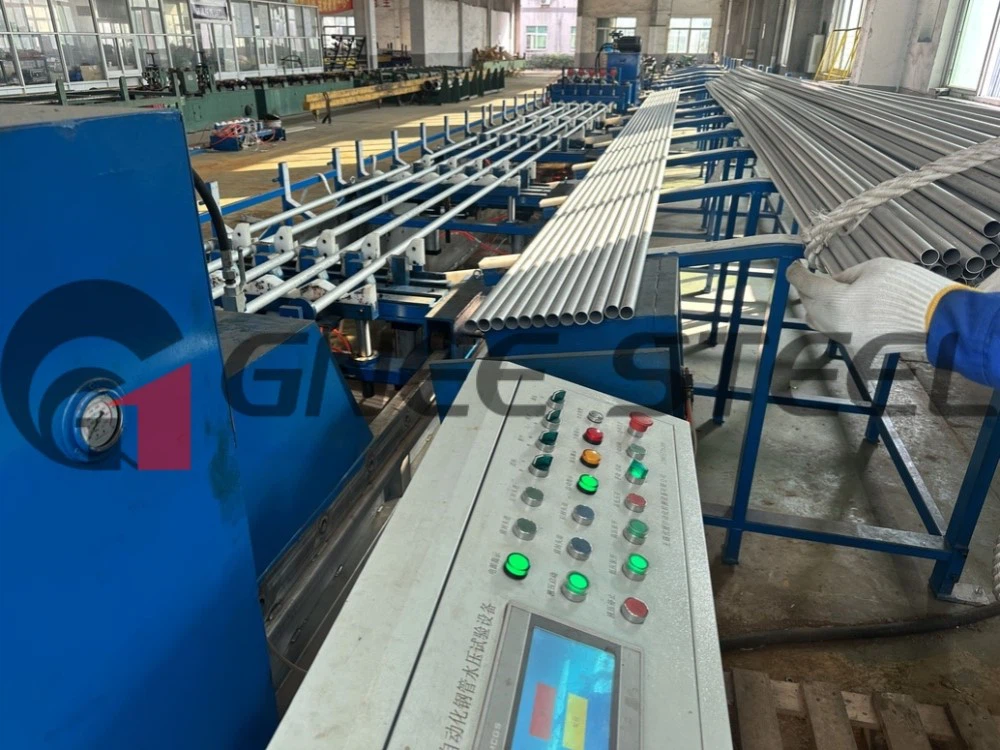

Hydrostatic Pressure Testing: Every pipe is tested up to 200 Bar (2900 PSI) to verify its safety under extreme operating loads.

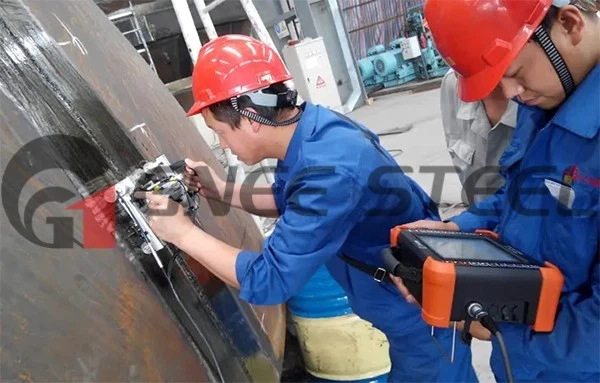

Dye Penetrant Inspection (FPI): Scans for microscopic surface stress cracks that traditional inspections might miss.
MTC 3.1 Traceability: Full EN 10204 compliance documenting the exact chemical heat analysis and heat treatment chart.
